Place of Origin:
Guangdong Zhongshan China
Brand Name:
TOUPACK
Model Number:
TY-1A-214-LG2
video
video

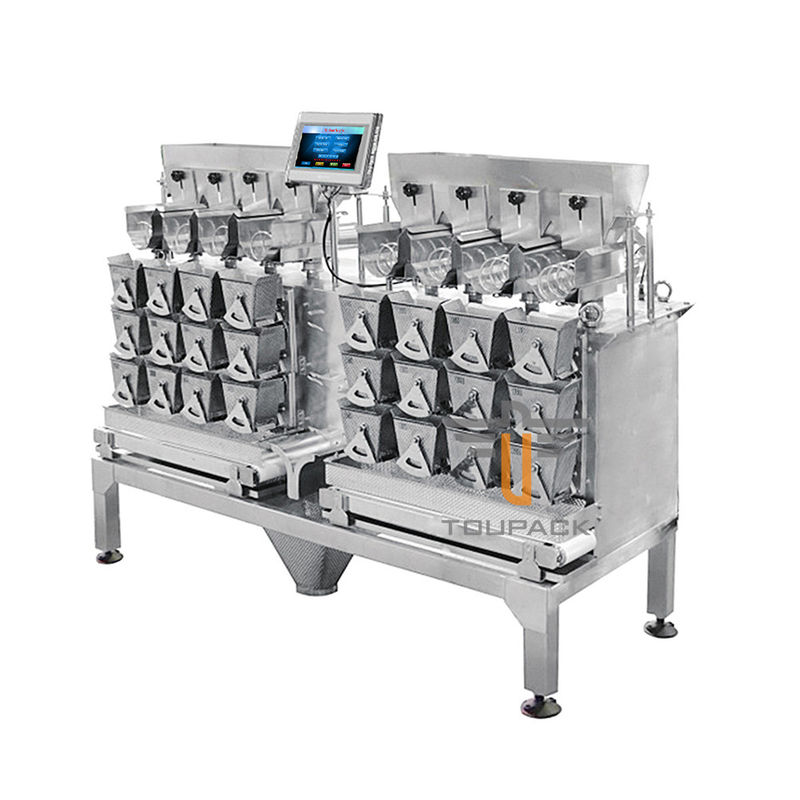

Two tier 10/14 head Screw weigher for sticky or crispy products (meat, kimchi)
Application:
Applicable for fast weighing of sticky or crispy products, such as kimchi, chocolate, biscuit, meat loaf, ribs, etc.
Main Function & Features:
1．“Scraping” mechanical design to effectively solve the problem of weighing sticky and oily products, like spicy small fish, spicy beef jerky and dried spicy beancurd, etc.
2. Screwing hopper doors to ensure product discharge without any blockage.
3. Screwing feeding system to ensure smooth discharge.
4. Product collection in final belt conveyor to bring faster and more effective conveying.
5. Both hoppers and feeding chutes are dismountable for easy cleaning and maintenance.
6. IP 65 dust and water proof design.
7. High precision MCU control system to maintain high weighing speed.
Specifications:
|
Model |
TY-1A-SZ-M1013-101；TY-1A-SZ-M1413-101 |
| Max. Weighing (one hopper) | 1,000g |
| Accuracy | x (0.5) |
| Min. Scale Interval | 0.1g |
| Max. Speed | 45 WPM |
| Hopper Volume | 1.3L |
| Control System | MCU |
| HMI | 7”/ 10” color touch screen |
| Power Supply | AC220V ±10% 50HZ/60HZ, 1.5KW |
| Packing Dimension | 2,310(L)*889 (W)* 1,500(H)mm |
| Net Weight | 338kg |
| Package weight | 437kg |
