Place of Origin:
Guangdong Zhongshan China
Brand Name:
TOUPACK
Model Number:
TY-RP200

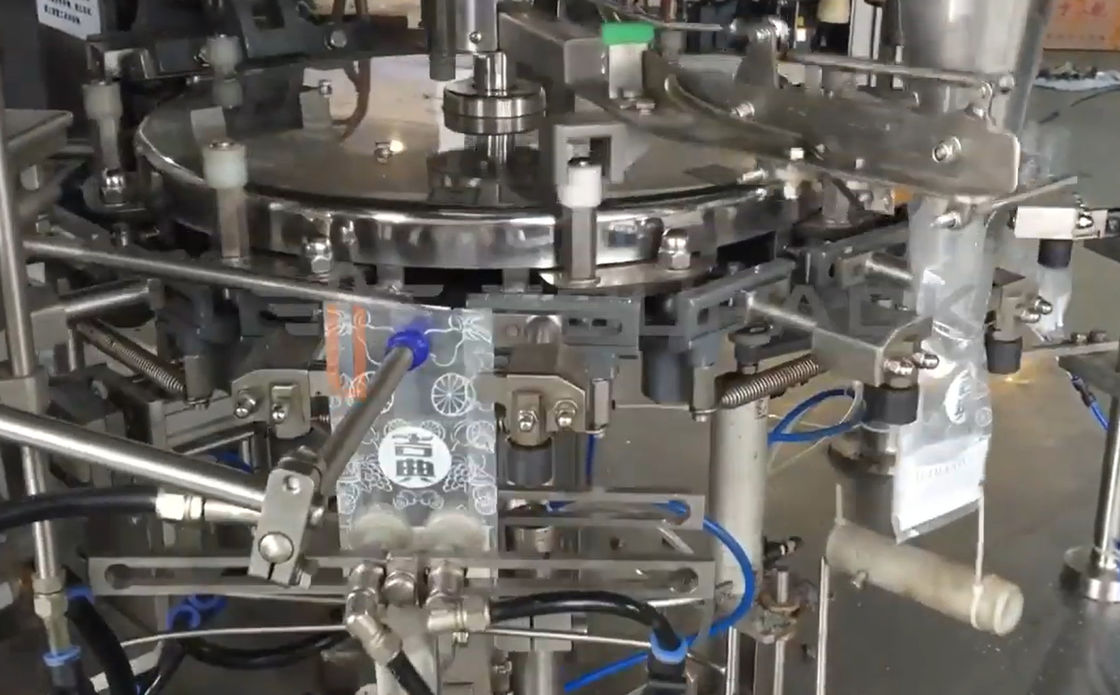

Rotary Automatic Wrapping Bagging Machine For Candy Pack
Application Range:
The bag-type automatic packaging machine replaces manual packaging, and realizes packaging automation for large enterprises and small and medium-sized enterprises. The operator only needs to put the finished bags one by one, and put hundreds of bags in the bag picking department of the equipment at a time. , The mechanical claw of the equipment will automatically take the bag, print the date, open the bag, give a signal to the measuring device, and blank, seal, and output.
Specification:
| Model | TY-RP200 | TY-RVP200 |
| Packaging Speed | 30~50 bpm | 50 bpm |
| Bag Size | 100-160(L)*100-230(W)mm | 100-180(L)*120(W)mm |
| Packaging Weight | 1-1.5kg | 1-2kg |
| Sealing Type | reticulate pattern sealing; double zipper sealing | reticulate pattern sealing; double zipper sealing |
| Powder Supply | 3 phase 380V 50HZ, 3KW | 3 phase 380V 50HZ, 5KW |
| Air Consumption | 5-8kgf/cm²; 0.4m³/min | 0.6m³/min |
| Bag Type | flat bag, stand-up bag, zipper bag | flat bag, stand-up bag, zipper bag, paper bag, etc. |
| Net Weight | 1,600kg | 1,800kg |
| Machine Dimension | 1,550(L)*1,350(W)*1,400(H)mm | 1,480(L)*1,320(W)*1,510(H)mm |
