Name: High Speed Mini Doypack Premade Pouch Packing Machine With Zipper Stainless Steel
Brand: GUANGDONG TOUPACK INTELLIGENT EQUIPMENT CO., LTD
SKU: TY-DP430 mini doypack machine
Price: 7,500.00 USD
Availability: InStock

Home > products > Premade Pouch Packing Machine >

High Speed Mini Doypack Premade Pouch Packing Machine With Zipper Stainless Steel

Stand Up Mini Doypack Machine

Premade Stand Up Packing Machine

Zipper Doypack Packaging Machine

Place of Origin:

Guangdong Zhongshan China

Brand Name:

TOUPACK

Certification:

Model Number:

TY-DP430 mini doypack machine

Request A Quote

Product Details

Packaging Speed::

5-30 Bpm

Bag Size::

100-430(L)*80-300(W)mm

Sealing Type::

Straight Grain Pouch

Bag Type::

Stand Up Pouch, Premade Pouch, Zipper Bag, Gusset Bag, Falt Bottom Punch

Air Consumption::

5-8kgf/cm²; 0.4m³/min

Type:

Stand Up Pouch Mini Doypack Machine

Function:

Filling, Sealing, Printing

Material:

Stainless Steel 304 Premade Doypack

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

wooden case

Delivery Time

10-25 working days

Payment Terms

T/T, L/C

Supply Ability

30set per month

Solid Granule Food Bag Premade Pouch Packing Machine

Get Best Price

Work Station 8 Rotary Vacuum Premade Pouch Packing Machine

Get Best Price

Rotary Chips Biscuit Premade Pouch Packing Machine

Get Best Price

10bpm Intelligent Rotary Vacuum Bag Packaging Machine Quick Response

Get Best Price

Contact Now

Product Description

High Speed Mini Doypack Premade Pouch Packing Machine With Zipper Stainless Steel

Product Specifications

Attribute	Value
Packaging Speed	5-30 bpm
Bag Size	100-430(L)*80-300(W)mm
Sealing Type	Straight grain pouch
Bag Type	Stand up pouch, Premade pouch, Zipper bag, gusset bag, flat bottom pouch
Air Consumption	5-8kgf/cm²; 0.4m³/min
Type	Stand Up Pouch Mini Doypack Machine
Function	Filling, sealing, printing
Material	Stainless steel 304 premade doypack

Product Overview

Stand Up Pouch Mini Doypack Machine / Premade Doypack with Zipper / Stainless steel For Granule Salt Nuts Chips Snack Beans Grain Biscuit Food

Key Features

Easy to operate with simple bag replacement
Low maintenance cost
Self-diagnosis function for failed bag opening (reusable bags)
Positioning (anti-dropping) function of hopper
Warning systems for cartridge heater and cylinder faults

Technical Specifications

No	Feature	Description
1	Pouch material	Multilayer composite Premade Bag (e.g., PET/PE)
2	Pouch type	3 side seal bag, stand up pouch, zipper bag, flat bottom pouch
3	Size range	80mm≤W≤300mm 100mm≤L≤430mm
4	Speed	0-15 bags/min
5	Sealing type	Straight grain, pitch is 1mm (Optional reticulate)
6	Sealing width	10mm (5-20mm customizable)
7	Power supply	220V, Single-phase, 50/60HZ, 1.2KW
8	Air pressure	0.65Mpa
9	Air consumption	0.3m³/min (Standard machine)
10	Packaging dimension	18606001650mm (Export non-fumigation wooden case)

Pouch Types

Working Process

giving bag → coding → opening → filling 1 → filling 2 → auxiliary → exhaust → heat sealing → forming and output product

Applications

Block material: bean curd cake, fish, eggs, candy, cereal, chocolate, biscuit, peanut
Granular type: granular drug, capsule, seeds, chemicals, sugar, nut, pesticide, fertilizer
Powder type: milk powder, glucose, seasoning, washing powder, chemical materials
Liquid type: detergent, beverages, sauces, peanut butter, jam
Other bagging materials

Compatible Equipment

Elevators: inclined elevator, Z type elevator, bowl elevator, single bucket elevator
Filling machines: multihead weigher, linear weigher, auger filler
Working platforms: adjustable platform, simple platform
Exit conveyor / Check weigher / metal detector / Rotable table

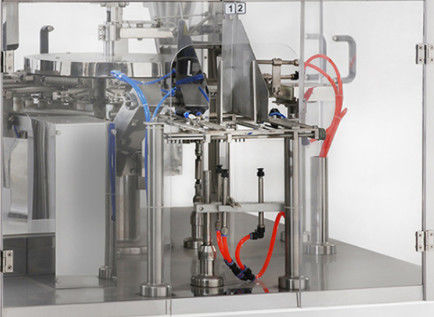

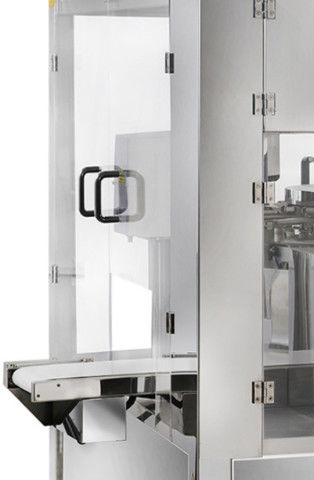

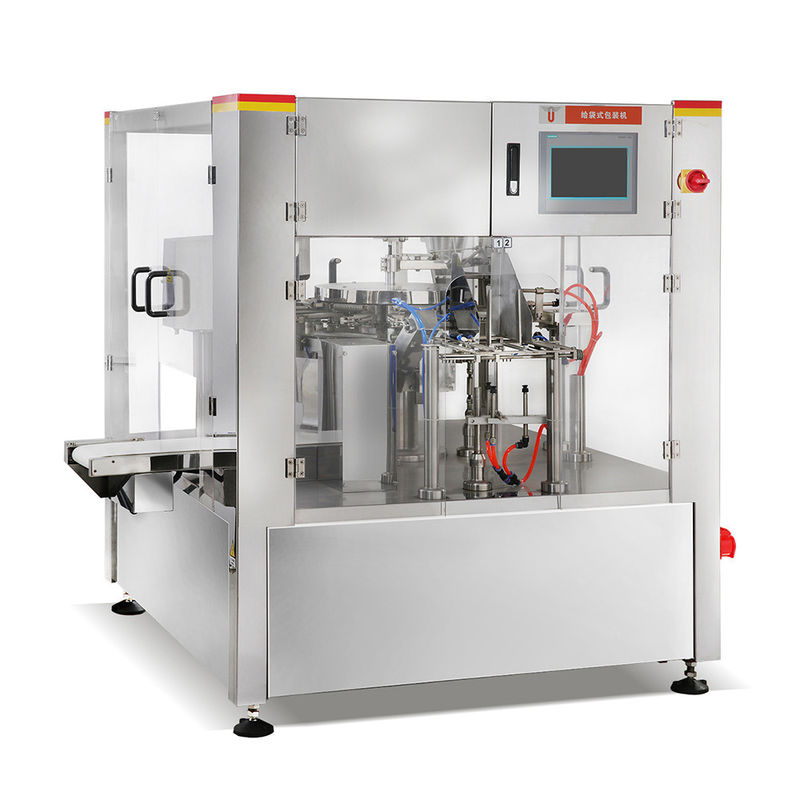

Product Images
