304SUS Bucket Elevator Conveyor Maize Mill Coffee Bean Mobile Vertical Z Type With Vibration Feeder

304SUS Bucket Elevator Conveyor

Bucket Elevator Conveyor Vertical Z Type

Place of Origin:

China

Brand Name:

TOUPACK

Certification:

CE,ISO9001

Request A Quote

304SUS Bucket Elevator Conveyor Maize Mill Coffee Bean Mobile Vertical Z Type With Vibration Feeder

Product Details

Usage:

Material Transimission

Feature:

Easy Cleanliness

Application:

Food

Certification:

After Warranty Service:

Online Support

Online Support:

Vertical Bucket Elevator

Core Components:

Motor, Bearing, Vertical Conveyor

Structure:

Chain Conveyor

Payment & Shipping Terms

Minimum Order Quantity

1 set

Packaging Details

Wooden case

Delivery Time

According to the actual situation

Payment Terms

L/C, T/T

Z Type Bucket Elevator Conveyor

Get Best Price

Inclined Bucket Elevator Conveyor

Get Best Price

Food Grade Pvc Texture Conveyor Belt Production Line Bags Or Bulk Materials Conveyor Belt System

Get Best Price

30 45 90 180 Degrees Stainless Steel Conveyor Belt Conveyer Turning Belt Machine For Different Industries

Get Best Price

Contact Now

Product Description

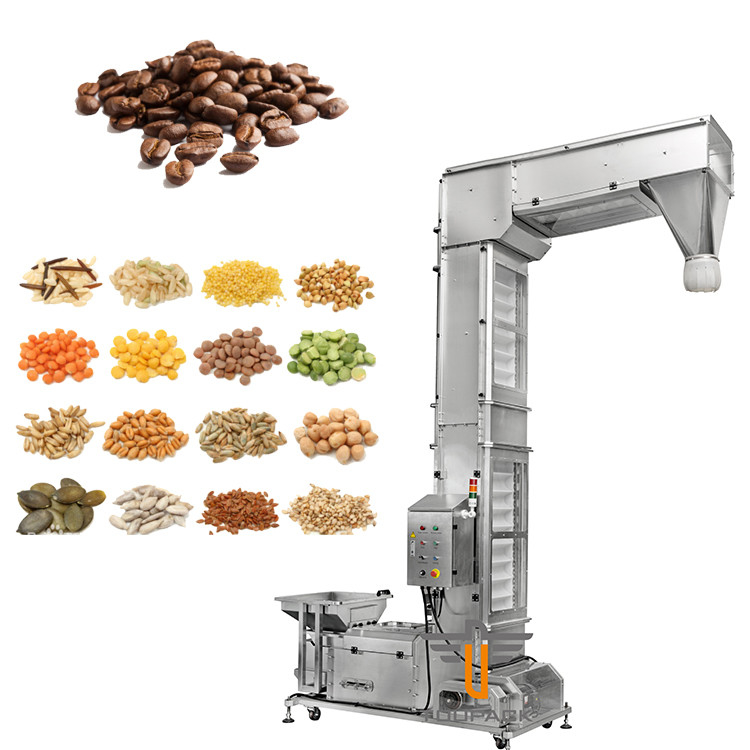

304SUS Maize Mill Coffee Bean Mobile Vertical Z Type Bucket Elevator Conveyor With Vibration Feeder

304SUS Bucket Elevator Conveyor Maize Mill Coffee Bean Mobile Vertical Z Type With Vibration Feeder 0

Z Type bucket elevator is the universally lifting conveying equipment. It is mainly made up of Movement part (bucket and traction belt or chain), Upper part with Transmission Drum, Down parts with Tension Drum, Middle Cabinet, Drive Device and so on.

Application

The equipment is widely used in where multi-point feeding and discharging is needed. Usually it works together with weighing & packaging machines and color selecting machines on automatic production line. It is mainly applicable products:puffed food, fodder ,candies , dried fruit , health food , grains , chemicals , hardware, etc.

Technical Parameters

Contents	Specifications
Body Material	carbon steel / SUS304
Hopper Volume	1.0L / 1.8L / 3.6L
Hopper Surface	dimple / plain
Power Supply	single / 3 phrase 220V/380V 50HZ/60HZ, 0.4KW/0.75KW/1.5KW/2.2KW
Conveying Capacity	2.5m³/h / 4m³/h / 8m³/h
Machine Dimension(mm)	per customer’s requirement
Vibrating Feeder	detached / independent vibrating feeder
Feeder Volume	70L / 100L / 150L / 200L
Discharge Funnel	single / double / multiple

Feature

5.Electromagnetic vibration feeder feed material is possible.

6.Multiple discharges can be pneumatically controlled.

7.Vertical lifting can save floor space, and power loss is small, because the accumulation of material in the bucket, has been in a relatively static state during transport, it is not caused by transport damage.

8.Conveying height up to 10 meters.

9.According to the requirements of users (different materials, delivery capacity, delivery height) for the design and production.

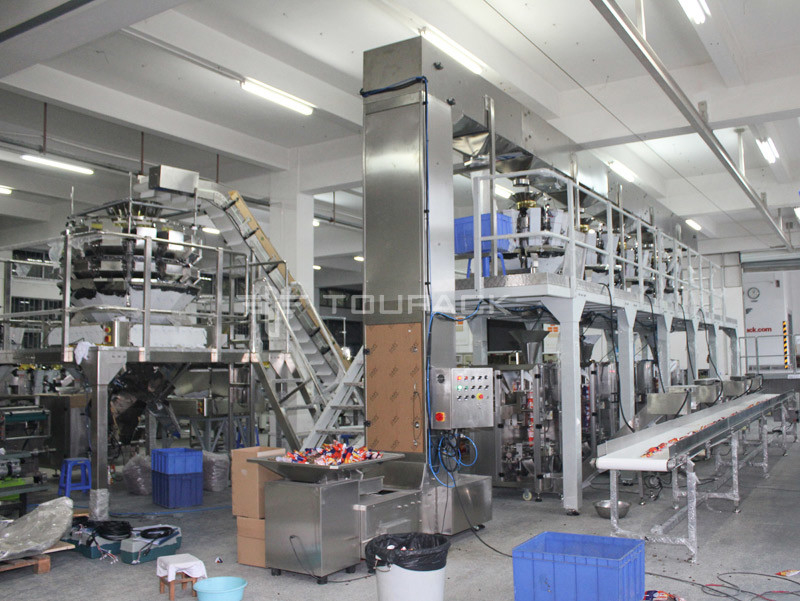

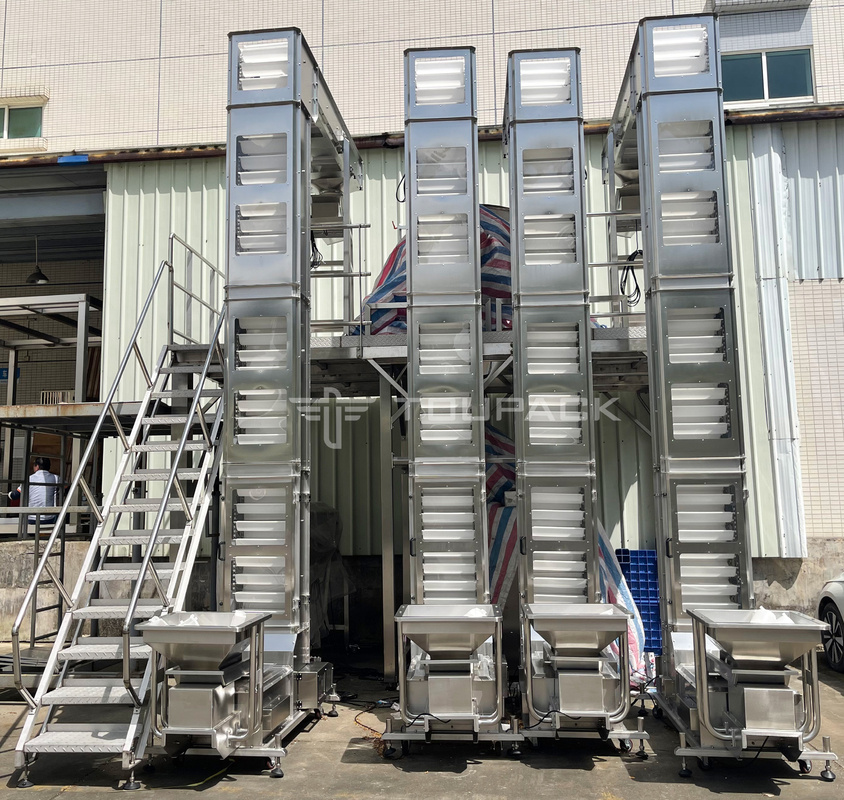

304SUS Bucket Elevator Conveyor Maize Mill Coffee Bean Mobile Vertical Z Type With Vibration Feeder 1

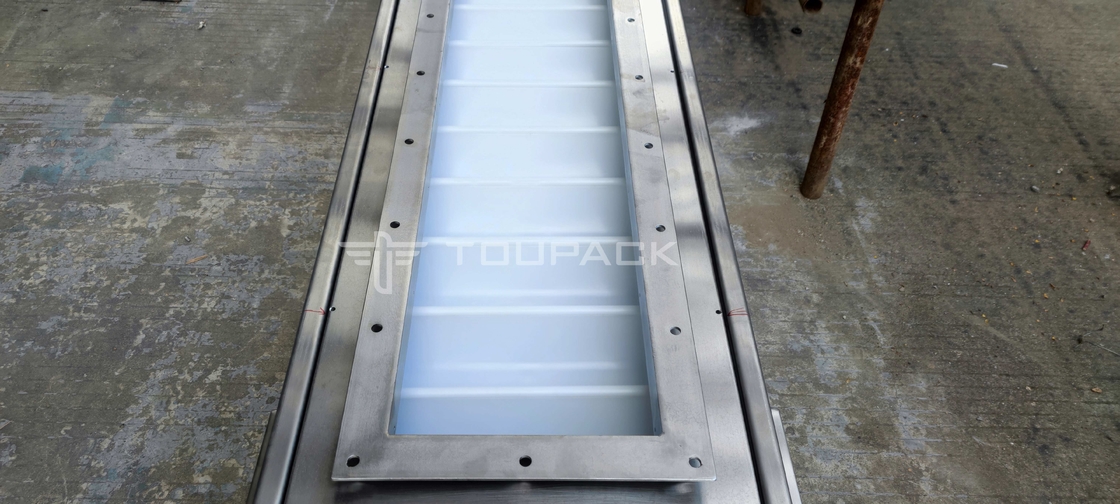

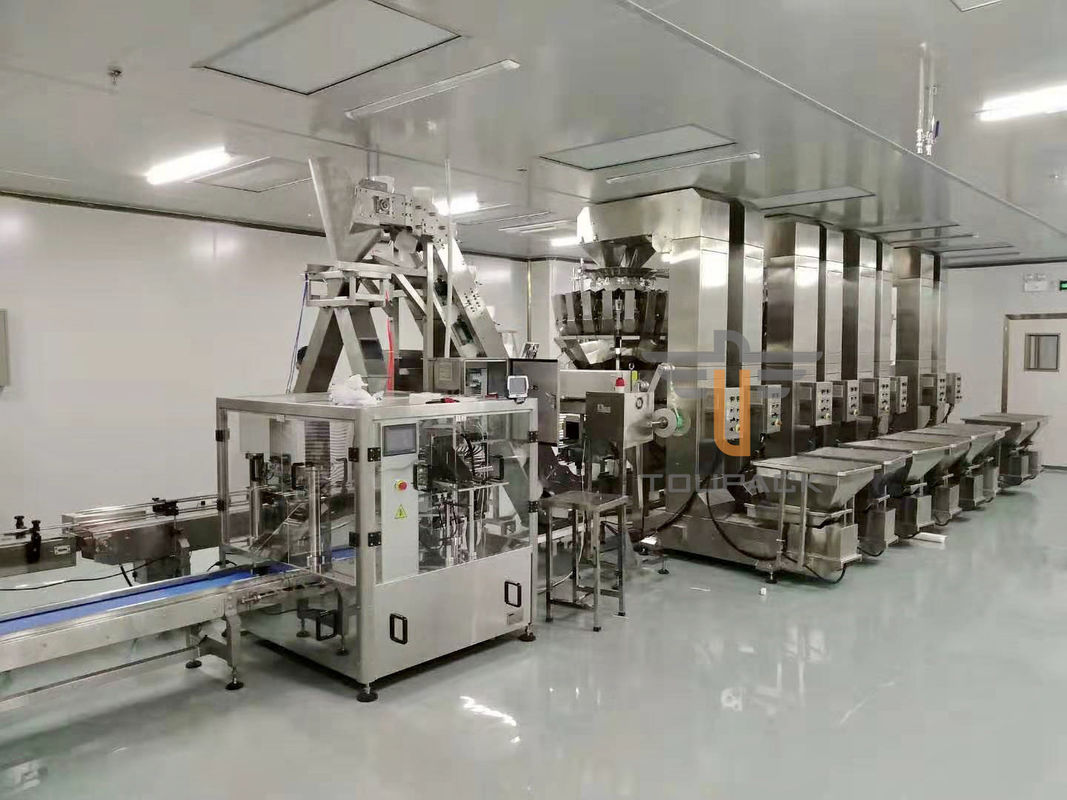

304SUS Bucket Elevator Conveyor Maize Mill Coffee Bean Mobile Vertical Z Type With Vibration Feeder 2

Customization Solution:

According to your production line requirements, our experts will provide you with an integrated weighing and packaging solution to help you improve production efficiency.
