Product Details:
|
| Usage: | Material Transimission | Feature: | Easy Cleanliness |
|---|---|---|---|
| Application: | Food | Certification: | CE |
| After Warranty Service: | Online Support | Online Support: | Vertical Bucket Elevator |
| Core Components: | Motor, Bearing, Vertical Conveyor | Structure: | Chain Conveyor |
| High Light: | Z Type Chain Bucket Elevator,Double Outlet Chain Bucket Elevator |
||

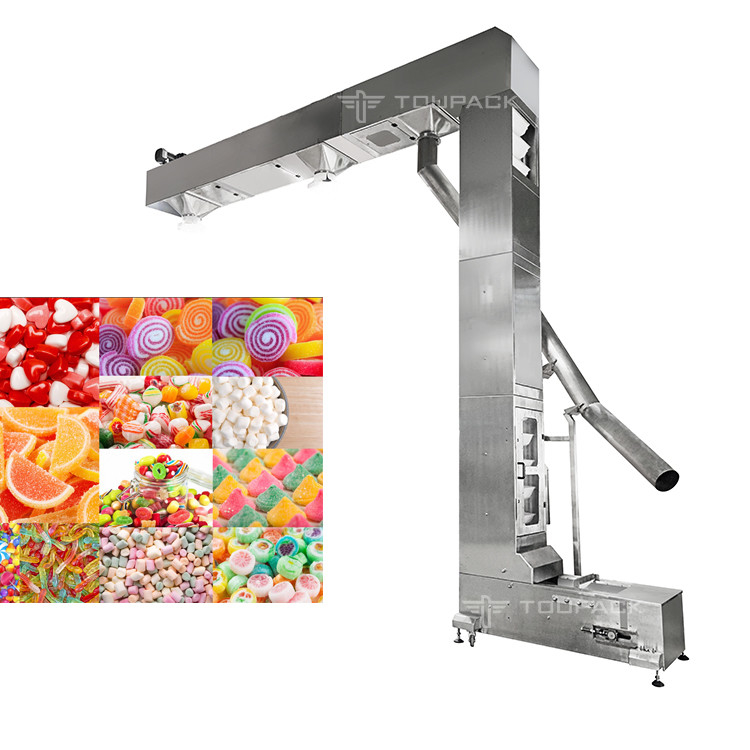

Double Outlet Candy Snack T/C/Z Type Bucket Elevator Peanut Grain Tea Chain Bucket Elevator For Food Machine Grain

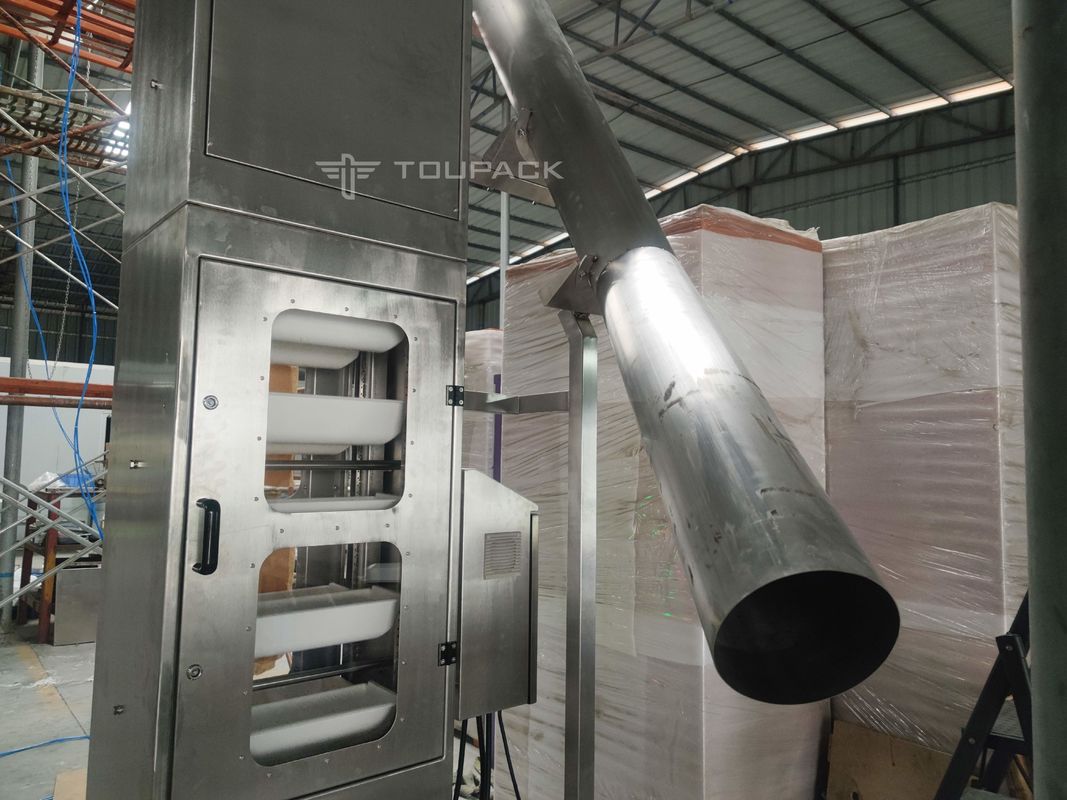

Z Type bucket elevator is the universally lifting conveying equipment. It is mainly made up of Movement part (bucket and traction belt or chain), Upper part with Transmission Drum, Down parts with Tension Drum, Middle Cabinet, Drive Device and so on.
Application
The equipment is widely used in where multi-point feeding and discharging is needed. Usually it works together with weighing & packaging machines and color selecting machines on automatic production line. It is mainly applicable products:puffed food, fodder ,candies , dried fruit , health food , grains , chemicals , hardware, etc.
Technical Parameters
|
Contents |
Specifications |
|
Body Material |
carbon steel / SUS304 |
|

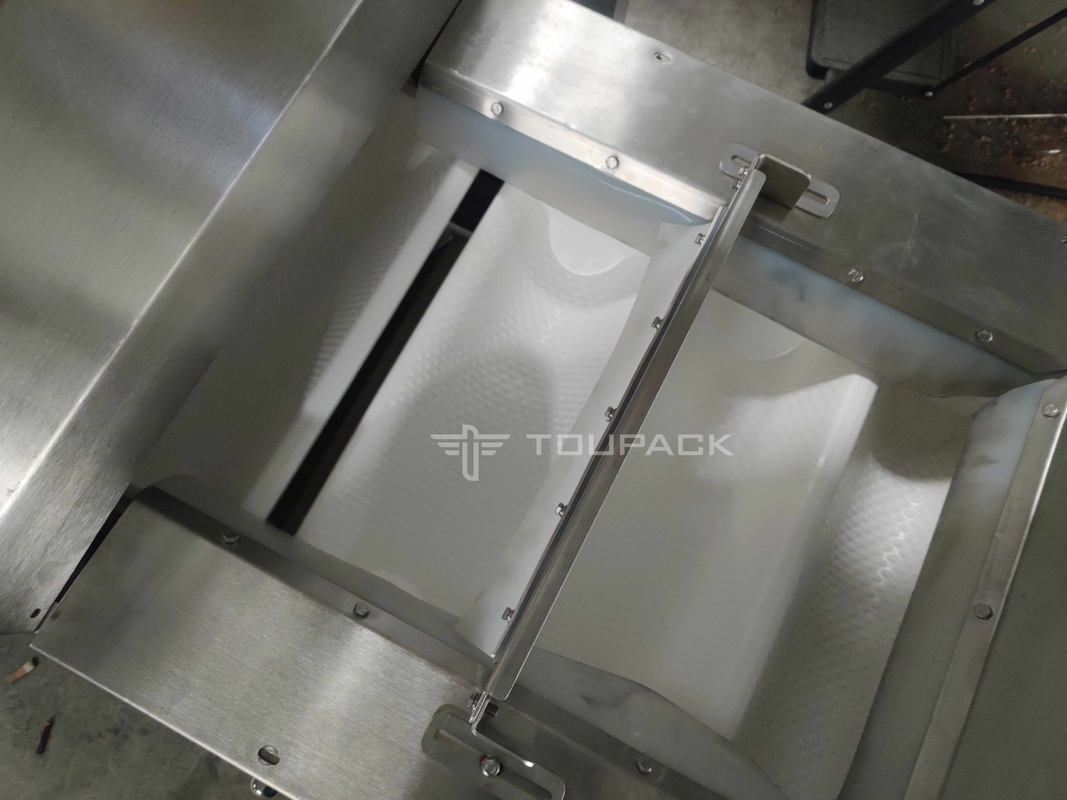

Hopper Volume |
1.0L / 1.8L / 3.6L |
|
Hopper Surface |
dimple / plain |
|
Power Supply |
single / 3 phrase 220V/380V 50HZ/60HZ, 0.4KW/0.75KW/1.5KW/2.2KW |
|
Conveying Capacity |
2.5m³/h / 4m³/h / 8m³/h |
|
Machine Dimension(mm) |
per customer’s requirement |
|
Vibrating Feeder |
detached / independent vibrating feeder |
|
Feeder Volume |
70L / 100L / 150L / 200L |
|

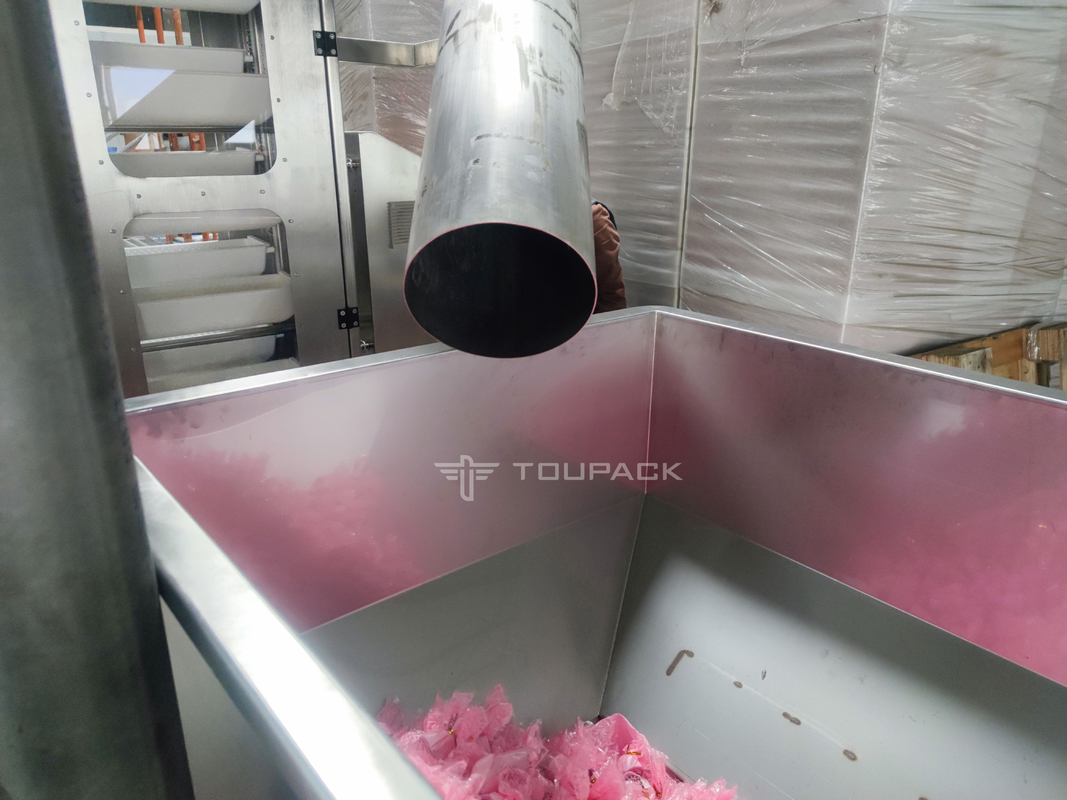

Discharge Funnel |
single / double / multiple |
Feature
1.According to customer needs and different specifications made .
2.the elevator can complete the Material handling automatically.
3. It s suitable use in delivery the grain, food, food stuff etc.
Conveyor with the character of large quantity. NO crash material. High Lifting etc.
Lifting height:3.3-10m(according to customers requires)
It can be made both stainless steel and plastic painted .The contact parts of food grade plastic.
Customization Solution:
According to your production line requirements, our experts will provide you with an integrated weighing and packaging solution to help you improve production efficiency.
