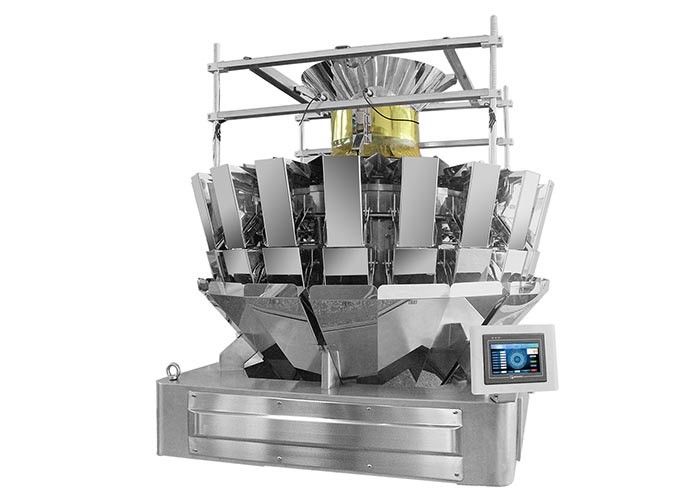

Automatic PLC 20 Heads Blended Products Multihead Weigher

Automatic PLC 20 Heads Blended Products Multihead Weigher

Automatic PLC 20 Heads Blended Products Multihead Weigher

Product Details:

Place of Origin: Guangdong Zhongshan China
Brand Name: TOUPACK
Model Number: TY-A-M20-2

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 10-25 working days
Payment Terms: T/T, L/C
Supply Ability: 100set per month
Contact Now
Detailed Product Description
Applicable:: Granular Products, Such As Melon Seeds Material:: SUS 304 Stainless Steel
Max. Weighing (one Hopper):: 10-1500g Control System:: MCU / PLC
HMI:: 10'' Color Touch Screen Power Supply:: AC220V/110V ±10% 50HZ/60HZ, 2KW
High Light:

20 Heads Combination Weigher

,

20 Heads Blended Products Multihead Weigher

,

PLC Blended Products Multihead Weigher

Automatic 20Heads Combination Weigher For Mixed and Blended Products



Application:



Applicable for weighing of granular, bar-shaped products, such as sunflower / melon seeds, almonds, pistachios, pine nuts, candies, puffed food, beans, frozen food, pet food, snacks, hardware and chemicals.



Main Function & Features:



1. Professional digital weighing module with high precision and good stability

2. Control system: MCU or PLC (optional).

3. Touch screen interface has different levels of authorized access; up to 16 different languages for choice; application software upgraded through USB.

4. Factory parameters recovery function; 99 preset product parameters to meet different parameter program requirements.

5. Weighing hopper able to discharge in turn to effectively prevent products from blocking.

6. Weighing and counting function to meet diverse needs from customers.

7. Real-time display of amplitude of each vibration pan as well as product weight in each hopper to better monitor the running status of the machine.

8. Machine body with SUS304/316 for option; IP65 dust and waterproof design.

9. Cleaning function: able to make the hoppers in opening state for easy daily cleaning and maintenance.

10. Modular design of control system for easy maintenance and cost-saving.

11. Two independent weighing system. With double upper storage hopper, double main vibrator and double discharge chute, two different products can be weighed at the same by presetting two different operating parameters. It can also be used as a normal 20-head weigher.



SSpecifications:



Model TY-A-M20-2TY-A-P20-2
Max. Weighing (one hopper) 10-1500g
Accuracy x (0.5)
Max. Scale Interval 0.1g
Max. Speed 130 WPM
Hopper Volume 1.6L / 2.5L
Control System MCU / PLC
HMI 10’’ color touch screen
Power Supply AC220V ±10% 50HZ/60HZ, 3KW
Packing Dimension

Machine: 1,530(L)*1,530(W)*1,658(H)mm

Spare parts: 1,200(L)*1,000(W)*988(H)mm

Package weight

Machine: 618kg

Spare parts: 342kg





Automatic PLC 20 Heads Blended Products Multihead Weigher 0Automatic PLC 20 Heads Blended Products Multihead Weigher 1
