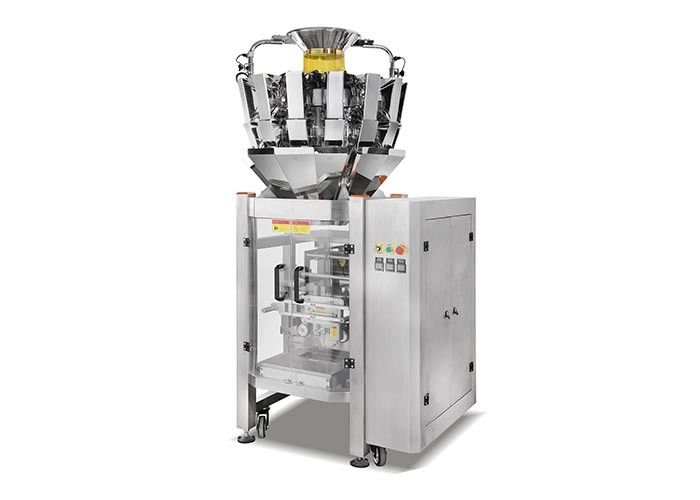

300g 10 / 14 Head Multihead Weigher Packing Machine

Place of Origin: Guangdong Zhongshan China
Brand Name: TOUPACK
Model Number: TY-1A-YZ-M1008-101 / TY-1A-YZ-M1408-101
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Pollywood case
Delivery Time: 3 - 30 days after payment arranged
Payment Terms: L/C, T/T
Product Details
Max. Weighing (one Hopper): 300g Weighing Accuracy: X (0.5)
Packaging Material: Standard Heat Sealable Composite Film Packing Speed: 80-100 Bpm (empty Bags)
Max. Film Width: 420mm Pulling Belt Type: Synchronous Belt Film Pulling
High Light:

14 Head Multihead Weigher Packing Machine

,

10 Head Multihead Weigher Packing Machine

,

300g Multihead Weigher

Leave a Message
Product Description

14 / 10 Head 0.8L / 2.5L Multihead Combination Weigher With Packing Machine





Application & Features:



1. Compact and space saving design, suitable for limited workshop height within 3,000mm.

2. Cost saving

3. Golden ratio design to make the machine more steady and accurate.

4. Integrated weighing and packaging system, controlled by one HMI for easy operation.

5. Widely used on various kinds of products and customized solution per customer’s request.





Main Configuration:



1. Body frame: SUS304

2. Max film width: 420mm.

3. Max speed: 100 bpm (empty bags).

4. Packaging material: standard heat sealable composite film.

5. Main electrical configuration of packaging machine:

-- MITSUBISHI PLC

-- 2 sets of Panasonic servo system

-- AIRTAC pneumatic parts

-- Banner photoelectric sensor

-- Pneumatic hot stamp printer (NANYUN)

6. One set of former free of charge (film width: 420mm, double clip seal)

7. 10” touch screen





Specifications:



Model

TY-1A-YZ-M1008-101

TY-1A-YZ-M1016-101

TY-1A-YZ-M1408-101

TY-1A-YZ-M1416-101

Max. Weighing (one hopper) 300g 300g
Weighing Accuracy x (0.5) x (0.5)
Min. Scale Interval 0.1g 0.1g
Hopper Q’ty 10 14
Hopper Volume 0.8L / 1.6L 0.8L / 1.6L
Max. Weighing Speed 60 bpm 80 bpm
Max. Film Width 420mm 420mm
Packaging Material standard heat sealable composite film standard heat sealable composite film
Packing Speed 80 bpm (empty bags) 100 bpm (empty bags)
Power Supply AC220V ±10% 50HZ/60HZ, 2.5KW AC220V ±10% 50HZ/60HZ, 3KW
Machine Dimension

1,457(L)*1,080(W)*2,313(H)mm (0.8L)

1,700(L)*1,211(W)*2,415(H)mm (1.6L)

1457(L)×1080(W)×2,391(H)mm (0.8L)

1,700(L)*1,211(W)*2,515(H)mm (1.6L)

Packing Dimension

1,700(L)*1,335(W)*2,300(H)mm (0.8L)

1,750(L)*1,330(W)*2,440(H)mm (1.6L)

1700(L)*1335(W)*2400(H)mm(0.8L)

1,750(L)*1,330(W)*2,540(H)mm (1.6L)

Machine Weight 635kg (0.8L); 685kg (1.6L) 655kg (0.8L); 735kg (1.6L)
Packing Weight 755kg (0.8L); 805kg (1.6L) 805kg (0.8L); 855kg (1.6L)
