Place of Origin:
Guangdong Zhongshan China
Brand Name:
TOUPACK
Model Number:
TY-A-M98-1

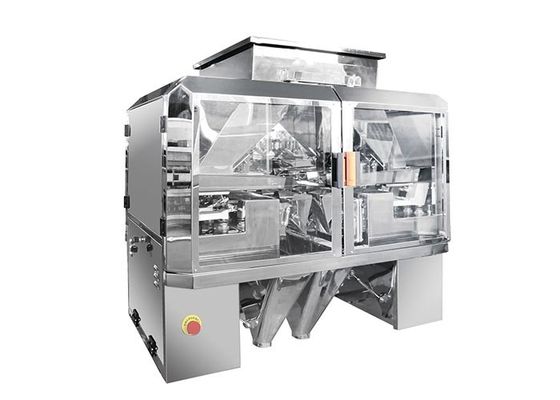

Mini smart filling machine linear weighing scale for salt, coffee, seasoning, etc.
Application:
Applicable for weighing of granular, powdered or other types of products with uniformed-shape, such as sugar, rice, chicken essence seasoning , seeds, salt, powdered milk, coffee, seasoning, etc.
Main Function & Features:
1. 7” color touch screen, multi-language option and software upgraded through USB.
2. Machine body with SUS304/316 for option and IP65 dust / waterproof design.
3. Factory parameter recovery function, able to preset 99 product parameters to meet a wide range of customers’ needs.
4. Automatic amplitude adjustment for more convenient operation.
5. Each hopper can function as a single scale.
6. Achieving blended weighing and packaging for 8 types of products
7. Optional single/double discharge timing hopper. Connecting with one or two packaging machines or double-row packaging machine to achieve high-speed weighing and packaging.
8. Hopper door opening driven by step motor to make the operation faster and more stable.
9. Modular control system for easy maintenance and low cost.
Specifications:
| Model | TY-A-M98-1 |
| Max. Weighing (one hopper) | 300g |
| Accuracy | x (0.5) |
| Max. Scale Interval | 0.1g |
| Max. Speed | 120 WPM |
| Hopper Volume | 0.5L / 1.2L |
| Control System | MCU |
| HMI | 7’’ color touch screen |
| Power Supply | AC220V ±10% 50HZ/60HZ, 1.6KW |
| Packing Dimension | 1,315(L)*1,100(W)*1,458(H)mm |
| Package weight | 315kg |
