| Place of Origin: | Guangdong Zhongshan China |
| Brand Name: | TOUPACK |
| Model Number: | VFFS-620 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden case |
| Delivery Time: | 10-25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30set per month |
| Packing Speed:: | 10-50 Bpm | Bag Size:: | 20-400(L)*100-300(W)mm |
|---|---|---|---|
| Bag Type:: | Pillow Bag, Gusset Bag, Hole Punching Bag, Vacuum Bag | Film Width:: | 140-620mm |
| Film Thickness:: | 0.04-0.09mm | Pulling Belt Type:: | Synchronous Servo Motor Belt Film Pulling |
| High Light: | Bag VFFS Packaging Machine,Automatic VFFS Packaging Machine,Automatic vffs packing machine |
||

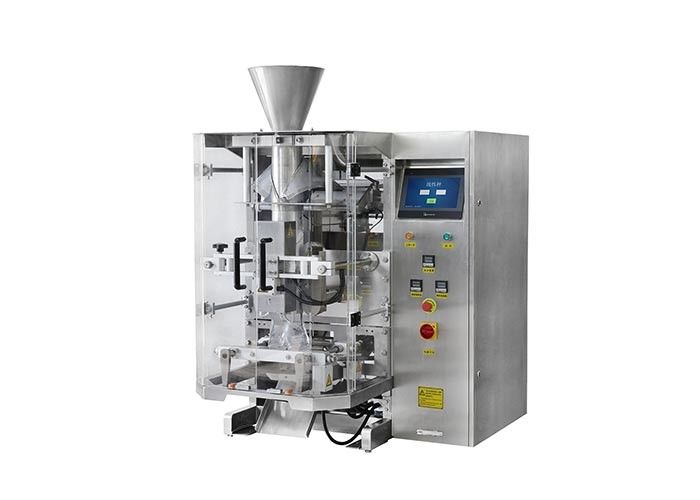

VFFS Automatic Packaging Series, 620 Series Vertical Packaging Machine
Main Function & Features:
1. Advanced design, reasonable structure, convenient operation and maintenance.
2. Precise positioning with servo film running system and synchronous belts to pull film, ensuring stability and reliability.
3. Automatic correcting function; time and film saving to improve the reliability and intelligence of the whole machine.
4. Multiple automatic alarm and protection functions to minimize the loss
5. Full packaging process of measuring, feeding, filling, bag forming and date printing, air in/out, counting and finished product conveying in one automatic operation by the machine equipped with measurement device.
6. Bag type: pillow bag, gusset bag and hole punching bag.
Specifications:
| Model | 520 VFFS | 620 VFFS | 720 VFFS |
| Packing Speed | 10-60 bpm | 10-50 bpm | 10-50 bpm |
| Bag Size | 50-350(L)*50-250(W)mm | 20-400(L)*100-300(W)mm | 20-450(L)*140-350(W)mm |
| Bag Type | pillow bag, gusset bag, hole punching bag | pillow bag, gusset bag, hole punching bag | pillow bag, gusset bag, hole punching bag |
| Film Width | 120-520mm | 620mm | 720mm |
| Film Thickness | 0.04-0.09mm | 0.04-0.09mm | 0.06-0.12mm |
| Film Material | BOPP/CPP,BOPP/VMCPP,BOPP/PE,PET/VMPET/PE,PET/PE | ||
| Pulling Belt Type | synchronous belt film pulling | synchronous servo motor belt film pulling | synchronous servo motor belt film pulling |
| Air Consumption | 0.8Mps 0.4m3/min | 0.8Mps 0.6m3/min | 200L/min 0.7×105Pa |
| Power Supply | single phase 220V 50HZ/60HZ, 3.4KW / 4.2KW | single phase 220V 50HZ/60HZ, 4.0KW | single phase 220V 50/60HZ, 4.5KW |
| Machine Dimension | 1,560(L)*1,160(W)*1,530(H)mm | 1,250(L)*1,600(W)*1,700(H)mm | 1,360(L)*1,630(W)*1,900(H)mm |
| Machine Weight | 480kg | 800kg | 900kg |
