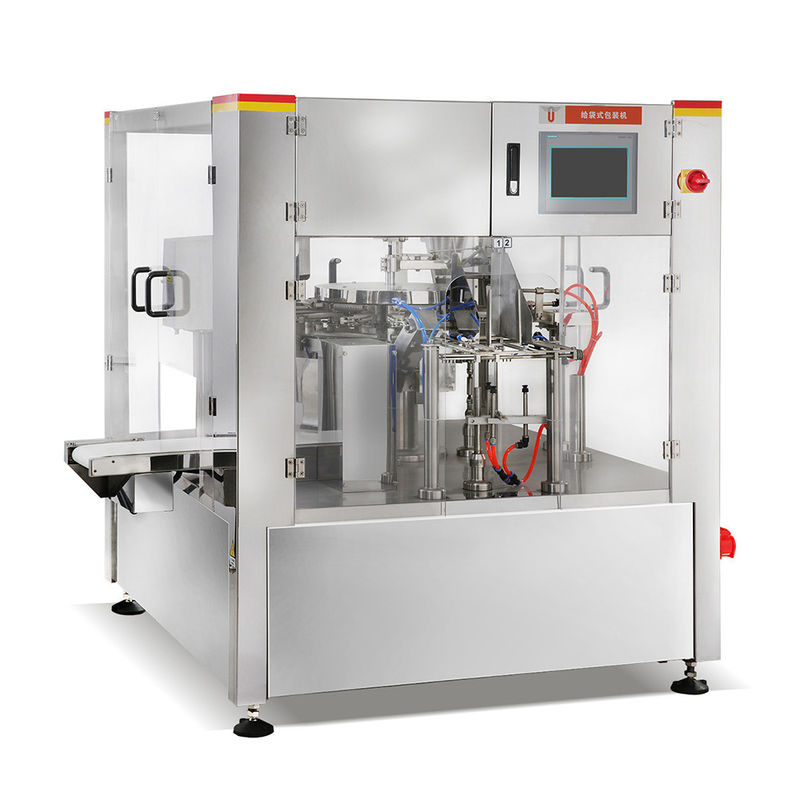

Work Station 8 Rotary Vacuum Premade Pouch Packing Machine

Place of Origin: Guangdong Zhongshan China
Brand Name: TOUPACK
Model Number: TY-RP200
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 10-25 working days
Payment Terms: T/T, L/C
Supply Ability: 30set per month
Product Details
Packaging Speed:: 30-50 Bpm Bag Size:: 100-160(L)*100-230(W)mm
Sealing Type:: Reticulate Pattern Sealing; Double Zipper Sealing Bag Type:: Flat Bag, Stand-up Bag, Zipper Bag
Air Consumption:: 5-8kgf/cm²; 0.4m³/min Net Weight:: 1600kg
High Light:

8 Rotary Premade Pouch Packing Machine


Premade Pouch Vacuum Packing Machine


Rotary Premade Pouch Packing Machine

Leave a Message
Product Description

8 Rotary Work Station Automatic Rotary Premade Pouch (Vacuum) Packing machine


Main Function& Features:


1. Replacing traditional manual packaging, the rotary bag packaging machine has achieved packaging automation, improved production efficiency and significantly reduced the product cost. The whole equipment is operated by one person only, greatly saving the labor cost.

2. Equipped with auto-monitoring device, the machine can check the air pressure, temperature controller breakdown, opening status of the pouches to determine if the machine is in normal condition. It can also control the code printer, filling and hot-sealing device to avoid wasting of bags and products.

3. Fully-automated rotary vacuum poucher is able to meet a variety of packaging needs and cab be used with other equipment.

4. Fully-automated rotary vacuum poucher consists of two separate rotary parts (filling system and vacuum system) with filling system in intermittent operation and vacuum system in continuous operation.

5. Quick change of the pouches. The width of the bagging can be adjusted automatically at one time.

6. The machine meets the hygienic standards of food processing machinery, with product contact parts in SSUS304 or other material to conform with food hygiene and safety.

7. Convenient for cleaning. The vacuum chamber can be cleaned.

8. With pre-fabricated pouches, packaging material waste is low. Patterns on pouches are complete and good-looking and sealing is of good quality, enhancing the product level. When there is no product filling, there is no sealing and the pouches can be re-used.

9. Utilizing advanced PLC and POD electrical control system, the machine is able to adjust the angle and time of the pneumatic parts and human-machine interface is friendly with easy operation.




Model TY-RP200 TY-RVP200
Packaging Speed 30~50 bpm 50 bpm
Bag Size 100-160(L)*100-230(W)mm 100-180(L)*120(W)mm
Packaging Weight 1-1.5kg 1-2kg
Sealing Type reticulate pattern sealing; double zipper sealing reticulate pattern sealing; double zipper sealing
Powder Supply 3 phase 380V 50HZ, 3KW 3 phase 380V 50HZ, 5KW
Air Consumption 5-8kgf/cm²; 0.4m³/min 0.6m³/min
Bag Type flat bag, stand-up bag, zipper bag flat bag, stand-up bag, zipper bag, paper bag, etc.
Net Weight 1,600kg 1,800kg
Machine Dimension 1,550(L)*1,350(W)*1,400(H)mm 1,480(L)*1,320(W)*1,510(H)mm
