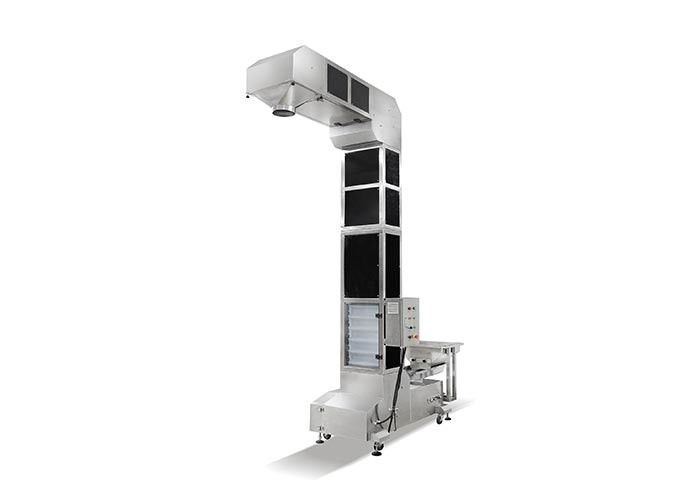

Z Type Bucket Elevator Conveyor

Z Type Bucket Elevator Conveyor
Z Type Bucket Elevator Conveyor Z Type Bucket Elevator Conveyor

Large Image :  Z Type Bucket Elevator Conveyor

Product Details:
Place of Origin: Guangdong Zhongshan China
Brand Name: TOUPACK
Model Number: Z-Type Bucket Elevator
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 10-25 working days
Payment Terms: T/T, L/C
Supply Ability: 30set per month

Z Type Bucket Elevator Conveyor

Body Material:: Carbon Steel / SUS304 Hopper Volume:: 1.0L / 1.8L / 3.6L
Hopper Surface:: Dimple / Plain Conveying Capacity:: 2.5m³/h / 4m³/h / 8m³/h
Vibrating Feeder:: Detached / Independent Vibrating Feeder Discharge Funnel:: Single / Double / Multiple
Feeder Volume:: 70L / 100L / 150L / 200L
High Light:

Z Type Bucket Elevator Conveyor


Vertical Bucket Elevator Conveyor


Lifting Transport Bucket Elevator

Z Type Vertical Lifting Transport Bucket Elevator Conveyor for Material Transportation




The equipment is widely used in where multi-point feeding and discharging is needed. Usually it works together with weighing & packaging machines and color selecting machines on automatic production line. The products elevated vary from pet food, puffed food, fodder, candies, dried fruit, health food, grains, chemicals, hardware, etc.


Main Function & Features:


1. The bucket is made of food grade PP material with good looking, free of deformation as well as of low and high temperature resistance.

2. Compact structure design for space saving the Lifting height and machine size can be customized.

3. Fully enclosed structure leaves the machine no chance for leakage or pollution. Low rate of material damage. Ideal for non-sticky product conveying.

  4. Adjustable conveying speed and easy maintenance, disassembly and cleaning.


Technical Parameters:


Contents Specifications
Body Material carbon steel / SUS304
Hopper Volume 1.0L / 1.8L / 3.6L
Hopper Surface dimple / plain
Power Supply single / 3 phrase 220V/380V 50HZ/60HZ, 0.4KW/0.75KW/1.5KW/2.2KW
Conveying Capacity 2.5m³/h / 4m³/h / 8m³/h
Machine Dimension(mm) per customer’s requirement
Vibrating Feeder detached / independent vibrating feeder
Feeder Volume 70L / 100L / 150L / 200L
Discharge Funnel single / double / multiple

Z Type Bucket Elevator Conveyor 0Z Type Bucket Elevator Conveyor 1
