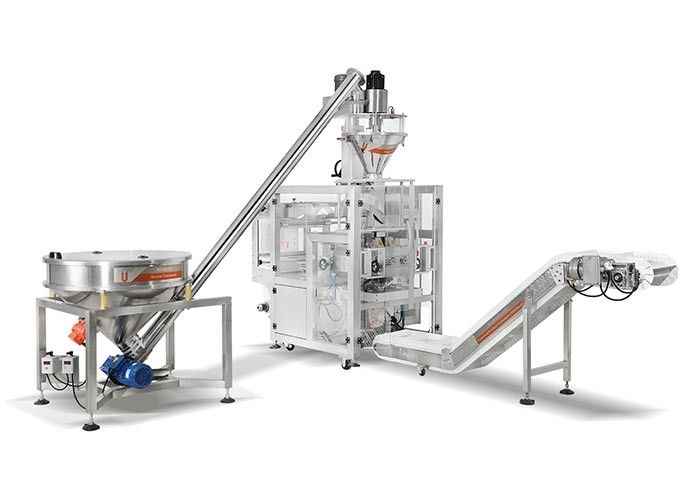

Powder Packaging Spiral Screw Bucket Elevator Conveyor

Powder Packaging Spiral Screw Bucket Elevator Conveyor

Powder Packaging Spiral Screw Bucket Elevator Conveyor

Product Details:

Place of Origin: Guangdong Zhongshan China
Brand Name: TOUPACK
Model Number: Inclined Conveyor

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 10-25 working days
Payment Terms: T/T, L/C
Supply Ability: 30set per month
Contact Now
Detailed Product Description
Body Material:: SUS304 Conveyor Type:: Screw Blade
Silo Volume:: 100L / 200L Conveying Angle:: Standard: 45° Or Per Requirement (from 30°~60°)
Power Supply:: Single / 3 Phase 220V/380V 50HZ/60HZ, 1.1KW Conveying Height:: Standard: 1,850mm Or Per Requirement (from 1,000 To 5,000mm)
High Light:

Spiral Screw Conveyor

,

Screw Bucket Elevator Conveyor

,

Powder Bucket Elevator Conveyor

Continuous Feeding Spiral Screw Conveyer For Powder Packaging System



Application:



Applicable for conveying of powdered products in food, medical, chemical or plastic industry.



Main Function & Features:



1. Good sealing with no powder leakage.

2. Able to combine with other machines to make full use of the space.

3. Rational structure with silo and screwing device independent from each other for easy installation.

4. Simple maintenance, easy disassembly and convenient for cleaning.



Technical Parameters:



Contents Specifications
Body Material SUS304
Conveying Type screw blade
Power Supply single / 3 phase 220V/380V 50HZ/60HZ
Power Consumption 0.61KW / 0.81KW / 1.56KW / 2.26KW / 3.06KW / 4.06KW
Silo Volume 100L / 200L
Conveying Speed 2m³/h, 3m³/h, 5m³/h, 7m³/h, 8m³/h, 12m³/h
Conveying Angle Standard: 45° or per requirement (from 30°~60°)
Conveyor Pipe Diameter 102mm, 114mm, 141mm, 159mm, 168mm, 219mm
Conveying Height Standard: 1,850mm or per requirement (from 1,000 to 5,000mm)
Machine Dimension(mm) custom-made per requirement





























Powder Packaging Spiral Screw Bucket Elevator Conveyor 0Powder Packaging Spiral Screw Bucket Elevator Conveyor 1Powder Packaging Spiral Screw Bucket Elevator Conveyor 2Powder Packaging Spiral Screw Bucket Elevator Conveyor 3
