S Type Bucket Elevator Conveyor

S Type Bucket Elevator Conveyor

Turning Belt Horizontal Conveyor

S Type Bucket Elevator Conveyor

SUS304 Bucket Elevator Conveyor

Place of Origin:

Guangdong Zhongshan China

Brand Name:

TOUPACK

Model Number:

S Type Conveyor

Contact Us
Request A Quote
Product Details
Body Material::
SUS304
Conveyor Type::
Plastic Steel Chain / Net Chain
Conveyor Belt Material::
POM / Stainless Steel
Conveyor Belt Width::
Custom-made Per Requirement
Power Supply::
Single / 3 Phase 220V/380V 50HZ/60HZ, 1.1KW
Upright Guardrail::
D12 Steel Rod / Aluminum (optional)
Conveying Speed::
Variable Frequency Drive (VFD)
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
wooden case
Delivery Time
10-25 working days
Payment Terms
T/T, L/C
Supply Ability
30set per month
Product Description

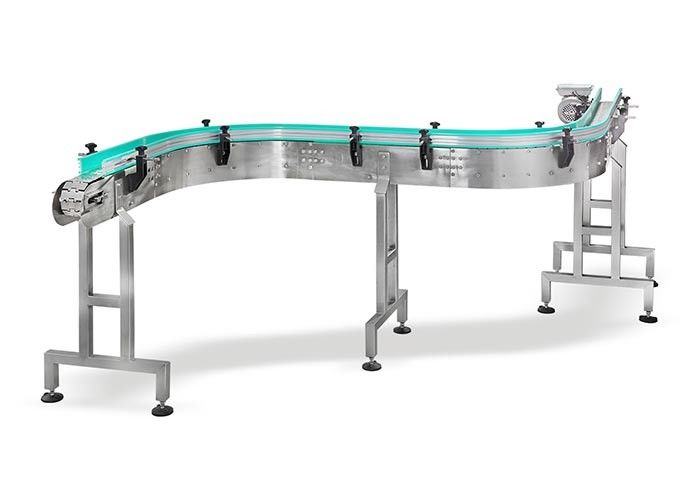

S Type Turning Belt Horizontal Conveyor For Automatic Packaging System



Application:



Applicable for automatic conveying and distribution of bottled, canned or boxed products such as food, medicine, beverage, cosmetics, detergents, seasonings, dairy products, tobacco, etc.



Main Function & Features:



1. Able to combine with other equipment to make a whole production line for continuous or intermittent automatic weighing and packaging.

2. Variable Frequency Drive (VFD) to adjust conveying speed for less energy consumption and lower cost.

3. Able to meet single row conveying requirement for beverage labeling, can filling or cleaning as well as to meet high conveyance demand for sterilization machine, bottle storage table and bottle cooling machine.

4. Able to connect both ends of two steel chain conveyors to make an overlapping combination chain so that the bottles / cans are conveyed in a dynamic transitional state, leaving no bottles or cans on the conveyor and making empty or stuffed bottles or cans move smoothly through the conveying line.

5. Simple maintenance, easy disassembly and convenient for cleaning.



Technical Parameters:



Contents Specifications
Body Material SUS304
Conveyor Type plastic steel chain / net chain
Conveyor Belt Material POM / stainless steel
Conveyor Belt Width custom-made per requirement
Machine Size custom-made per requirement
Power Supply single / 3 phrase 220V/380V 50HZ/60HZ
Power Consumption 0.4KW / 0.75KW / 1.1KW / 1.5KW / 2.2KW
Upright Guardrail D12 steel rod / aluminum (optional)
Conveying Speed variable frequency drive (VFD)
