Home ProductsConveyor Metal Detector Machine

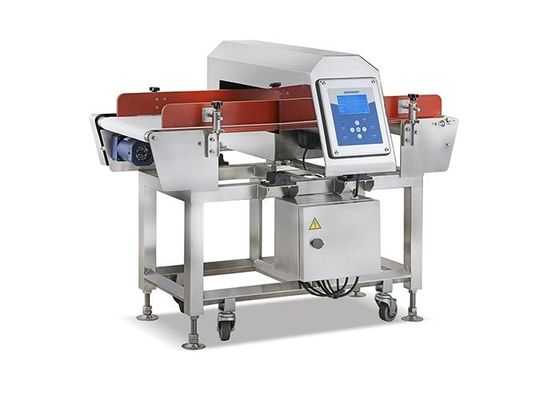

High Sensitivity Horizontal Auto Conveyor Metal Detector Machine

High Sensitivity Horizontal Auto Conveyor Metal Detector Machine

High Sensitivity Horizontal Auto Conveyor Metal Detector Machine

Product Details:

Place of Origin: Guangdong Zhongshan China
Brand Name: TOUPACK
Model Number: TYA-MD3011

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 10-25 working days
Payment Terms: T/T, L/C
Supply Ability: 30set per month
Contact Now
Detailed Product Description
Body Material:: SUS304 HMI:: 7'' Color Touch Screen
Detected Product Width:: ≤300mm Detected Product Height:: ≤80~180mm
Detecting Sensitivity (idle Status):: Fe≥Φ0.5~0.8mm SUS304≥Φ1.0~1.5mm Reject Device:: Flash Light Alarm; Pneumatic Pusher / Sliding (optional)
High Light:

Auto Conveyor Metal Detector Machine

,

Horizontal Conveyor Metal Detector Machine

,

Horizontal Conveyor Detector Machine

High Detecting Sensitivity Horizontal Auto Conveying Metal Detectors For Food Processing Industry



Application:



Applicable for detecting metal in aquatic products, meat and poultry, pickled products, pasta, dried fruits, vegetables, industrial chemicals, pharmaceuticals, cosmetics and toys.



Main Function & Features:



1. High detecting sensitivity.

2. Able to store 100 kinds of products.

3. Data supporting interface equipped with USB and Ethernet interface.

4. All stainless-steel material to meet HACCP requirement for food machinery.

5. Transport mechanism easy to dismantle for routine maintenance and cleaning.



  Specifications:



Model

TYA-MD3011/

3015/3018/3021

TYA-MD4011/

4015/4018/4021

TYA-MD5018/

5023/5028

TYA-MD6028
Body Material SUS304
HMI 7” color touch screen
Detected Product Width ≤300mm ≤400mm ≤500mm ≤600mm
Detected Product Height ≤80~180mm ≤80~180mm ≤150~250mm ≤250mm

Detecting Sensitivity

(idle status)

Fe≥Φ0.5~0.8mm

SUS304≥Φ1.0~1.5mm

Fe≥Φ0.7~0.8mm

SUS304≥Φ1.2~1.5mm

Fe≥Φ0.7~1.2mm

SUS304≥Φ1.5~2.0mm

Fe≥Φ1.5mm

SUS304≥Φ2.0mm

Reject Device flash light alarm; pneumatic pusher / sliding (optional)






High Sensitivity Horizontal Auto Conveyor Metal Detector Machine 0High Sensitivity Horizontal Auto Conveyor Metal Detector Machine 1High Sensitivity Horizontal Auto Conveyor Metal Detector Machine 2
