Product Details:
|
| Body Material:: | SUS304 | Frame Material:: | Carbon Steel With Powder Coating |
|---|---|---|---|
| Vibrating Pan Length:: | 826mm/2667mm | Silo Volume:: | 150L/200L |
| Max. Capacity:: | 8m³/h | ||
| High Light: | Stainless Steel Vibrating Feeder,SUS304 Vibrating Feeder,200L Vibrating Feeder |
||

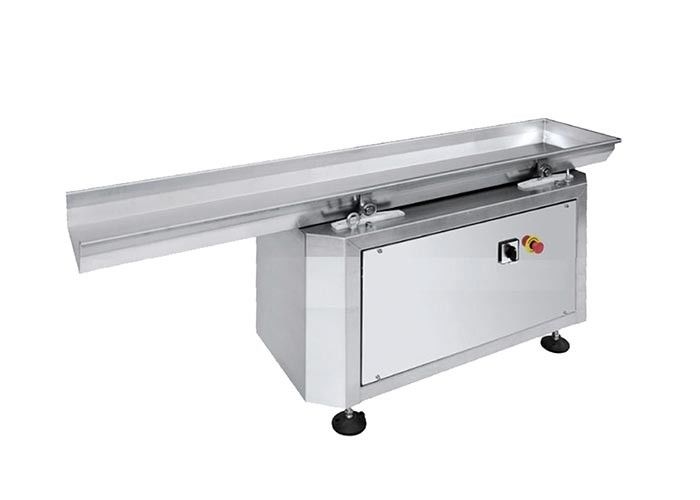

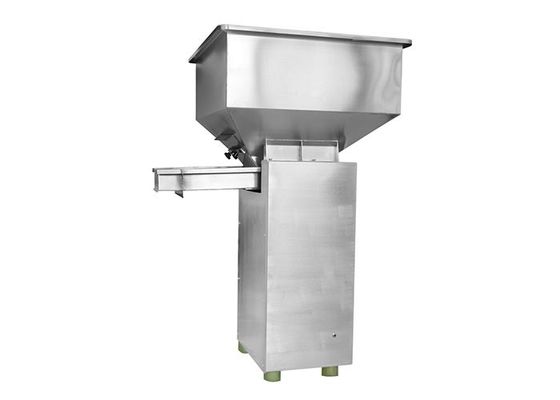

Stainless Steel Vibrating Feeder For Food Conveyor, Fast Rewinding Feeder
Application:
Mainly applicable in temporary storage and transportation to conveying equipment for granular products such as puffed food, grain, plastic pellets, dried fruit, etc.
Main Function & Features:
1. The machine uses electromagnetic principle as the power to vibrate the product to the conveying equipment to realize automatic feeding process.
2. To form a continuous or intermittent automatic weighing and packaging line with other equipment.
3. Simple maintenance, easy disassembly and convenient cleaning.
Technical Parameters:
| Contents | Specifications | |
| Machine | Independent vibrating feeder | Fast rewinding feeder |
| Body Material | SUS304 | |
| Frame Material | carbon steel with powder coating | |
| Vibrating Pan Length | 826mm | 2,667mm |
| Exit Height | 530mm / 550mm or per requirement | |
| Silo Volume | 150L/200L | N/A |
| Max. Capacity | 8m³/h | 8m³/h |
| Power Supply | single phase 220V 50HZ/60HZ | |
| Power Consumption | 0.75KW | 1.5KW |
| Total Height (mm) | custom-made per requirement | |
