Double Servo Vertical VffS Automated Packaging System

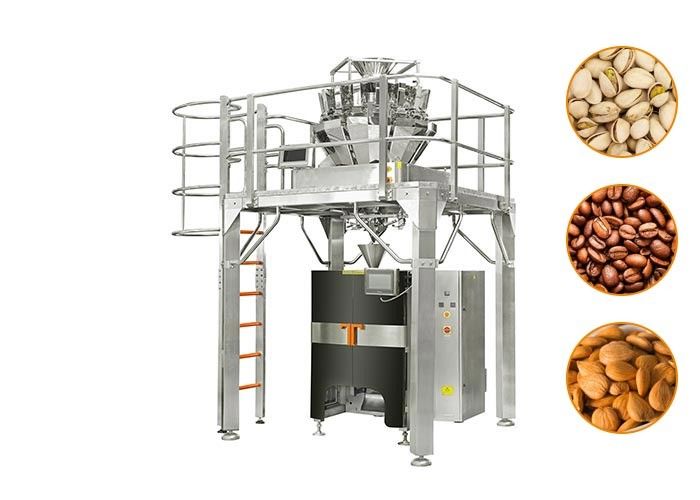

Large Image : Double Servo Vertical VffS Automated Packaging System

Product Details:

Place of Origin:	Guangdong Zhongshan China
Brand Name:	TOUPACK
Model Number:	520VFFS

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	wooden case
Delivery Time:	20-35 working days
Payment Terms:	T/T, L/C
Supply Ability:	10set per month

Contact Now

Double Servo Vertical VffS Automated Packaging System

Description

Application::	Snack Food	Bag Type::	Pillow Bag, Gusset Bag, Hole Punching Bag, Vacuum Bag
Film Width::	140-520mm	Control Type::	Single Servo /dual Servo
Air Consumption::	0.8Mps 0.5 M³/min	Power Supply::	Single Phase 220V 50Hz/60Hz,2.2kW
High Light:	VffS Automated Packaging System , Vertical Automated Packaging System , Double Servo Packaging System

Automatic Vertical Form Fill Seal(Vffs) Machine For Packaging Dried Fruit

Product Description

Application

It is suitable to use in packing the high accuracy and easy fragile materals, such as: potato chips, crispy nice, snacks, candy,pistachio, sugar, apple slices, dumpling. chocolate, pet food, small wares, etcFeatures:

1. Double servo motors for film drawing down system.

2 Automatic film rectifying deviation function,

3. Famous brand PLC Pneumatic system for vertical and horizontal sealing

4. Compatible with different intemal and extemal measuring device5 Adopt clip supporting without broken bags and reduce waste

Model	320 VFFS	420VFFS
Packing Speed	10-80BPM	10-70BPM
Bag Size	50-200(L)*60-150(W)mm	60-300(L)*60-200(W))mm
Bag Type	pillow bag, gusset bag, hole punching bag, vacuum bag
Film Width	140-320mm	140-420mm
Film Thickness	0.04-0.09mm	0.04-0.09mm
Film Material	BOPP/CPP,BOPPVMCPP,BOPP/PE,PETVMPET/PE,PET/PE
Control Type	single servo /dual servo	single servo /dual servo
Air Consumption	0.8Mps 0.25 m³/min	0.8Mps 0.5 m³/min
Power Supply	single phase 220V 50Hz/60Hz,2.2kW	single phase 220V 50Hz/60Hz,2.2kW
Machine Dimension	1,115(L)800(W)1,370(H) mm	1,530(L)970(W)1,600(H) mm
Machine Weight	300kg	450kg

Model	520 VFFS	620 VFFS	720 VFFS
Packing Speed	10-60 BPM	10-50 BPM	10-45 BPM
Bag Size	50-350(L)*50-250(W) mm	20-400(L)*100-300(W)mm	20-450(L)*140-350(W) mm
Bag Type	pillow bag, gusset bag, hole punching bag	pillow bag,gusset bag,hole punching bag	pillow bag, gusset bag, hole punching bag
Film Width	120-520mm	620mm	720mm
Film Thickness	0.04-0.09mm	0.04-0.09mm	0.06-0.12mm
Film Material	BOPP/CPP,BOPPVMCPP,BOPP/IPE,PETVMPETIPE,PET/IPE
Pulling Belt Type	synchronous belt film puling	synchronous servo motor belt film puling	synchronous servo motor belt film puling
Air Consumption	0.8Mps 0.4 m³/min	0.8Mps 0.6 m³/min	200L/min 0.7×105Pa
Power Supply	single phase 220V 50Hz/60Hz,3.4kW	single phase 220V 50Hz/60Hz,4.0kW	single phase 220V 50Hz/60Hz,4.5kW
Machine Dimension	1,560(L)1,160(W)1,530(H) mm	1,250(L)*1,600(W)1,700(H) mm	1,360(L)1630(W)1,900(H) mm
Machine Weight	480kg	800kg	900kg

2002 to 2009,Founder of the company started his business by providing processing support, designing and manufacturing automation production lines to ABB, Siemens and ThyssenKrupp which are among Fortune 500 companies.
Since 2009, TOUPACK has been focusing on R&D, fabrication, marketing and sales of intelligent weighing and packaging machines as well as various kinds of automated control equipment. Being a high-tech and innovative company, TO-U has worked as a business partner with Guangdong Meiweixian (Zhongshan),Anhui Qiaqia (Hefei) and many other well-known packaging machinery and food companies by supplying them with automated and intelligent weighing and packaging solutions. To better serve our customers, TO-U has set up its after-sales service center in California, USA, wholly-owned substitute Hefei TO-U Intelligent Equipment Co., Ltd. in East China and offices in Sichuan and Shanghai.
