Product Details:
|
Material:: | Stainless Steel 304 | Hopper Volume:: | 0.8L/0.5L |
---|---|---|---|
Max. Speed:: | 60 WPM | Accuracy:: | 0.1~1g |

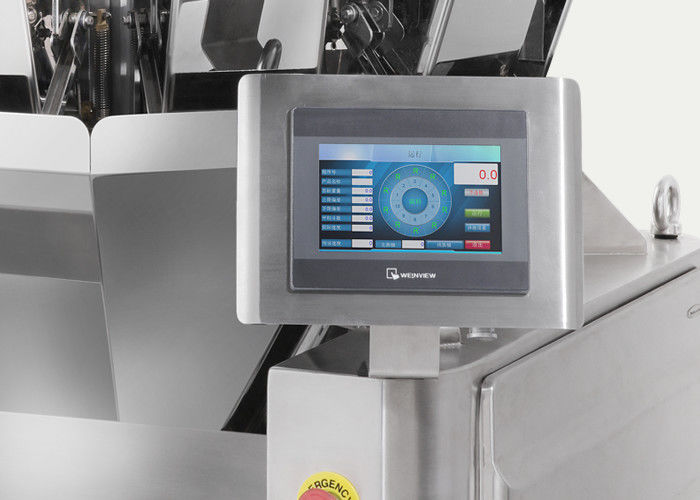

HMI:: | 7'' / 10'' Color Touch Screen | Control System:: | MCU / PLC |
Power Supply: | AC220V ±10% 50HZ/60HZ, 1.5KW | After Warranty Service: | Video Technical Support, Online Support |
High Light: | 0.5L Granules Multihead Weigher,SS304 Granules Multihead Weigher,SS304 Multihead Weigher |
Extreme Deluxe Edition Multihead Weigher Automatic Weighing for Granulated Plastic
Application:
Applicable for weighing of all types of small-sized / dosed, granular products, such as prepared herbal medicine, tea, seeds, MSG, chicken essence seasoning, coffee beans, chocolate beans, etc.
More Advanced
SPWM - Individual Frequency and Voltage modulation for efficient performance.
More Flexible
Data Carrier Detection Method on Essential Frequency.
More Stable
Standardized SMT Application.
More Convenient
Modularized Design and Easy Assembly.
Specifications:
Model | TY-1A -M10-1;TY-1A -P10-1 |
Max. Weighing (one hopper) | 5-200g |
Accuracy | x (0.5) |
Min. Scale Interval | 0.1g |
Max. Speed | 60 WPM |
Hopper Volume | 0.8L/0.5L |
Control System | MCU / PLC |
HMI | 7’’ / 10’’ color touch screen |
Power Supply | AC220V ±10% 50HZ/60HZ, 1.5KW |
Packing Dimension | 1,370(L)*1,060(W)*1,205(H)mm |
Package weight | 220kg |
Detail:
