Place of Origin:
Guangdong Zhongshan China
Brand Name:
TOUPACK
Model Number:
TY-A-M14-1; TY-A-P14-1

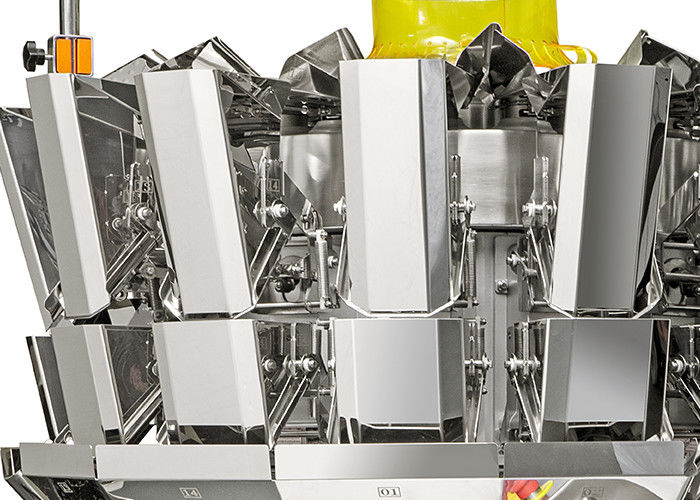

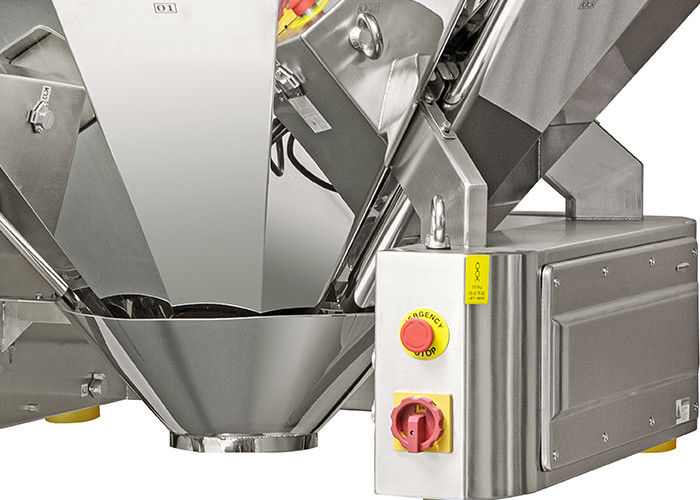

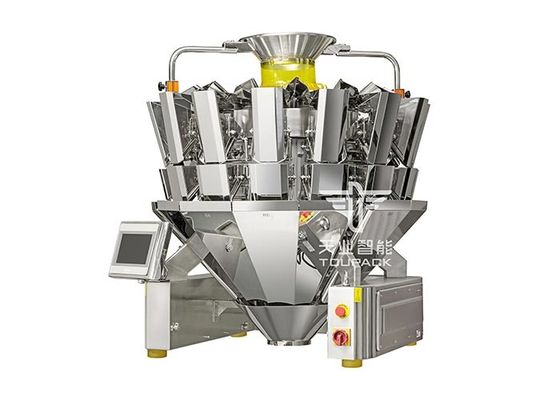

The Extreme Deluxe Edition 14-Head Automatic Combination Multihead Weigher is designed for precise weighing of small-sized granular products with exceptional accuracy and efficiency.
SPWM - Individual Frequency and Voltage modulation for efficient performance.
Data Carrier Detection Method on Essential Frequency.
Standardized SMT Application.
Modularized Design and Easy Assembly.
Model | TY-A-M14-1; TY-A-P14-1 |
---|---|
Max. Weighing (one hopper) | 5-200g |
Accuracy | ±0.1g |
Min. Scale Interval | 0.1g |
Max. Speed | 120 WPM |
Hopper Volume | 0.8L/0.5L |
Control System | MCU / PLC |
HMI | 7'' / 10'' color touch screen |
Power Supply | AC220V ±10% 50HZ / 60HZ, 2KW |
Packing Dimension | 1,370(L)*1,060(W)*1,105(H)mm |
Package weight | 240kg |
Ideal for weighing various small-sized granular products including:
