Seeds Nuts 32 Heads Mixing Granules Multihead Weigher

Seeds Nuts 32 Heads Mixing Granules Multihead Weigher

Mixing Granules Multihead Weigher

Mixing Multihead Weigher

32 Heads Granules Multihead Weigher

Place of Origin:

Guangdong Zhongshan China

Brand Name:

TOUPACK

Model Number:

TY-A-M32-1; TY-A-P32-1

Contact Us
Request A Quote
Seeds Nuts 32 Heads Mixing Granules Multihead Weigher
Seeds Nuts 32 Heads Mixing Granules Multihead Weigher Seeds Nuts 32 Heads Mixing Granules Multihead Weigher Seeds Nuts 32 Heads Mixing Granules Multihead Weigher
Product Details
Material::
Stainless Steel 304
Hopper Volume::
0.8L/0.5L
Max. Speed::
120 WPM
Accuracy::
0.1g
HMI::
7'' / 10'' Color Touch Screen
Control System::
MCU / PLC
Power Supply:
AC220V ±10% 50HZ/60HZ, 2KW
After Warranty Service:
Video Technical Support, Online Support
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
wooden case
Delivery Time
10-25 working days
Payment Terms
T/T, L/C
Supply Ability
100set per month
RELATED PRODUCTS
Good price Gummy Candy Bottle Filling Machine Popcorn Counting Filling Packing Jar Packing Machine online video

Gummy Candy Bottle Filling Machine Popcorn Counting Filling Packing Jar Packing Machine

Get Best Price
Good price Canning Filling Machine Soft Candy Filling Machine Gummy Bear Filling Machine 14 Head Weigher Packing Machine online video

Canning Filling Machine Soft Candy Filling Machine Gummy Bear Filling Machine 14 Head Weigher Packing Machine

Get Best Price
Good price Stainless Steel Granules 2.5L Automatic Multihead Weigher online video

Stainless Steel Granules 2.5L Automatic Multihead Weigher

Get Best Price
Good price Factory Mixed Dry Fruit And Nuts Multihead Weigher 4 Head Linear Weigher Vffs Packing Machine Zip Bag Packing Machine online video

Factory Mixed Dry Fruit And Nuts Multihead Weigher 4 Head Linear Weigher Vffs Packing Machine Zip Bag Packing Machine

Get Best Price
Contact Us
Contact Now
Product Description

32 Heads Mixing Multihead Scale For Weighing Small Granules Seeds/ Nuts



Suitable for quantitative weighing of sticky material such as gum drop, spun sugar, meatball, vegetable, screw etc.

According to the characteristic of material can be fine adjusted the opening and closing speed of the bucket door to avoid crush and block.

High speed and high accuracy combination, select the best combination from plenty weights combination through computerized calculation.
Fine adjusted the opening and closing speed of the bucket door to avoid crush and block.
Quantitative weighing function.



Features :


1.Can use for 2 in 1, 3 in 1 and 4 in 1 mixing products.
2.More hopper to combination,higher accuracy
3.The weight of the mixing can be automatically compensated by the last products.
4.High accuracy and tailored load cell.
5.Intelligent alarm diagnosis.
6.High speed stagger dump function.
7.New Modular and CAN bus technology, more efficient and stable.
8.Modbus Industry communication protocol.



Techanical and Character :


1. Upper storage funnel is divided to weight two different products.
2. Separate main vibrator, control the thickness of product independently.
3. Integral machine frame and machine cabinet contributes to more stability and higher accuracy.
4. Uniform design standards, and mould processing, contribute to better interchangeability for spare
parts.
5. Stable actuator design reduce the mechanical vibration and improves the load cell value accuracy.





Specifications:



Model TY-A-M32-1; TY-A-P32-1
Max. Weighing (one hopper) 5-200g
Accuracy x (0.5)
Min. Scale Interval 0.1g
Max. Speed 120 WPM
Hopper Volume 0.8L/0.5L
Control System MCU / PLC
HMI 7’’ / 10’’ color touch screen
Power Supply AC220V ±10% 50HZ / 60HZ, 2KW
Packing Dimension 1,370(L)*1,060(W)*1,105(H)mm
Package weight 240kg






Detail:

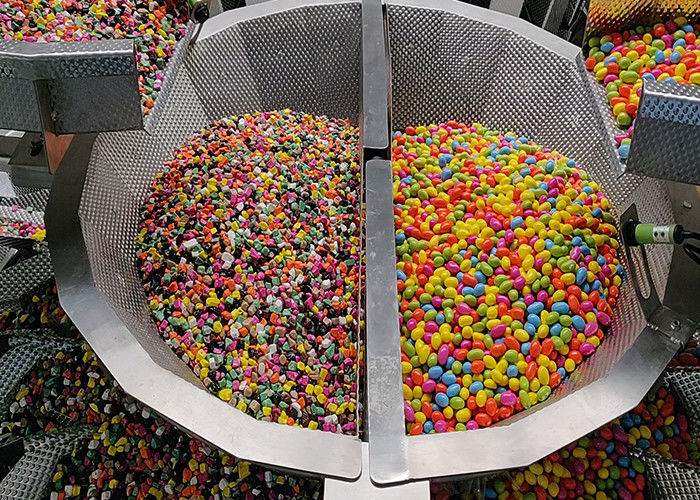

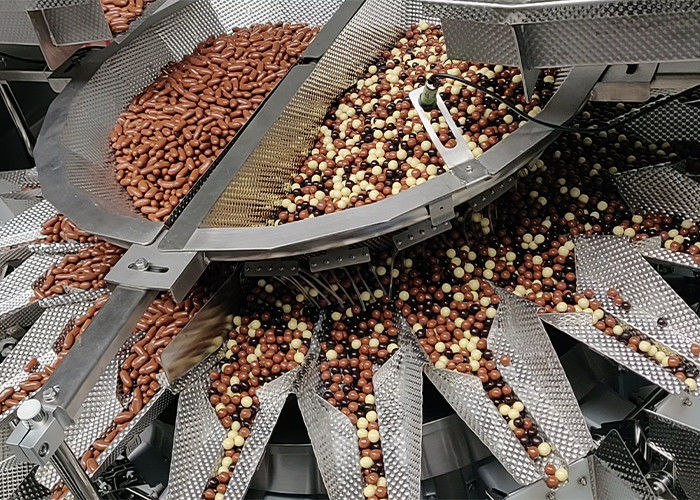

Seeds Nuts 32 Heads Mixing Granules Multihead Weigher 0Seeds Nuts 32 Heads Mixing Granules Multihead Weigher 1Seeds Nuts 32 Heads Mixing Granules Multihead Weigher 2

Seeds Nuts 32 Heads Mixing Granules Multihead Weigher 3Seeds Nuts 32 Heads Mixing Granules Multihead Weigher 4



Seeds Nuts 32 Heads Mixing Granules Multihead Weigher 5
