Name: 10 Head Combination Weigher
Brand: GUANGDONG TOUPACK INTELLIGENT EQUIPMENT CO., LTD
SKU: TY-A-M10-2
Price: 15000.00 USD
Availability: InStock

Home > products > Granules Multihead Weigher >

10 Head Combination Weigher

10 Head granules Combination Weigher

stainless steel Multihead Weigher

Place of Origin:

Guangdong Zhongshan China

Brand Name:

TOUPACK

Model Number:

TY-A-M10-2

Request A Quote

Product Details

Material::

Stainless Steel

Hopper Volume::

1.6L / 2.5L

Max. Speed::

60 WPM

Accuracy::

0.1~1g

HMI::

7'' / 10'' Color Touch Screen

Control System::

MCU / PLC

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

wooden case

Delivery Time

10-25 working days

Payment Terms

T/T, L/C

Supply Ability

100set per month

14 Head Combination 0.8L Granules Multihead Weigher Touch Screen SUS304

Get Best Price

Automatical Rice And Beans Multihead Weigher Packing Machine MCU Control system

Get Best Price

video

Quantitative Coffee Bean Bag Packing Machine With 14 Head Multihead Weigher Automatic Filling

Get Best Price

video

PLC MCU 14 Head High High Precision Multihead Weigher Granule Rice Bag Packing Machine

Get Best Price

Contact Now

Product Description

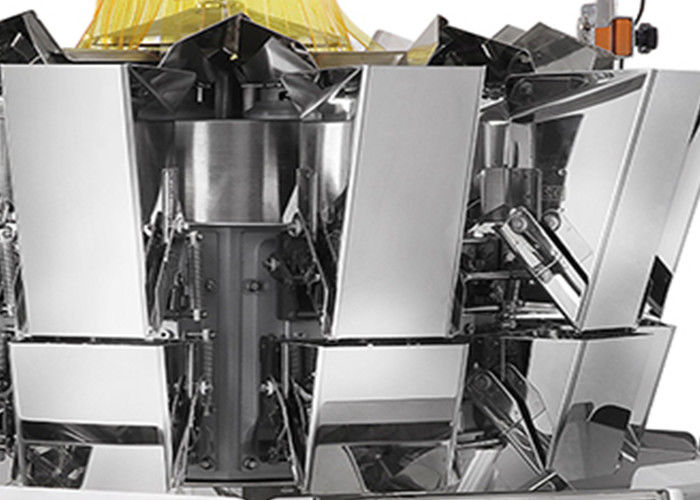

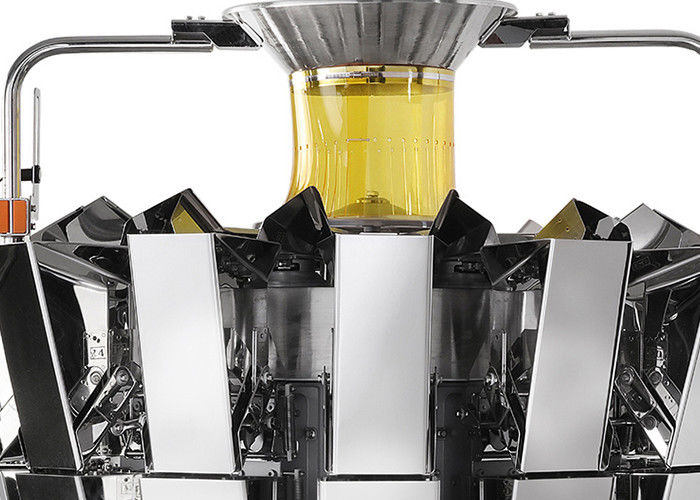

10 Head Combination Weigher

Attribute	Value
Material	Stainless steel
Hopper Volume	1.6L / 2.5L
Max. Speed	60 WPM
Accuracy	0.1~1g
HMI	7'' / 10'' color touch screen
Control System	MCU / PLC

Standard Multihead Weigher For Granules Material, 10 Head Multi Function Combination Weigher

Application

It is suitable for weighing leisure foods such as candy, seeds, jelly, pet foods, puffy foods, pistachio, peanuts, nuts, raisins etc. and big shell nuts, hardwares, dried fruits, frozen foods, snack foods, meatballs and so on.

Technical Characteristics

1.6L/2.5L hopper, suitable for all kinds of common standard materials, can be used widely
Mold making process and uniform design standards contribute to better interchangeability for spare parts
Weighing type for material detection is available, which can make accurate control of feeding time & material thickness and ensure weighing accuracy
Aluminum thickened middle standing enhances the strength of the machine, making the time for stabilizing hoppers much shorter

Main Features

Professional digital weighing module with high precision and good stability
Control system: MCU or PLC (optional)

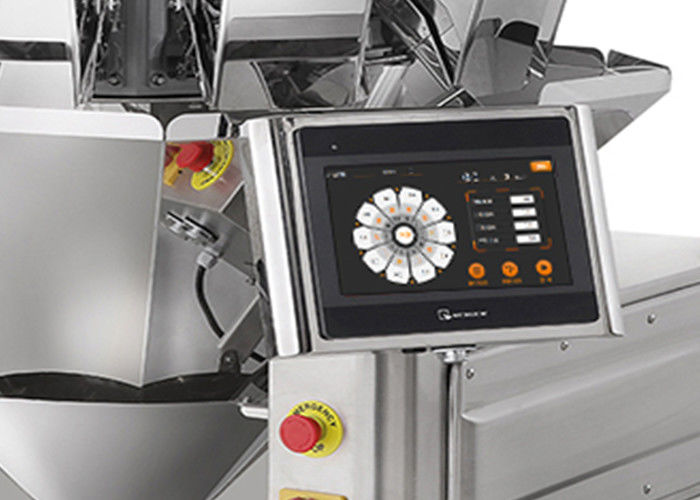

Touch screen interface has different levels of authorized access; up to 16 different languages for choice; application software upgraded through USB
Factory parameters recovery function; 99 preset product parameters to meet different parameter program requirements
Weighing hopper able to discharge in turn to effectively prevent products from blocking
Weighing and counting function to meet diverse needs from customers
Real-time display of amplitude of each vibration pan as well as product weight in each hopper to better monitor the running status of the machine
Machine body with SUS304/316 for option; IP65 dust and waterproof design
Cleaning function: able to make the hoppers in opening state for easy daily cleaning and maintenance
Modular design of control system for easy maintenance and cost-saving

Specifications

Model	TY-A-M10-2; TY-A-P10-2
Max. Weighing (one hopper)	20-1000g
Accuracy	x (0.5)
Min Scale Interval	0.1g
Max. Speed	60 WPM
Hopper Volume	1.6L / 2.5L
Control System	MCU / PLC
HMI	7'' / 10'' color touch screen
Power Supply	AC220V±10% 50HZ/60HZ, 1.5KW
Packing Dimension	1,140(L)1,140(W)1,853(H)mm
Package weight	385kg
