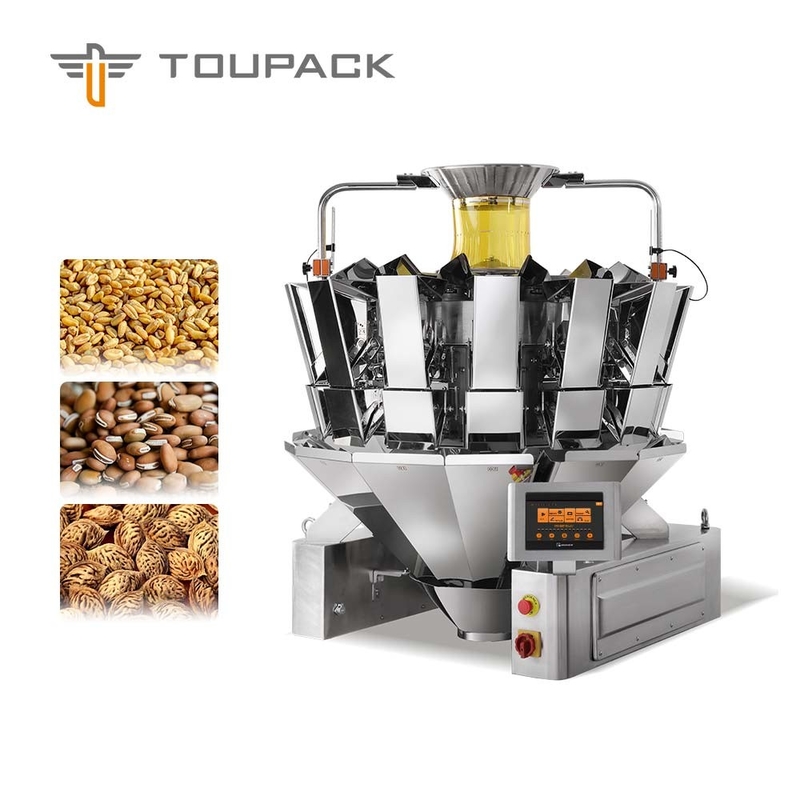

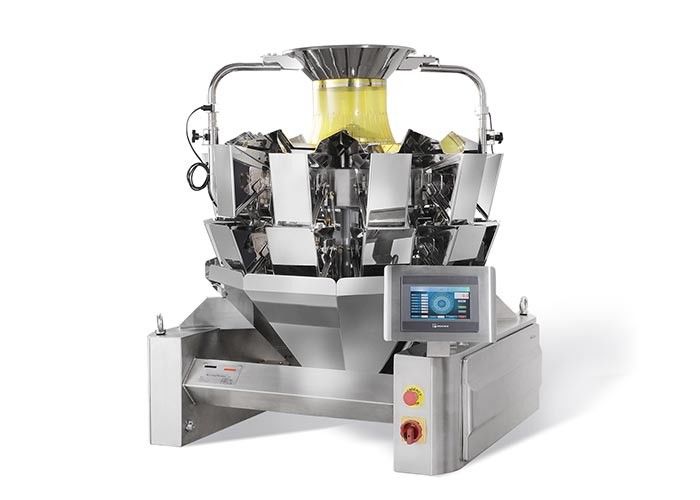

14 Head Granules Multihead Weigher

14 Head Granules Multihead Weigher

14 Head Granules Multihead Weigher

1.6L Multihead Weigher

1.6L Granules Multihead Weigher

Place of Origin:

Guangdong Zhongshan China

Brand Name:


Model Number:

TY-A-M14-1; TY-A-P14-1

Contact Us
Request A Quote
Product Details
Stainless Steel 304
Hopper Volume::
Max. Speed::
120 WPM
7'' / 10'' Color Touch Screen
Control System::
Power Supply:
AC220V ±10% 50HZ/60HZ, 2KW
After Warranty Service:
Video Technical Support, Online Support
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
wooden case
Delivery Time
10-25 working days
Payment Terms
T/T, L/C
Supply Ability
100set per month
Product Description

High Quality 14 Head Granules Weigher With Automatic Counting Machine




This kind of model is suitable for quantitative weighing granule, slice, roll or irregular shape products.

For example: snack food, frozen food, grains, metal, plastic.
Such as candy, seed, chips, pistachio nuts, nutlet, preserved fruit, jelly, forzen foods, biscuit, raisin, almond, chocolate, nuts, corn, pet food, puffy food, small metal and plastic parts etc.


2. Main Functions:

(1). With stable 14-bucket structure, to choose the best combination instantaneously from abundant weight combinations by computer.

(2). With instantaneous reaching of correct calculating by high-precision weighing load cell

(3). The opening and clossing speed of the bucket door can be finely adjusted according to the features of the measured material to prevent crashing and damaging.

(4). All the parts touching the material are made by stainless steel, neatness and health.

(5). Powerful data automatic statistics feature can record the quota of each bags, percent of pass, single bag error for each batch of production.

(6). The bigger weighing range is up to 1000g per dump.

(7). Select device: dimple bucket, collection bucket, printing device, error separation device.

(8). Rejecting function: all over weight or down weight products will be rejected by the weigher automatically, so that will be easy to reweigh and save the packing film.

(9). Strong compatibility: assembling directly on te top of the packaging machine in order to make compact structure.

(10). Multilanguage to choose: JAP, GER, SPA, DAN, DUT, FIN, FRE, POL, IT, TUR etc.

(11). Preset function: max. 50 types, easy to keep your products and weight data for the future use.

(12). To save plenty raw material and labor cost, fast return on investment.




Model TY-A-M14-1; TY-A-P14-1
Max. Weighing (one hopper) 5-200g
Accuracy x (0.5)
Min. Scale Interval 0.1g
Max. Speed 120 WPM
Hopper Volume 0.8L/0.5L
Control System MCU / PLC
HMI 7’’ / 10’’ color touch screen
Power Supply AC220V ±10% 50HZ / 60HZ, 2KW
Packing Dimension 1,370(L)*1,060(W)*1,105(H)mm
Package weight 240kg
14 Head Granules Multihead Weigher 0

14 Head Granules Multihead Weigher 1





14 Head Granules Multihead Weigher 2

14 Head Granules Multihead Weigher 3



14 Head Granules Multihead Weigher 4


14 Head Granules Multihead Weigher 5

14 Head Granules Multihead Weigher 6
