Product Details:
|
| Packing Speed:: | 10-50 Bpm | Bag Size:: | 20-400(L)*100-300(W)mm |
|---|---|---|---|
| Bag Type:: | Pillow Bag, Gusset Bag, Hole Punching Bag, Vacuum Bag | Film Width:: | 140-620mm |
| Film Thickness:: | 0.04-0.09mm | Pulling Belt Type:: | Synchronous Servo Motor Belt Film Pulling |
| High Light: | Granule vffs packing machine,Vertical Granule Packing Machine,Peanuts Granule Packing Machine |
||

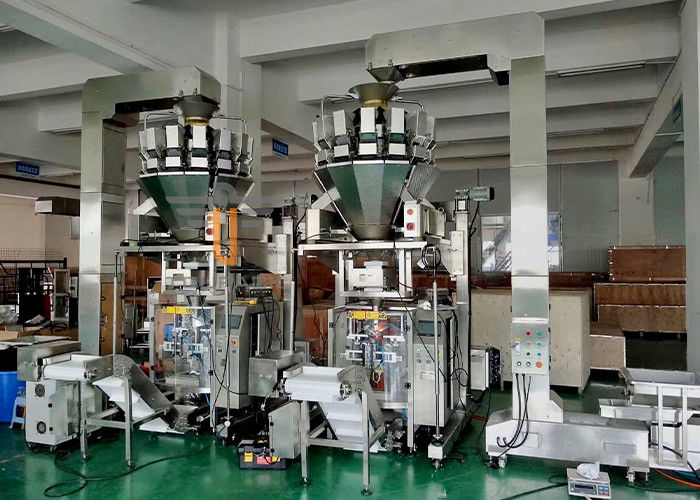

Vertical Automatic Granule Packing Machine for Chips/Candy/Peanuts/Puffed Food/Dried Fruit
Main Function & Features:
1,Continuous weighing packaging design improve the weighing and packing speed.
2,Small target weighing selection of the best combination, combination of high precision and high speed.
3,Greatly reduces the mechanical height and saves the space occupied by the equipment.
4,Servo motor transport membrane control, accurate positioning; automatic electric eye tracking.
What can we pack?
Standard Features:
1. The machine can automatically complete the products conveying, measuring, and feeding, filling and bag forming, date code printing, bag sealing and cutting.
2. Servo-motor driven, twin belt film pulling system.
3. High sensitive fiber optic photo sensor can automatically trace color mark accurately.
4. PLC control system combined with touch screen, can easily set and change the packing parameters. Daily production output and self-diagnostic machine error can be viewed directly from the screen.
5. PID temperature controller monitors heat sealing temperature within +I- 1º C.
6. Selected electrical and pneumatic components from reliable international manufacturer.
7. With CE Certificate comply with CE standard
Optional Parts:
1. Date code printer
2. Gusset pouch forming device
3. Hole puncher
Optional Measuring Filler:
1) Volumetric cup Filler for Granule(sugar, salt, coffee, sesame, condiment, etc. )
2) Electrical Weigher for Granule (pet food, candy, chocolate, biscuit, preserved fruit, melon seeds, chips, peanut, etc. )
2) Auger Screw filler for powder (Coffee powder, milk powder, sugar powder, solid beverage, spice, etc. )
3) Rotary Gear Pump for Liquid and paste (sauce, ketchup, mustard, mayonnaise, etc. )
4) Piston Pump for Liquid (water, juice, cream, shampoo, conditioner, ketchup, etc. )
Specifications:
| Model | 520 VFFS | 620 VFFS | 720 VFFS |
| Packing Speed | 10-60 bpm | 10-50 bpm | 10-50 bpm |
| Bag Size | 50-350(L)*50-250(W)mm | 20-400(L)*100-300(W)mm | 20-450(L)*140-350(W)mm |
| Bag Type | pillow bag, gusset bag, hole punching bag | pillow bag, gusset bag, hole punching bag | pillow bag, gusset bag, hole punching bag |
| Film Width | 120-520mm | 620mm | 720mm |
| Film Thickness | 0.04-0.09mm | 0.04-0.09mm | 0.06-0.12mm |
| Film Material | BOPP/CPP,BOPP/VMCPP,BOPP/PE,PET/VMPET/PE,PET/PE | ||
| Pulling Belt Type | synchronous belt film pulling | synchronous servo motor belt film pulling | synchronous servo motor belt film pulling |
| Air Consumption | 0.8Mps 0.4m3/min | 0.8Mps 0.6m3/min | 200L/min 0.7×105Pa |
| Power Supply | single phase 220V 50HZ/60HZ, 3.4KW / 4.2KW | single phase 220V 50HZ/60HZ, 4.0KW | single phase 220V 50/60HZ, 4.5KW |
| Machine Dimension | 1,560(L)*1,160(W)*1,530(H)mm | 1,250(L)*1,600(W)*1,700(H)mm | 1,360(L)*1,630(W)*1,900(H)mm |
| Machine Weight | 480kg | 800kg | 900kg |
