Product Details:
|
| Packaging Speed:: | 30-50 Bpm | Bag Size:: | 100-160(L)*100-230(W)mm |
|---|---|---|---|
| Sealing Type:: | Reticulate Pattern Sealing; Double Zipper Sealing | Bag Type:: | Flat Bag, Stand-up Bag, Zipper Bag |
| Air Consumption:: | 5-8kgf/cm²; 0.4m³/min | Net Weight:: | 1600kg |
| High Light: | Candy Premade Pouch Packing Machine,Snacks Premade Pouch Packing Machine,Granule Bag Packaging Machine |
||

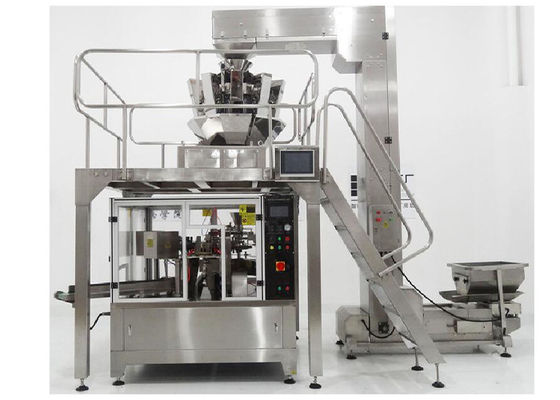

Solid Granule Food Bag Packaging Premade Pouch Packing Machine For Candy Snacks
Main Function& Features:
Premade Pouch Packing Machine is suitable for all kinds of the premade bags, such as pillow bag, 3-side, 4-side and 8-side quad seal bags (box pouch), kraft bags and spout bags and so on.
1. Easy to operate,adopt advanced PLC from Japan Mitsubishi, mate with touch screen and electric control system, the man-machine interface is friendly.
2. Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
3. Safety device: Machine stop at abnormal air pressure, heater disconnection alarm
4. The width of the bags could be adjusted by electrical motor.
5. It matches with the glass safety door. The machine will stop working when you open the door. So that it could protect the safety of operators. At the same time, it could prevent dust.
6. The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification
7. With different feeders changed to pack solid, liquid, thick liquid ,powder and so on
8. The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on Preformed bag made by film and paper.
Optional Features
In order for adapting different requirements, the customized products can be supplied with the optional features as following
| No | Feature | Description |
| 1 | Protection Shield | Configure with a glass shield for safety consideration |
| 2 | Product Settler | In order to ensure the sealing condition, to slight compact the filled product before sealing |
| 3 | Date Coder |
|
| 4 | Air/Nitrogen/CO2 Charging | To charge air or nitrogen after filling but before sealing |
| 5 | Air exhausting | To exhaust air after filling but before sealing |
| 6 | Vacuuming Device | Vacuuming after filling but before sealing |
| 7 | Zipper opening device | To open the zipper before filling |
| 8 | Stand up pouch opening Device | To open the bottom side of the stand-up pouch |
| 9 | Special design seal-bar | Seal-bar with customized pattern |
| 10 | Dust Removing Device | To clean the filled bag and ensure the product clean |
Specifications:
| Model | TY-RP200 | TY-RVP200 |
| Packaging Speed | 30~50 bpm | 50 bpm |
| Bag Size | 100-160(L)*100-230(W)mm | 100-180(L)*120(W)mm |
| Packaging Weight | 1-1.5kg | 1-2kg |
| Sealing Type | reticulate pattern sealing; double zipper sealing | reticulate pattern sealing; double zipper sealing |
| Powder Supply | 3 phase 380V 50HZ, 3KW | 3 phase 380V 50HZ, 5KW |
| Air Consumption | 5-8kgf/cm²; 0.4m³/min | 0.6m³/min |
| Bag Type | flat bag, stand-up bag, zipper bag | flat bag, stand-up bag, zipper bag, paper bag, etc. |
| Net Weight | 1,600kg | 1,800kg |
| Machine Dimension | 1,550(L)*1,350(W)*1,400(H)mm | 1,480(L)*1,320(W)*1,510(H)mm |
Bag type
