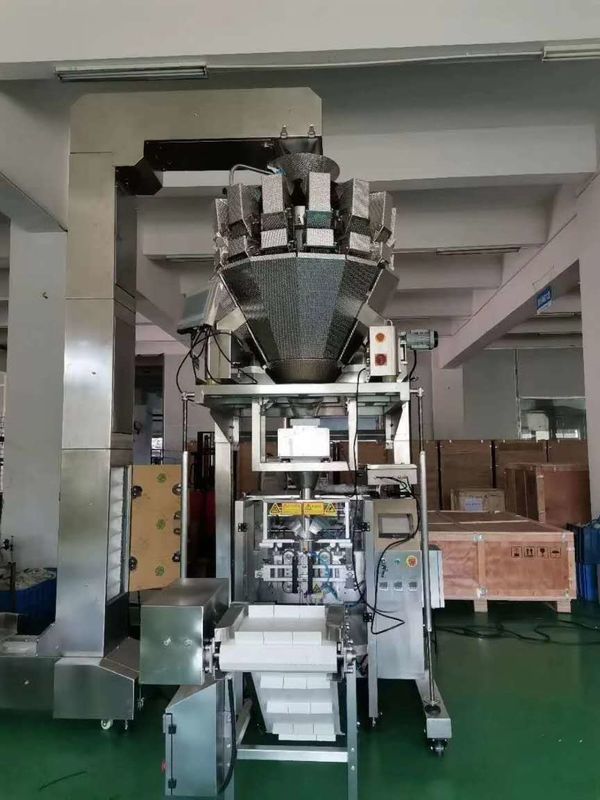

Multi-function Automatic Pouch Snacks Packaging Machine

Multi-function Automatic Pouch Snacks Packaging Machine

Multi-function Automatic Pouch Snacks Packaging Machine

Product Details:

Place of Origin: China
Brand Name: TOUPACK
Certification: CE
Model Number: N/A

Payment & Shipping Terms:

Minimum Order Quantity: 1 Sets
Packaging Details: 4 Cartons
Delivery Time: After comfirm everything 25Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 Sets/Month
Contact Now
Detailed Product Description
Material: SUS304 Packaging: Wood Carton
Machine Compose: Z-Type Bucket Elevator+10/12/14 Head Weigher+Working Platform Application: Meatball,Snack Foods,Puffed Foods And So On

Features:

  • Full-automatic Weigh-Form-Fill-Seal type, efficient and simple to use.
  • Use famous brand electric and pneumatic components, stable and long life circle.
  • Use superior mechanical components, reduce the wear out loss.
  • Easy to install film, auto correcting the excursion of the film.
  • Apply advanced operating system, easy to use and reprogrammable. To be used on Jintian High quality machine, it makes your packing work easily and efficiently.



Specification:
TY-420 Vertical packing machine







Bag length 50-300mm(L)
Bag width 50-200mm(W)
Max width of roll film 420mm
Packing speed 10-60bags/min
Air consumption 0.65Mpa
Gas consumption 0.3m3/min
Voltage 220V/50Hz
Power 2.2KW
Dimension 1080mm(L)*1300mm(W)*1400mm(H)
Machine weight 600KG



10 heads scale(weigher)
Multi-function Automatic Pouch Snacks Packaging Machine 0 Max. Cap.(g) 10-1000g
Weighing Accuracy(g) ±0.5-2g
Max. Weighing Speed 65PPM
Hopper Volume 1600ml
Control Panel 7 "LCD Touch Screen
Options Dimple Plate/Timing Hopper/Printer/Rotary Top Cone
Driving System Step Motor
Power Requirements 220V / 1000W / 50/60HZ / 10A
Packing Dimension(mm) 1620(L)x1100(W)x1100(H)
Gross WGT 420KG



Z-shape material elevator





Model Z-180
Convey speed 3750mm/min
Power 750W
Convey Measure 4T/H(Rice)
Overall size 3000(L)×650(W)×3750(H)mm



Platform for scale(weigher)





Model PL-1A Platform
Maximum Loading Weight 2T-3T
Equipment Size 2000mm*2000mm*2000mm
Net Weight 350kg



Finish product conveyor





Model FC-1A
Convey speed 30M/min
Belt Food grade polypropylene(PP)
Voltage Single-phase AC220V,50HZ
Power 40W
Packing size 1600mm(L)*520mm(W)*1000mm(H)



Application:

Suitable for many kinds of measuring equipments, and package different kinds of products; such as puffy food, shrimp roll, peanut, popcorn, cornmeal, seed and sugar etc. which shape is roll, slice and granule.



Multi-function Automatic Pouch Snacks Packaging Machine 1Multi-function Automatic Pouch Snacks Packaging Machine 2

Multi-function Automatic Pouch Snacks Packaging Machine 3
