Product Details:
|
| Material:: | Stainless Steel 304 | Hopper Volume:: | 1.6L/2.5L |
|---|---|---|---|
| Max. Speed:: | 70 WPM | Accuracy:: | 0.1~1g |
| HMI:: | 7'' / 10'' Color Touch Screen | Control System:: | MCU / PLC |
| Power Supply: | AC220V ±10% 50HZ/60HZ, 1.5KW | After Warranty Service: | Video Technical Support, Online Support |
| Net Wight: | 340KG | Gross Weight: | 420KG |
| High Light: | Multi Head Weigher Packing Machine,10 Head Weigher Packing Machine,PLC Weigher Packing Machine |
||

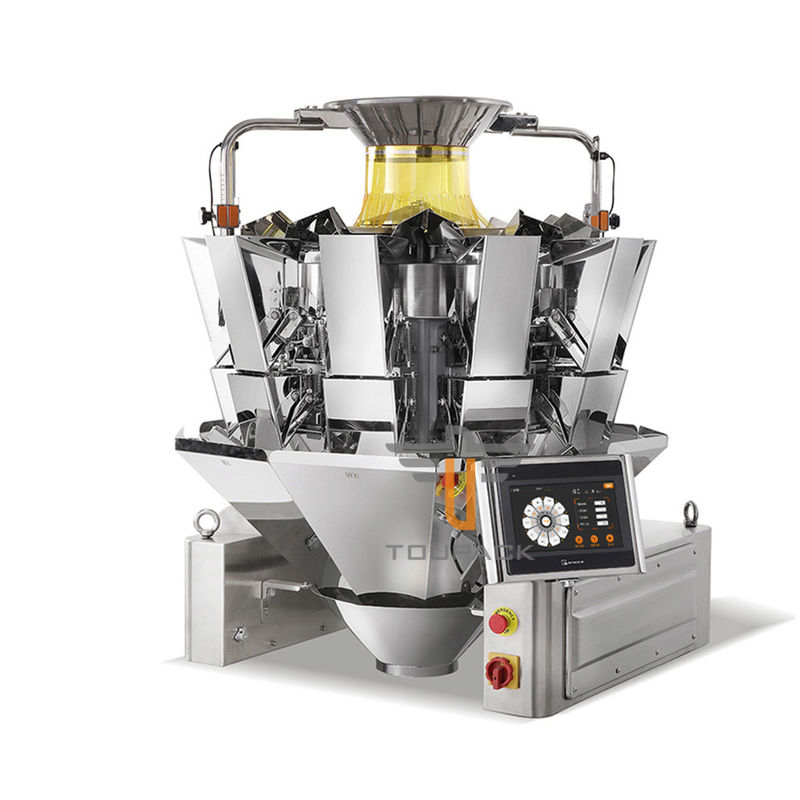

10 Head 1.6L/2.5L Multi-head Weigher Packing Machine with Tech-support
Application:
• Herbal medicine
• Snack food
• Prepared food
• Meat, poltry, and sea food
• Seasoning
• Coffee beans
• Chocolate beans
• Candy
• French fries
Main Function & Features:
• High precision and good stability
• Control system: MCU or PLC (optional)
• Touch screen interface
• Up to 16 different languages
• Application software upgraded through USB
• 99 preset product parametersWeighing hopper able to discharge
• Real-time display of amplitude of each vibration pan
• Machine body with SUS304/316 for option; IP65 dust and waterproof design.
• Cleaning function
• Specifically designed& Compact size
• Easy maintenance and cost-saving
Specifications:
| Model | TY-1A -M10-1；TY-1A -P10-1 |
| Max. Weighing (one hopper) | 5-200g |
| Accuracy | x (0.5) |
| Min. Scale Interval | 0.1g |
| Max. Speed | 60 WPM |
| Hopper Volume | 0.8L |
| Control System | MCU / PLC |
| HMI | 7’’ / 10’’ color touch screen |
| Power Supply | AC220V ±10% 50HZ/60HZ, 1.5KW |
| Packing Dimension | 1,370(L)*1,060(W)*1,205(H)mm |
| Package weight | 220kg |
System Intergration:
>Why choose us:
ㆍOver 12 years weighing and packing machine design & manufacturing experience
ㆍOver 60 countries customers choices
ㆍProfessional team with passion and diligence
ㆍAll-in-one stand service
After-sale services:
1. Manual / Videos of machine installation, adjusting, maintenance are available for you.
2. If any problems happened, telecom or online face to face communication available 24 hours.
3. Engineers & technician Engineer available to serve machines for your countries.
4. The machine will have 1 year warranty of machine.
FAQ:
Q1: Are you a manufacturer or a trading company?
A: We are manufacturer, we have professional factory in Guangdong China
Q2. Do you sell the accessories for products?
A: Yes. We have Match the parts for our testing equipment.
Q3. How about the packing for product? Is it easy damaged during transportation?
A: No. We takes of wooden case and it is very safe.
Q4. What's your main product?
A: We are professional in multi-head weigher, conveyor machine, packing machine, Metal detector, Check weigher and other related electronic products and machine
Q5. How about your after-sales policy?
A: Customer First. We have our own R&D team and we can offer tech-support. All of our products normal warranty is 12months.
Q6. Do you accept customer Logo and customized?
A: we accept kinds of customized and logo of all of our products for customers.
