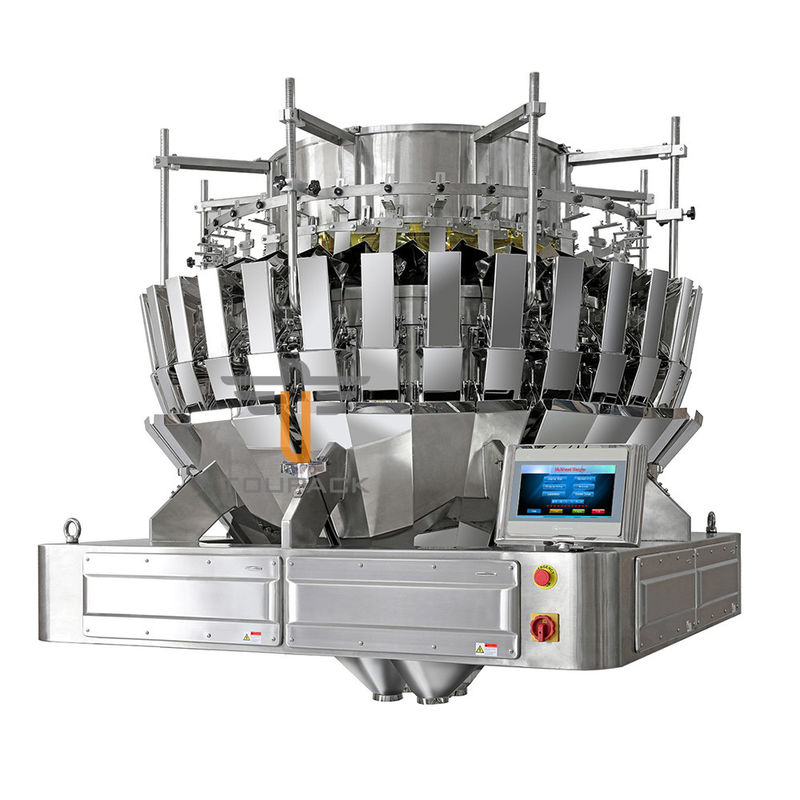

1.6L 2.5L 32 Heads Granules Multihead Weigher

1.6L 2.5L 32 Heads Granules Multihead Weigher
1.6L 2.5L 32 Heads Granules Multihead Weigher
1.6L 2.5L 32 Heads Granules Multihead Weigher 1.6L 2.5L 32 Heads Granules Multihead Weigher 1.6L 2.5L 32 Heads Granules Multihead Weigher

Large Image :  1.6L 2.5L 32 Heads Granules Multihead Weigher

Product Details:
Place of Origin: Guangdong Zhongshan China
Brand Name: TOUPACK
Model Number: TY-A-M32-1; TY-A-P32-1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 10-25 working days
Payment Terms: T/T, L/C
Supply Ability: 100set per month

1.6L 2.5L 32 Heads Granules Multihead Weigher

Description
Material:: Stainless Steel 304 Hopper Volume:: 0.8L/1.6L/2.5L
Max. Speed:: 30~80 WPM Accuracy:: 0.1g
HMI:: 7'' / 10'' Color Touch Screen Control System:: MCU / PLC
Power Supply: AC220V ±10% 50HZ/60HZ, 2KW After Warranty Service: Video Technical Support, Online Support
High Light:

32 Heads Granules Multihead Weigher

,

2.5L Granules Multihead Weigher

,

SS304 Granules Multihead Weigher

32 Heads Granules Multihead Blending Weigher 0.8L/1.6L/2.5L




Application:

Suitable for quantitative weighing of sticky material such as gum drop, spun sugar, meatball, vegetable, screw etc.
According to the characteristic of material can be fine adjusted the opening and closing speed of the bucket door to avoid crush and block.

High speed and high accuracy combination, select the best combination from plenty weights combination through computerized calculation.
Fine adjusted the opening and closing speed of the bucket door to avoid crush and block.
Quantitative weighing function.



Features :
1.Can use for 2 in 1, 3 in 1 and 4 in 1 mixing products.
2.More hopper to combination,higher accuracy
3.The weight of the mixing can be automatically compensated by the last products.
4.High accuracy and tailored load cell.
5.Intelligent alarm diagnosis.
6.High speed stagger dump function.
7.New Modular and CAN bus technology, more efficient and stable.
8.Modbus Industry communication protocol.

Techanical and Character :
1. Upper storage funnel is divided to weight two different products.
2. Separate main vibrator, control the thickness of product independently.
3. Integral machine frame and machine cabinet contributes to more stability and higher accuracy.
4. Uniform design standards, and mould processing, contribute to better interchangeability for spare
parts.
5. Stable actuator design reduce the mechanical vibration and improves the load cell value accuracy.



Specifications:


Model TY-A-M32-1; TY-A-P32-1
Max. Weighing (one hopper) 5-200g
Accuracy x (0.5)
Min. Scale Interval 0.1g
Max. Speed 30~80 WPM
Hopper Volume 0.8L/1.6L/2.5L
Control System MCU / PLC
HMI 7’’ / 10’’ color touch screen
Power Supply AC220V ±10% 50HZ / 60HZ, 2KW
Packing Dimension 1,370(L)*1,060(W)*1,105(H)mm
Package weight 240kg

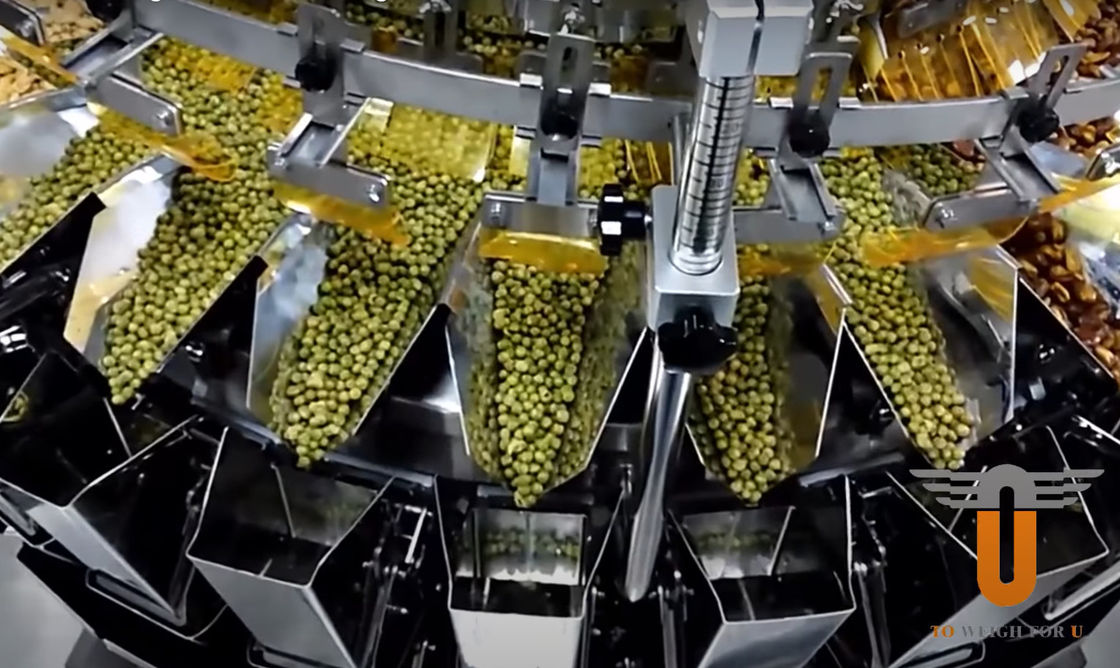

Detail:
1.6L 2.5L 32 Heads Granules Multihead Weigher 0
1.6L 2.5L 32 Heads Granules Multihead Weigher 1

1.6L 2.5L 32 Heads Granules Multihead Weigher 2
1.6L 2.5L 32 Heads Granules Multihead Weigher 3

System Integration:
1.6L 2.5L 32 Heads Granules Multihead Weigher 4



>Why choose us:



Over 12 years weighing and packing machine design & manufacturing experience

ㆍOver 60 countries customers choices

ㆍProfessional team with passion and diligence

ㆍAll-in-one stand service





After-sale services:



1. Manual / Videos of machine installation, adjusting, maintenance are available for you.

2. If any problems happened, telecom or online face to face communication available 24 hours.

3. Engineers & technician Engineer available to serve machines for your countries.

4. The machine will have 1 year warranty of machine.




FAQ:


Q1: Are you a manufacturer or a trading company?

A: We are manufacturer, we have professional factory in Guangdong China

Q2. Do you sell the accessories for products?

A: Yes. We have Match the parts for our testing equipment.

Q3. How about the packing for product? Is it easy damaged during transportation?

A: No. We takes of wooden case and it is very safe.

Q4. What's your main product?

A: We are professional in multi-head weigher, conveyor machine, packing machine, Metal detector, Check weigher and other related electronic products and machine

Q5. How about your after-sales policy?

A: Customer First. We have our own R&D team and we can offer tech-support. All of our products normal warranty is 12months.

Q6. Do you accept customer Logo and customized?

A: we accept kinds of customized and logo of all of our products for customers.
