IP66 100KV Food X Ray Inspection Systems Automatic X Ray Detector

IP66 100KV Food X Ray Inspection Systems Automatic X Ray Detector

100KV Food X Ray Inspection Systems

IP66 Food X Ray Inspection Systems

Place of Origin:

Guangdong Zhongshan China

Brand Name:

TOUPACK

Certification:

CE

Model Number:

TTX-2417K100

Contact Us
Request A Quote
Product Details
X-ray Light Source::
150W/100KV
Detecting Width::
240mm
Detecting Height::
170mm
Accuracy::
SUS Ball Φ0.3mm, SUS Wire Φ0.2*2mm
Transfer Speed::
10-70m/ Min
HMI::
17 Inch Colorful Touch Screen
Connectivity::
LAN Port, USB Port
X-ray Leakage::
1 Millisievert / Hour
System:
Windows 7 Food Inspection System
Power Supply:
AC220V±10% 50Hz(60Hz) 1.5kVA Max
Type:
Food X Ray Inspection Systems
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
wooden case
Delivery Time
10-25 working days
Payment Terms
T/T, L/C
Supply Ability
30 sets per month
Product Description

Food X Ray Inspection Systems Automatic X Ray Detector Food Safety High Accuracy



X Ray Inspection System Application:



It is used for detecting metallic and non-metallic material and defects in food, chemical, pharmaceutical industry. such as glass. ceramics, stones, bones, hard rubber and plastic.



X Ray Inspection System Features:



1. Up to 8 grades of image processing to achieve the best product adaptability and stability.

2. Able to shielding edge, desiccant, canned food and aluminum clamp for ham sausage.

3. X-ray leakage meets US FDA and European CE standards

4. Air conditioning and IP66.

5. Easy to dismantle and clean.

6. Optional rejection





X Ray Inspection System Configuration:

  1. Frequency converter: Danfoss (Danmark)
  2. X ray collector: Detection Technology(DT) (Finland)
  3. Industrial air conditioning: Pfannenberg (Germany)
  4. X ray: VJ GROUP (USA)
  5. PLC: MITSUBISHI (Japen)
  6. Limit switch: OMRON (Japen)



X Ray Inspection System Specifications:



Model TTX-2417K100 TTX-4017K100 TTX-5026K100 TTX-6035K100
X-ray Light Source 150W/100KV 210W/100KV 350W/100KV
Detecting Width 240mm 400mm 500mm 600mm
Detecting Height 170mm 170mm 260mm 350mm
Accuracy SUS ball Φ0.3mm, SUS wire Φ0.2*2mm
Transfer speed 10-70m/ min
HMI Germany 17 inch touch screen
Connectivity LAN Port, USB Port
Working environment Working temperature:-10℃~40℃(Cooling method:Air conditioned cooling),
Working humidity:30%~90%,No dewing (Humidity controlling: Anti-humidity device)
X-ray Leakage 1 millisievert / hour
Protection method Lead-free protective curtain(easy for disassembling)
Alarming method Acousto-optic alarming
Power Supply AC220V ± 10% 50Hz(60Hz) 1.5kVA Max
Body Material SUS304







X Ray Inspection System Details:

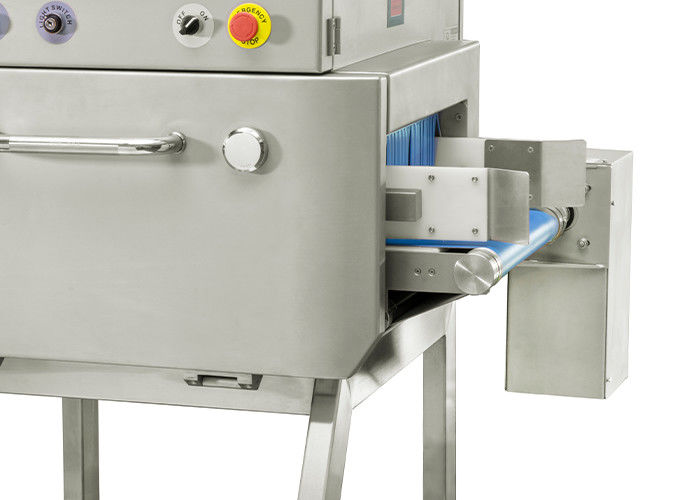

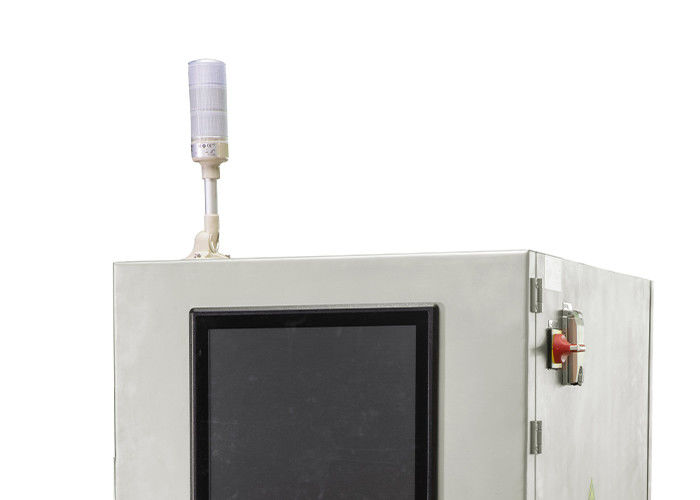

IP66 100KV Food X Ray Inspection Systems Automatic X Ray Detector 0IP66 100KV Food X Ray Inspection Systems Automatic X Ray Detector 1

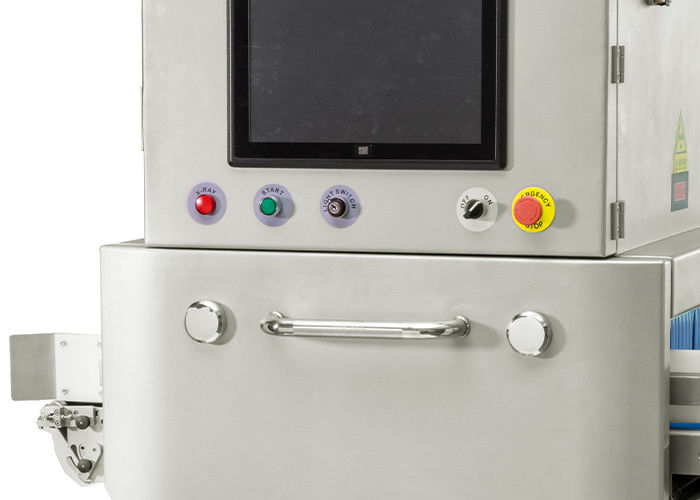

IP66 100KV Food X Ray Inspection Systems Automatic X Ray Detector 2



About us: Food X Ray Inspection Systems Automatic X Ray Detector Food Safety High Accuracy

IP66 100KV Food X Ray Inspection Systems Automatic X Ray Detector 3IP66 100KV Food X Ray Inspection Systems Automatic X Ray Detector 4IP66 100KV Food X Ray Inspection Systems Automatic X Ray Detector 5



Why choose us:



ㆍOver 12 years weighing and packing machine design & manufacturing experience



ㆍOver 60 countries customers choices



ㆍProfessional team with passion and diligence



ㆍAll-in-one stand service




After-sale services:



1. Manual / Videos of machine installation, adjusting, maintenance are available for you.



2. If any problems happened, telecom or online face to face communication available 24 hours.



3. Engineers & technician Engineer available to serve machines for your countries.



4. The machine will have 1 year warranty of machine.

FAQ:

Q1: Are you a manufacturer or a trading company?

A: We are manufacturer, we have professional factory in Guangdong China

Q2. Do you sell the accessories for products?

A: Yes. We have Match the parts for our testing equipment.

Q3. How about the packing for product?

A: We takes of wooden case and it is very safe.

Q4. Do you accept customer Logo and customized?

A: we accept kinds of customized and logo of all of our products for customers.

Q5. What's your main product?

A: We are specialized in multi-head weigher, conveyor machine, packing machine, Metal detector, Check weigher and other related electronic products and machine

Q6. How about your after-sales policy?

A: Customer First. We have our own R&D team and we can offer tech-support. All of our products normal warranty is 12months.
