Name: Premade Pouch Packing Machine15 Bags / Min Oil Liquid Food Pouch Filling Sealing Machine Mini Doypacker
Brand: GUANGDONG TOUPACK INTELLIGENT EQUIPMENT CO., LTD
SKU: TY-DP300 Liquid Pouch Filling Sealing Machine
Price: 7,500.00 USD
Availability: InStock

Home > products > Premade Pouch Packing Machine >

Premade Pouch Packing Machine15 Bags / Min Oil Liquid Food Pouch Filling Sealing Machine Mini Doypacker

1.2KW Liquid Pouch Filling Sealing Machine

15 Bags / Min Pouch Filling Sealing Machine

0.3m3/min Liquid Pouch Sealing Machine

Place of Origin:

Guangdong Zhongshan China

Brand Name:

TOUPACK Premade Pouch Packing Machine

Certification:

Model Number:

TY-DP300 Liquid Pouch Filling Sealing Machine

Request A Quote

Premade Pouch Packing Machine15 Bags / Min Oil Liquid Food Pouch Filling Sealing Machine Mini Doypacker

Product Details

Packaging Speed::

5-30 Bpm

Bag Size::

100-430(L)*80-300(W)mm

Sealing Type::

Straight Grain Pouch

Bag Type::

Stand Up Pouch, Premade Pouch, Zipper Bag, Gusset Bag, Falt Bottom Punch

Air Consumption::

5-8kgf/cm²; 0.4m³/min

Type:

Liquid Pouch Filling Sealing Machine

Function:

Filling, Sealing, Printing

Material:

Stainless Steel 304 Pouch Filling Machine

Atomatic Grade:

Automatic Liquid Pouch Filling Machine

Product Name:

Liquid Filling Sealing Packing Machine Doypacker

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

wooden case

Delivery Time

10-25 working days

Payment Terms

T/T, L/C

Supply Ability

30set per month

Snacks Zipper Pouch Packing Machine Premade Pouch Filling Sealing Equipment

Get Best Price

Premade Pouch Packing Machine15 Bags / Min Oil Liquid Food Pouch Filling Sealing Machine Mini Doypacker

Get Best Price

video

Fruit Hareware Vegetable Net Bag Packing Machine PLC Touch Screen For Packaging Tie

Get Best Price

video

Semi Automatic Net Packaging Machine Green Lemon Fruit Vegetable Mesh Bag Package Equipment

Get Best Price

Contact Now

Product Description

Premade Pouch Packing Machine15 Bags / Min Oil Liquid Food Pouch Filling Sealing Machine Mini Doypacker

Product Specifications

Attribute	Value
Packaging Speed:	5-30 bpm
Bag Size:	100-430(L)*80-300(W)mm
Sealing Type:	straight grain pouch
Bag Type:	Stand up pouch, Premade pouch, Zipper bag, gusset bag, flat bottom pouch
Air Consumption:	5-8kgf/cm²; 0.4m³/min
Type	Liquid Pouch Filling Sealing Machine
Function	Filling, sealing, printing
Material	Stainless steel 304 Pouch filling machine
Automatic grade	Automatic liquid pouch filling machine
Product name	liquid filling sealing packing machine doypacker

Main Features

Easy to operate and easy to replace the bag
Low maintenance cost
No bag prompting function
Self-diagnosis function of open the bag failed (The bag can be reused)
Positioning (anti-dropping) function of hopper
Warning function of cartridge heater fault
Warning function of cylinder fault

Technical Specifications

No	Feature	Description
1	Pouch material	Multilayer composite Premade Bag e.g: PET/PE
2	Pouch type	3 side seal bag, stand up pouch, zipper bag, flat bottom pouch
3	Size range	80mm≤W≤300mm 100mm≤L≤430mm
4	Speed	0-15 bags/min
5	Sealing type	Straight grain, pitch is 1mm (Optional reticulate)
6	Sealing width	10mm(5--20mm can be customized)
7	Power supply	220V, Single-phase, 50/60HZ, 1.2KW
8	Air pressure	0.65Mpa
9	Air consumption	0.3m³/min (Standard machine, no additional function)
10	Packaging dimension	18606001650mm(Export non-fumigation wooden case)

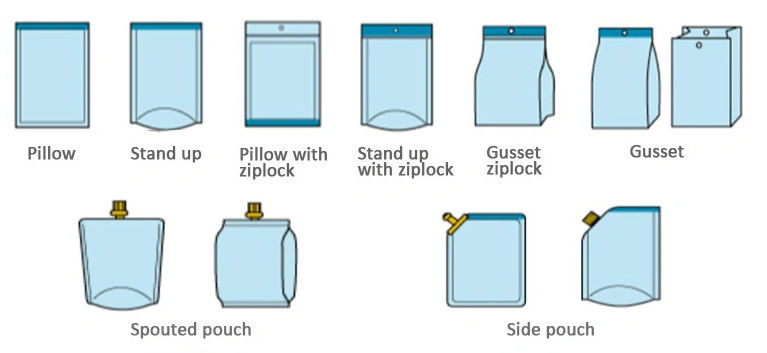

Mini Doypack Bag Types

Working Flow

giving bag → coding → opening → filling 1 → filling 2 → auxiliary → exhaust → heat sealing → forming and output product

Applicable Scope

Block material: bean curd cake, fish, eggs, candy, red jujube, cereal, chocolate, biscuit, peanut, etc
Granular type: granular drug, capsule, seeds, chemicals, sugar, chicken essence, melon seeds, nut, pesticide, fertilizer
Powder type: milk powder, glucose, seasoning, washing powder, chemical materials, fine white sugar, pesticide, fertilizer, etc
Liquid type: detergent, rice wine, soy sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, chili sauce
Other bagging materials

Associated Equipment

Elevator: inclined elevator, Z type elevator, bowl elevator, single bucket elevator, etc.
Filling machine: multihead weigher, linear weigher, auger filler, etc.
Working platform: adjustable platform, simple platform, etc.
Exit conveyor / Check weigher / metal detector / Rotable table

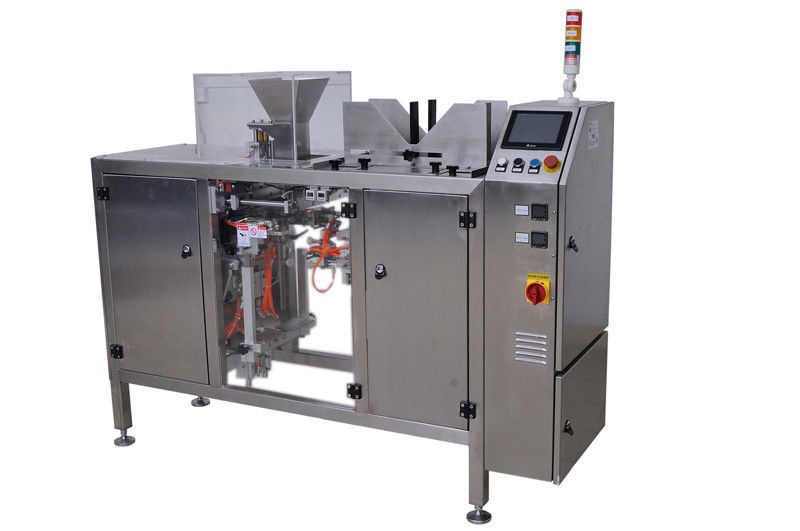

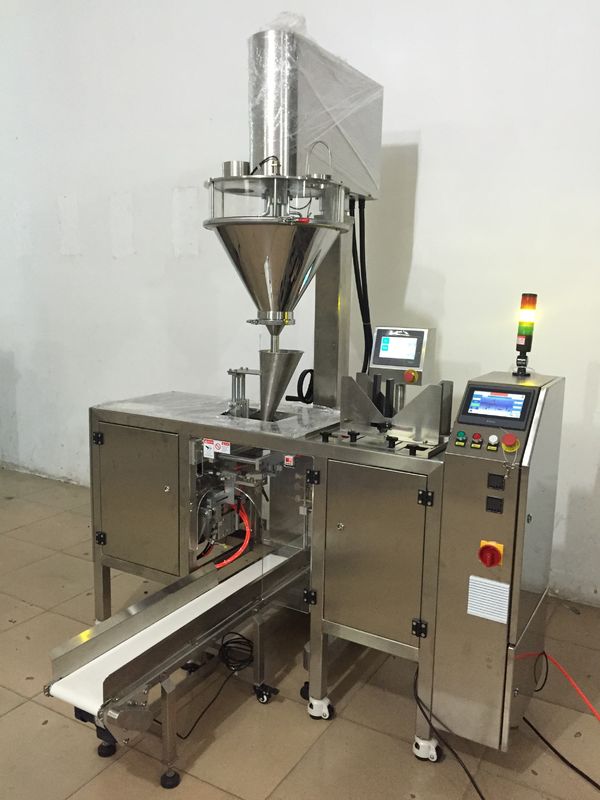

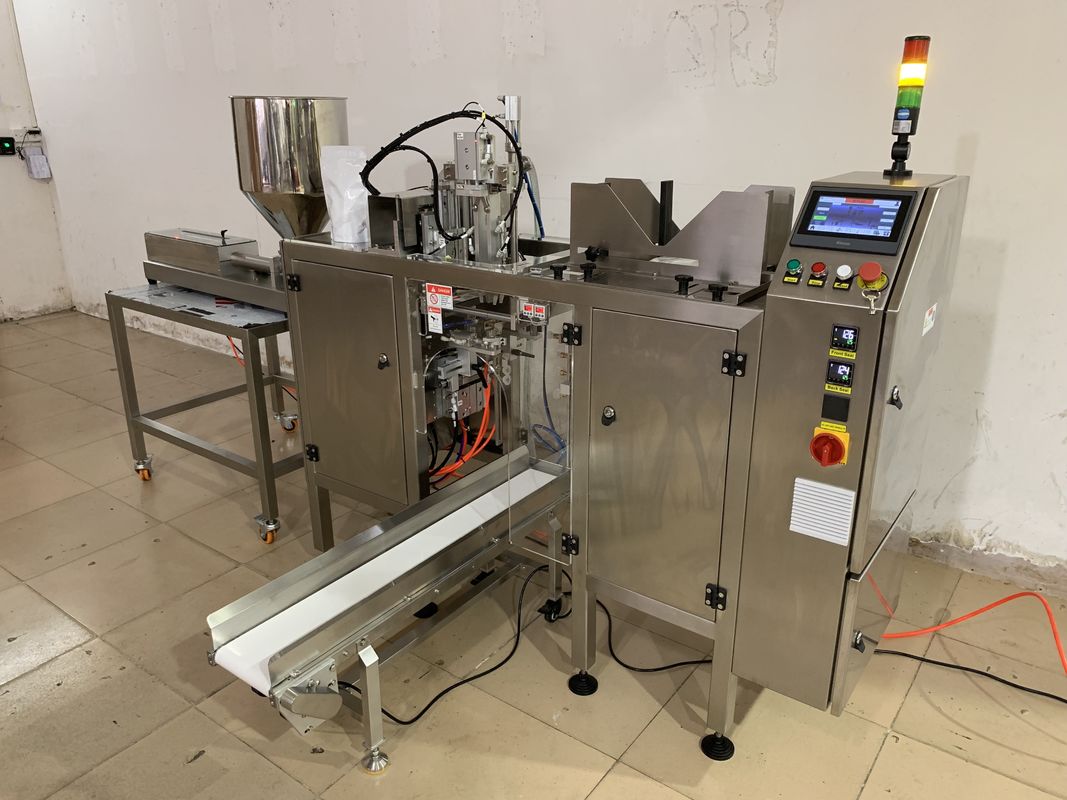

Machine Details

Office & Workshop

Why Choose Us

Over 12 years weighing and packing machine design & manufacturing experience
Over 60 countries customers choices
Professional team with passion and diligence
All-in-one stand service

After-sale Services

Manual / Videos of machine installation, adjusting, maintenance are available for you.
If any problems happened, telecom or online face to face communication available 24 hours.
Engineers & technician Engineer available to serve machines for your countries.
The machine will have 1 year warranty of machine.

Frequently Asked Questions

Q1: Are you a manufacturer or a trading company?

A: We are manufacturer, we have professional factory in Guangdong China

Q2. Do you sell the accessories for products?

A: Yes. We have Match the parts for our testing equipment.

Q3. How about the packing for product?

A: We takes of wooden case and it is very safe.

Q4. Do you accept customer Logo and customized?

A: we accept kinds of customized and logo of all of our products for customers.

Q5. What 's your main product?

A: We are specialized in multi-head weigher, conveyor machine, packing machine, Metal detector, Check weigher and other related electronic products and machine

Q6. How about your after-sales policy?

A: Customer First. We have our own R&D team and we can offer tech-support. All of our products normal warranty is 12months.
