Product Details:
|
| Warranty: | 1 Year | Application: | Pillow Bag, Gusset Bag |
|---|---|---|---|
| Film Width: | 120~720mm | Function: | Form Fill Seal |
| Packing Speed: | 10-60 Bpm | Power: | 220V 50/60HZ; 380V 50/60HZ |
| Material: | Stainless Steel | ||
| High Light: | 10BPM Verticial Form Fill Seal Packaging Machine,4.2KW Verticial Form Fill Seal Packaging Machine,V520 VFFS Packaging Machine |
||

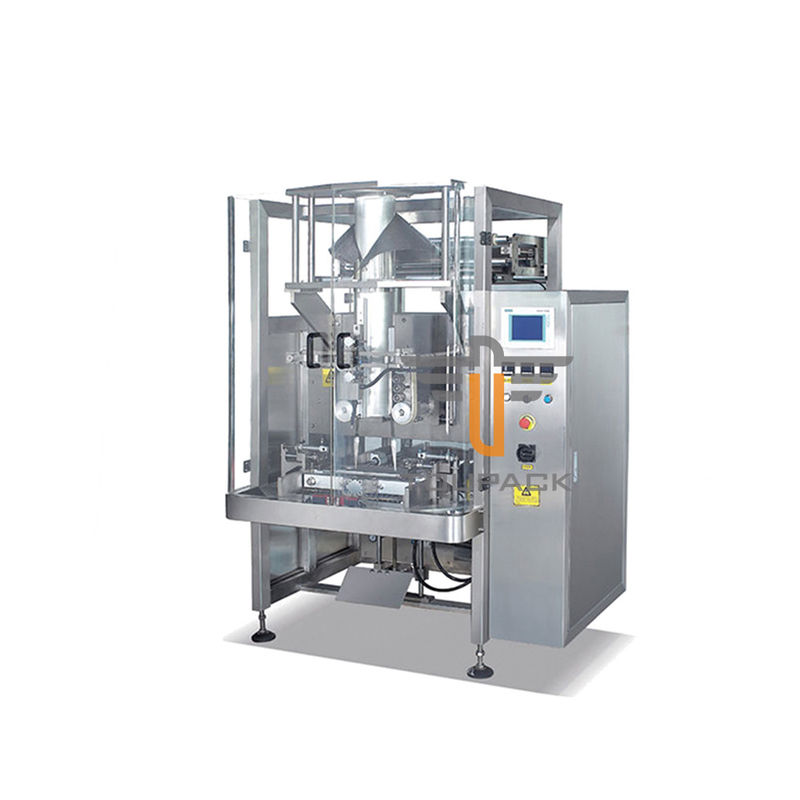

High speed VFFS machine V520 automatic verticial form fill seal packaging machines Vertical film seal packaging machine bagger pillow bag gusset bag
Features:
1. PLC control system
2. Human-machine interface, easy operating visual touch screen.
3. Servo film running system, pneumatic horizontal sealing control, precise positioning, excellent machine performance and nice packaging.
4. Perfect automatic alarm and protection function to minimize the loss.
5. Full packaging process of measuring, feeding, filling, bag forming and date printing in one automatic operation by the machine equipped with measurement device.
6. Bag type: pillow bag, gusset bag and hole-punching bag, etc.
7. Maximize the reliability and intelligence of the whole machine.
Application:
It is suitable for dosing and packaging fluidic or low fulidity materials, like milk powder, albumen powder, rice powder, coffee powder, solid drink, condiment, white sugar, dextrose, food additive, corn powder, icing powder etc.
Meanwhile, It is also sutiable for dosing and packaging pharmaceuticals, fodder, detergent powder, agriculture pesticide and so on.
High speed VFFS machine V520 specifications:
| Model | 520VFFS | 620VFFS | 720VFFS |
| Packing Speed | 10-60BPM | 10-50BPM |
10-50BPM |
| Bag Size | 50-350(L)*50-50-250(W)mm | 20-400(L)*50-50-250(W)mm | 20-450(L)*140-350(W)mm |
| Bag Type | pillow bag, gusset bag, hole punching bag | ||
| Film Width | 120-520mm | 620mm | 720mm |
| Film Thickness | 0.04-0.09mm | 0.04-0.09mm | 0.06-0.12mm |
| Film Material | BOPP/CPP,BOPP/PE,BOPP/MCPP,PET/VMPET/PE,PET/PE | ||
| Pulling Belt Type | synchronous belt film pulling | synchronous servo motor belt film pulling | synchronous servo motor belt film pulling |
| Air Consumption | 0.8Mps 0.4m³/min | 0.8Mps 0.6m³/min | 200L/min0.7*105Mpa |
| Power Supply | single phase 220V 50HZ/60HZ, 3.4/4.2KW | single phase 220V 50HZ/60HZ, 4.0KW | single phase 220V 50HZ/60HZ, 4.5KW |
| Machine Dimension | 1,560(L)*1160(W)*1,530(H)mm | 1,250(L)*1600(W)*1,700(H)mm | 1,360(L)*1630(W)*1,900(H)mm |
| Machine Weight | 480KG | 800KG | 900KG |

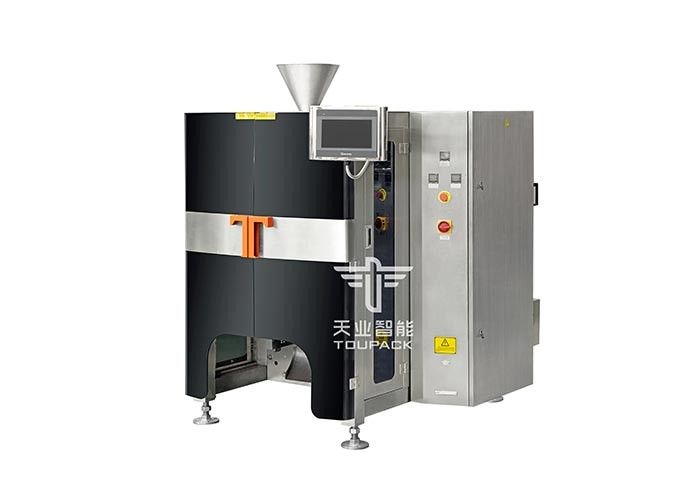

Vertical film seal packaging machine V420 automatic bagger pillow bag gusset bag
Details:
About us:
>>Why choose us:
ㆍOver 12 years weighing and packing machine design & manufacturing experience
ㆍOver 60 countries customers choices
ㆍProfessional team with passion and diligence
ㆍAll-in-one stand service
After-sale services:
1. Manual / Videos of machine installation, adjusting, maintenance are available for you.
2. If any problems happened, telecom or online face to face communication available 24 hours.
3. Engineers & technician Engineer available to serve machines for your countries.
4. The machine will have 1 year warranty of machine.
FAQ:
Q1: Are you a manufacturer or a trading company?
A: We are manufacturer, we have professional factory in Guangdong China
Q2. Do you sell the accessories for products?
A: Yes. We have Match the parts for our testing equipment.
Q3. How about the packing for product? Is it easy damaged during transportation?
A: No. We takes of wooden case and it is very safe.
Q4. What's your main product?
A: We are professional in multi-head weigher, conveyor machine, packing machine, Metal detector, Check weigher and other related electronic products and machine
Q5. How about your after-sales policy?
A: Customer First. We have our own R&D team and we can offer tech-support. All of our products normal warranty is 12months.
Q6. Do you accept customer Logo and customized?
A: we accept kinds of customized and logo of all of our products for customers.
