Product Details:
|
| Application:: | Granular, Powdered Or Other Types | Power Requirement:: | 220V/110V, /50/60HZ/10A |
|---|---|---|---|
| Max Speed:: | 50 P/M | After Warranty Service:: | Video Technical Support, Online Support,18months Free Parts |
| Building Material:: | 304SUS Material | Hopper Volume:: | 10.0L |
| Max. Weighing:: | 10kg | ||
| High Light: | 4 Head Washing Powder Linear Weigher,50P/M Washing Powder Linear Weigher,10'' Color Touch Screen Linear Weigher |
||

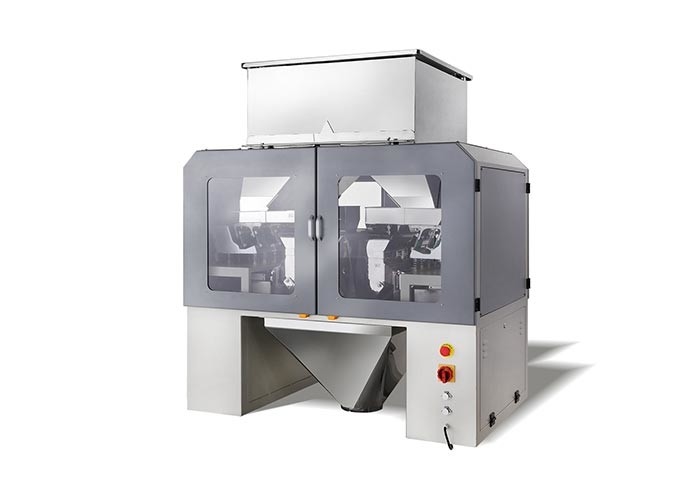

4 Head washing powder linear Weigher
Application:
Applicable for weighing of different kinds of granular, powdered products such as sugar, rice, chicken essence seasoning, seeds, salt, powdered milk / coffee / seasoning, etc.
Main Function & Features:
1. 10” color touch screen with multi-language operating system. Software can be upgraded through USB.
2. SUS 304 / 316 body structure for option. IP65 water-proof design.
3. Factory parameter setup recovery. 99 product parameters can be preset to meet different parameter program requirements.
4. Amplitude can be automatically adjusted for easy operation.
5. Each hopper can function as one head weigher.
6. Meet four kinds of blended product weighing and packaging.
7. Open-close mode of step motor drive is applied for 10.0L hopper.
8. Pneumatic open-close mode is applied for 10L hopper.
9. Modular control system design for easy maintenance and low cost.
Specifications:
| Model | TY-A-M4L10 | |
|
Max. Weighing (one hopper) |
2000g | |
| Accuracy | x (0.5) | |
| Min. Scale Interval | 0.1g | |
| Max. Speed | 50 p/M | |
| Hopper Volume | 10L | |
| Control System | MCU | |
| HMI | 10” touch screen | |
| Power Supply | AC220V ±10% 50HZ/60HZ, 1KW |
Service:
Pre-sale Inquiry
We will help you customize an appropriate weighing and packing solution based on your requirements and specific circumstances.
Installation Service
We will send professional technicians for on-site installation and commissioning upon request.
Maintenance Service
Toupack provides long term maintenance service,any maintenance parts are free within the warranty period and only charge parts expensed if your warranty has expired.
Employee Training
Toupack offers free technical training for our clients to fully master correct product maintenance techniques.
Custom Service
Toupack designs custom production lines for our clients according to specific weighing and packing products,output,packing styles,factory area and other factors.
