SUS304 Weigher Packing Machine For Snacks Frozen Food

SUS304 Weigher Packing Machine For Snacks Frozen Food

SUS304 Weigher Packing Machine

Frozen Food Weigher Packing Machine

Snacks Weigher Packing Machine

Place of Origin:


Brand Name:




Model Number:


Contact Us
Request A Quote
Product Details
Wood Carton
Machine Compose:
Packing Machinery
Meatball,Snack Foods,Puffed Foods And So On
Payment & Shipping Terms
Minimum Order Quantity
1 Sets
Packaging Details
4 Cartons
Delivery Time
After comfirm everything 25Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
20 Sets/Month
Product Description

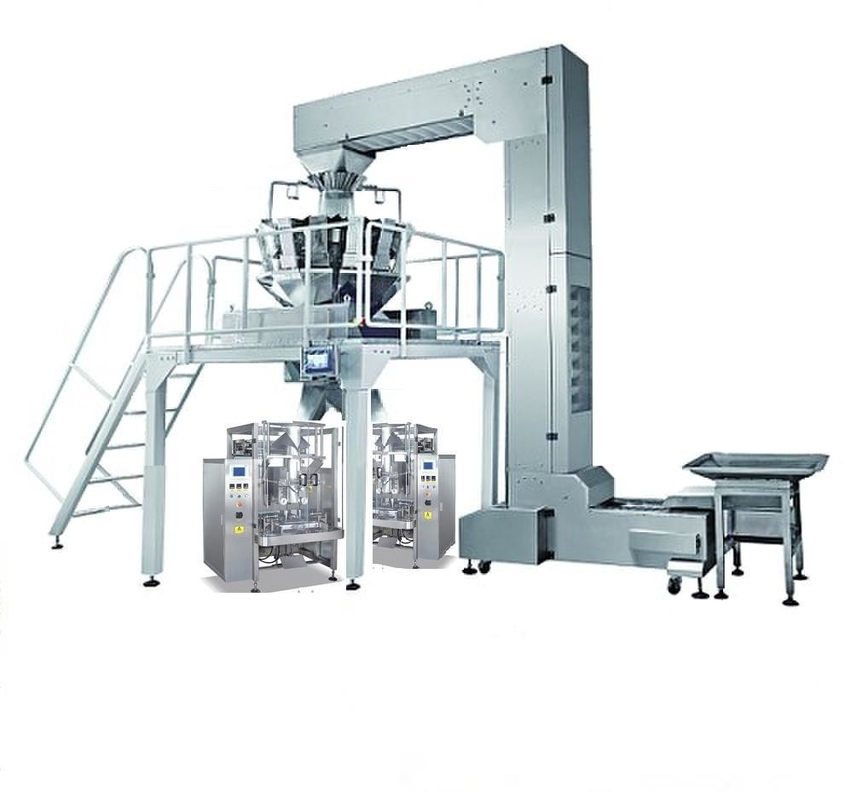

Weigher and packing machine for snacks /frozen food




  • Full-automatic Weigh-Form-Fill-Seal type, efficient and simple to use.
  • Use famous brand electric and pneumatic components, stable and long life circle.
  • Use superior mechanical components, reduce the wear out loss.
  • Easy to install film, auto correcting the excursion of the film.
  • Apply advanced operating system, easy to use and reprogrammable. To be used on Jintian High quality machine, it makes your packing work easily and efficiently.


TY-420 Vertical packing machine




Bag length 50-300mm(L)
Bag width 50-200mm(W)
Max width of roll film 420mm
Packing speed 10-60bags/min
Air consumption 0.65Mpa
Gas consumption 0.3m3/min
Voltage 220V/50Hz
Power 2.2KW
Dimension 1080mm(L)*1300mm(W)*1400mm(H)
Machine weight 600KG

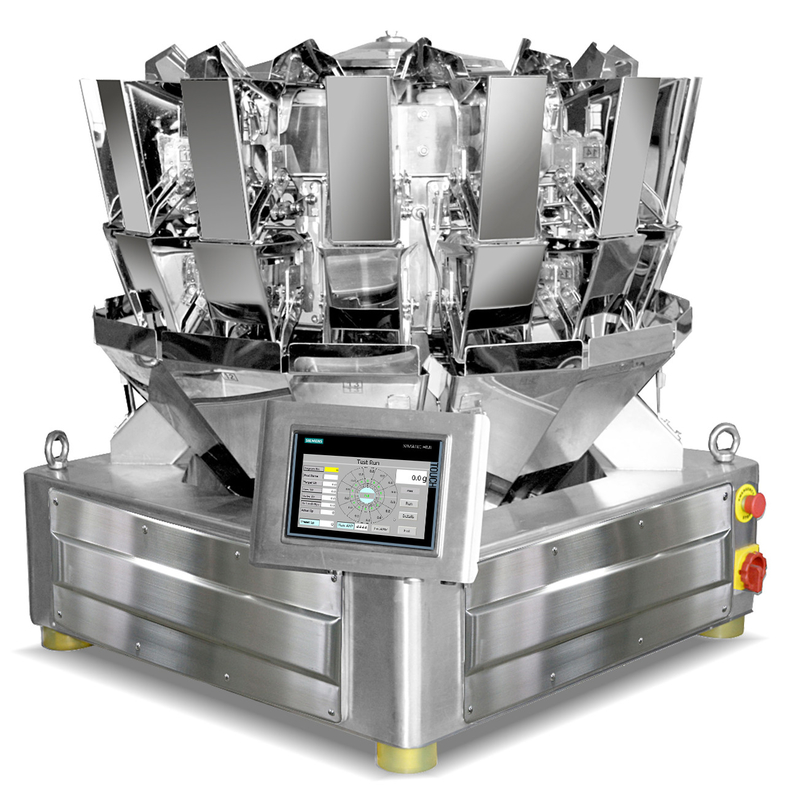

10 heads scale(weigher)
SUS304 Weigher Packing Machine For Snacks Frozen Food 0 Max. Cap.(g) 10-1000g
Weighing Accuracy(g) ±0.5-2g
Max. Weighing Speed 65PPM
Hopper Volume 1600ml
Control Panel 7 "LCD Touch Screen
Options Dimple Plate/Timing Hopper/Printer/Rotary Top Cone
Driving System Step Motor
Power Requirements 220V / 1000W / 50/60HZ / 10A
Packing Dimension(mm) 1620(L)x1100(W)x1100(H)
Gross WGT 420KG


Z-shape material elevator



Model Z-180
Convey speed 3750mm/min
Power 750W
Convey Measure 4T/H(Rice)
Overall size 3000(L)×650(W)×3750(H)mm


Platform for scale(weigher)



Model PL-1A Platform
Maximum Loading Weight 2T-3T
Equipment Size 2000mm*2000mm*2000mm
Net Weight 350kg


Finish product conveyor



Model FC-1A
Convey speed 30M/min
Belt Food grade polypropylene(PP)
Voltage Single-phase AC220V,50HZ
Power 40W
Packing size 1600mm(L)*520mm(W)*1000mm(H)



Suitable for many kinds of measuring equipments, and package different kinds of products; such as puffy food, shrimp roll, peanut, popcorn, cornmeal, seed and sugar etc. which shape is roll, slice and granule.


SUS304 Weigher Packing Machine For Snacks Frozen Food 1SUS304 Weigher Packing Machine For Snacks Frozen Food 2

SUS304 Weigher Packing Machine For Snacks Frozen Food 3
