32 Head Nuts Mixing Combination Weigher Stainless Steel 304 CE Approved

32 Head Nuts Mixing Combination Weigher Stainless Steel 304 CE Approved

Nuts Mixing Combination Weigher

32 Head Combination Weigher

Stainless Steel 304 Granules Multihead Weigher

Place of Origin:

Guangdong Zhongshan China

Brand Name:

TOUPACK

Certification:

CE, IP65

Model Number:

TY-A-M32-1; TY-A-P32-1

Contact Us
Request A Quote
Product Details
Material::
Stainless Steel 304 32 Heads Mixing Multihead
Hopper Volume::
0.8L/0.5L/1.0L 32 Heads Mixing Multihead
Max. Speed::
120 WPM
Accuracy::
0.1g
HMI::
7'' / 10'' Color Touch Screen
Control System::
MCU / PLC 32 Heads Mixing Multihead
Power Supply:
AC220V ±10% 50HZ/60HZ, 2KW
After Warranty Service:
Video Technical Support, Online Support
Type:
Nuts Mixing Multihead
Number Of Heads:
Nuts Mixing Multihead
Surface:
Dimple Plate / Plain Plate
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
wooden case
Delivery Time
10-25 working days
Payment Terms
T/T, L/C
Supply Ability
100set per month
Product Description
32 Head Nuts Mixing Combination Weigher Stainless Steel 304 CE Approved
Product Specifications
Attribute Value
Material Stainless Steel 304
Hopper Volume 0.8L/0.5L/1.0L
Max. Speed 120 WPM
Accuracy 0.1g
HMI 7'' / 10'' color touch screen
Control System MCU / PLC
Power Supply AC220V ±10% 50HZ/60HZ, 2KW
Type Nuts Mixing Multihead
Surface Dimple plate / plain plate
Product Description

32 Head Nuts Mixing Combination Weigher for 4 to 8 products mixing, CE approved

Applications

Suitable for quantitative weighing of sticky materials including gum drops, spun sugar, meatballs, vegetables, screws, and similar products.

The bucket door opening and closing speed can be precisely adjusted to prevent crushing and blocking, tailored to material characteristics.

Key Features
  • Supports 2 in 1, 3 in 1, and 4 in 1 product mixing configurations
  • Higher accuracy with more hopper combinations
  • Automatic weight compensation for mixed products
  • High precision tailored load cells
  • Intelligent alarm diagnosis system
  • High speed staggered dump function
  • Modular design with CAN bus technology for efficiency and stability
  • Modbus industrial communication protocol
Technical Specifications
  • Upper storage funnel divided into 2-5 different areas
  • Independent main vibrator controls product thickness
  • Integrated machine frame and cabinet for stability and accuracy
  • Uniform design standards and mold processing for better spare parts interchangeability
  • Stable actuator design reduces mechanical vibration and improves load cell accuracy
Detailed Specifications
Model TY-A-M32-1; TY-A-P32-1
Max. Weighing (one hopper) 5-200g
Accuracy ±0.5g
Min. Scale Interval 0.1g
Max. Speed 120 WPM
Hopper Volume 0.8L/0.5L
Packing Dimension 1,370(L)*1,060(W)*1,105(H)mm
Package Weight 240kg
Product Images

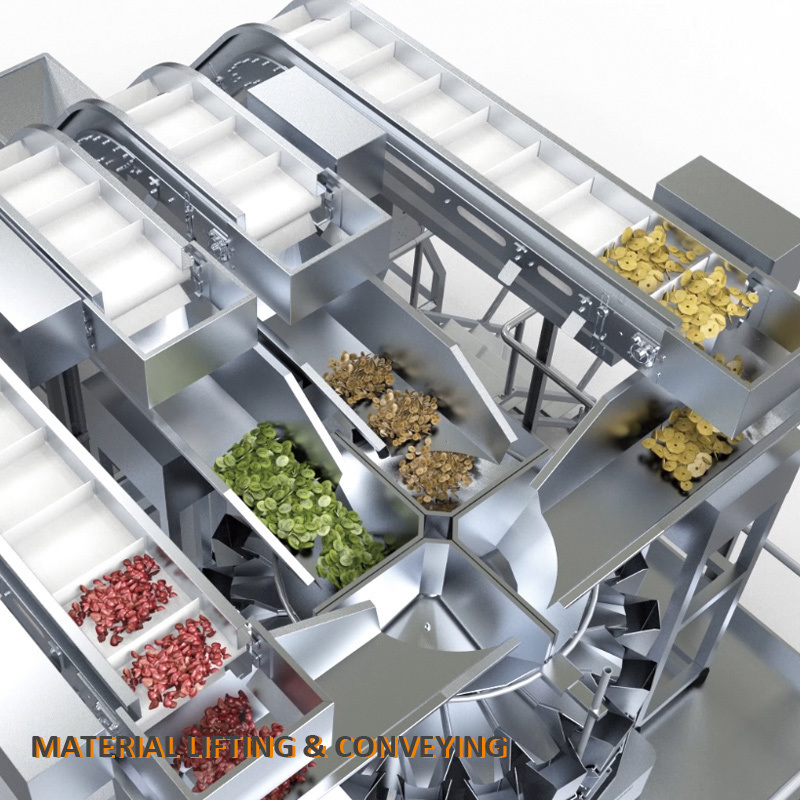

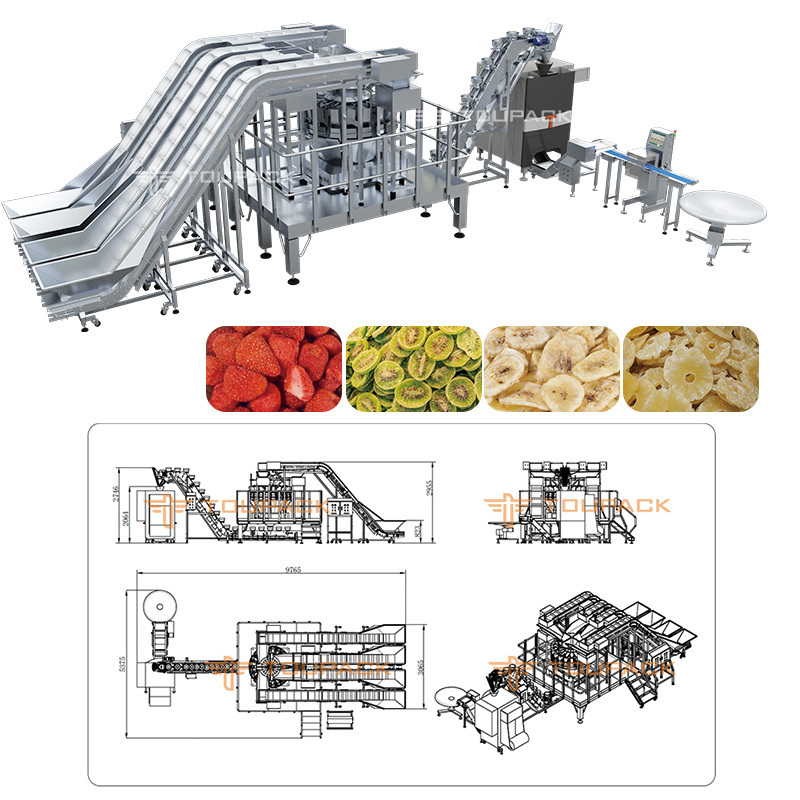

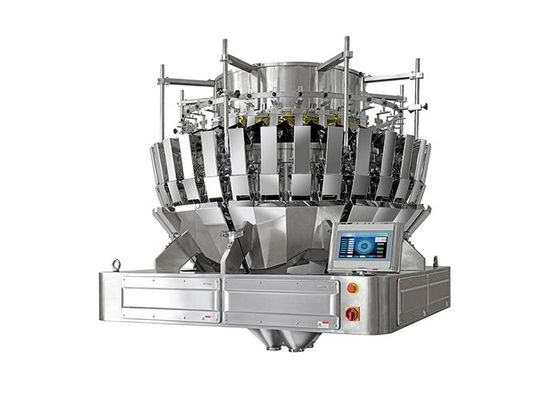

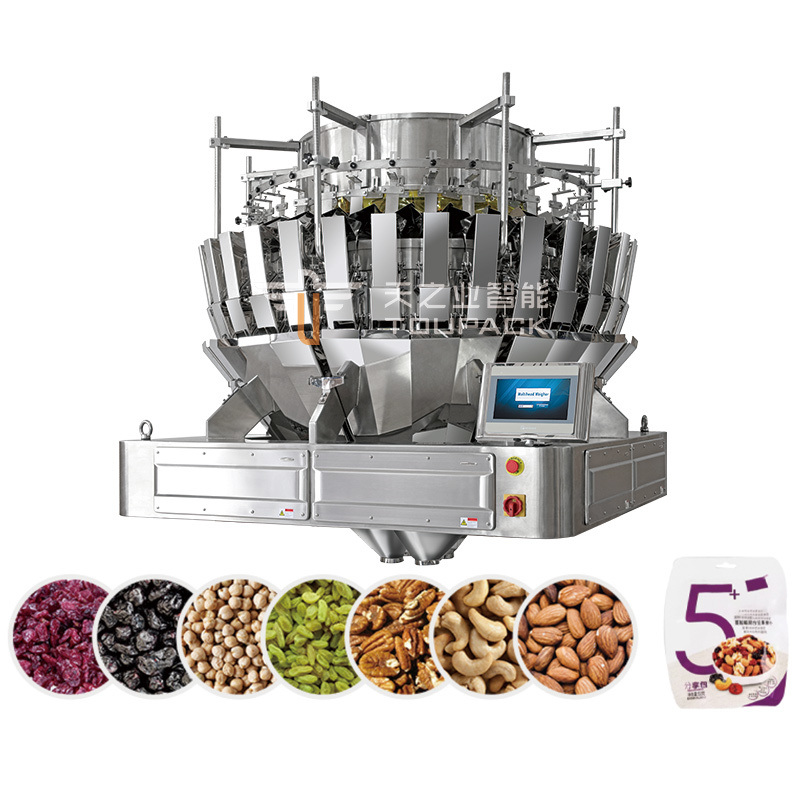

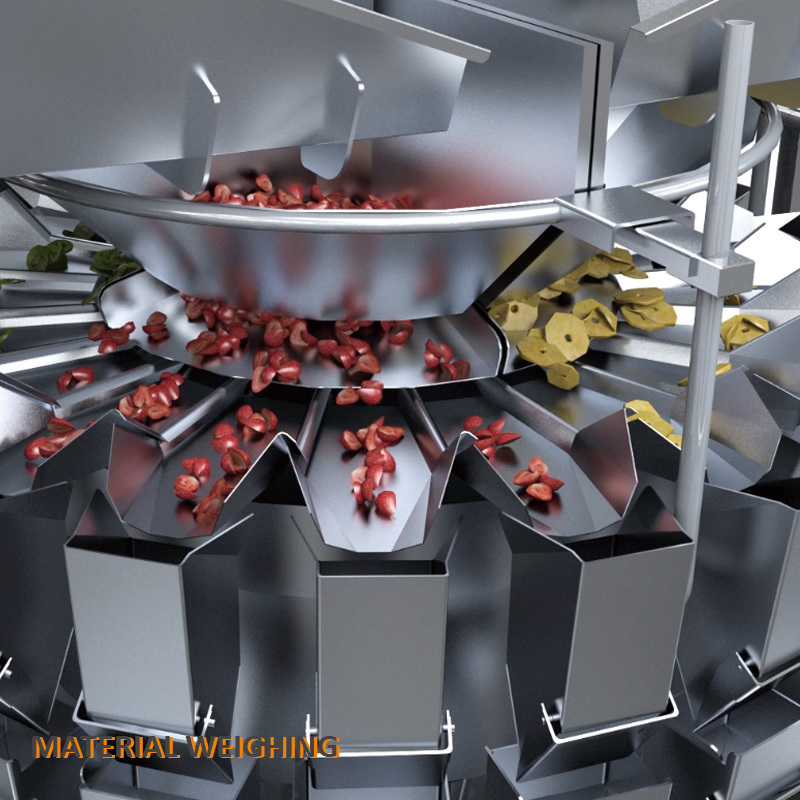

32 Head Nuts Mixing Combination Weigher Stainless Steel 304 CE Approved 0 32 Head Nuts Mixing Combination Weigher Stainless Steel 304 CE Approved 1 32 Head Nuts Mixing Combination Weigher Stainless Steel 304 CE Approved 2 32 Head Nuts Mixing Combination Weigher Stainless Steel 304 CE Approved 3 32 Head Nuts Mixing Combination Weigher Stainless Steel 304 CE Approved 4 32 Head Nuts Mixing Combination Weigher Stainless Steel 304 CE Approved 5 32 Head Nuts Mixing Combination Weigher Stainless Steel 304 CE Approved 6
Why Choose Our Product
  • 12+ years of weighing and packing machine design & manufacturing experience
  • Trusted by customers in over 60 countries
  • Professional team with passion and diligence
  • Comprehensive stand service
After-Sale Services
  • Comprehensive manuals and videos for installation, adjustment, and maintenance
  • 24/7 telecom or online support for troubleshooting
  • Available engineers and technicians for international service
  • 1-year machine warranty
Frequently Asked Questions
Are you a manufacturer or a trading company?

We are manufacturers with a professional factory located in Guangdong, China.

Do you sell accessories for products?

Yes, we provide matching parts for all our testing equipment.

How is the product packed?

We use secure wooden cases for all shipments.

Do you accept custom logos and modifications?

We accept all types of customization and logo applications for our products.

What are your main products?

We specialize in multi-head weighers, conveyor machines, packing machines, metal detectors, check weighers, and related electronic products.

What is your after-sales policy?

Customer satisfaction is our priority. We offer technical support through our R&D team and provide a standard 12-month warranty for all products.
