MIni 17 Inch HMI Automated Food X Ray Inspection Systems 70m / Min High Speed

MIni 17 Inch HMI Automated Food X Ray Inspection Systems 70m / Min High Speed

Food X Ray Inspection Systems 17inch

70m/Min Food X Ray Inspection Systems

Automated X Ray Inspection Service

Place of Origin:

China Food X Ray Inspection Systems

Brand Name:

TOUPACK Food X Ray Inspection Systems

Certification:

CE

Model Number:

TTX-2417K100 Food X Ray Inspection Systems

Contact Us
Request A Quote
MIni 17 Inch HMI Automated Food X Ray Inspection Systems 70m / Min High Speed MIni 17 Inch HMI Automated Food X Ray Inspection Systems 70m / Min High Speed MIni 17 Inch HMI Automated Food X Ray Inspection Systems 70m / Min High Speed MIni 17 Inch HMI Automated Food X Ray Inspection Systems 70m / Min High Speed
Product Details
X-ray Light Source::
210W/100KV Food X-Ray Inspector
Detecting Width::
400mm Food X-Ray Inspector
Detecting Height::
170mm
Accuracy::
SUS Ball Φ0.3mm, SUS Wire Φ0.2*2mm
Transfer Speed::
10-70m/ Min
HMI::
17 Inch Colorful Touch Screen
Connectivity::
LAN Port, USB Port
X-ray Leakage::
1 Millisievert / Hour
System:
Windows 7 Food X-Ray Inspector
Power Supply:
AC220V±10% 50Hz(60Hz) 1.5kVA Max
Type:
Food X-Ray Inspection Systems
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
wooden case
Delivery Time
10-25 working days
Payment Terms
T/T, L/C
Supply Ability
30 sets per month
RELATED PRODUCTS
Good price 17 Inch Touch Screen 150W Food X Ray Inspection Systems online

17 Inch Touch Screen 150W Food X Ray Inspection Systems

Get Best Price
Good price SUS304 Food Conveyor Belt X Ray Scanner Machine online

SUS304 Food Conveyor Belt X Ray Scanner Machine

Get Best Price
Good price IP66 100KV Food X Ray Inspection Systems Automatic X Ray Detector online

IP66 100KV Food X Ray Inspection Systems Automatic X Ray Detector

Get Best Price
Good price MIni 17 Inch HMI Automated Food X Ray Inspection Systems 70m / Min High Speed online

MIni 17 Inch HMI Automated Food X Ray Inspection Systems 70m / Min High Speed

Get Best Price
Contact Us
Contact Now
Product Description
Mini 17 Inch HMI Automated Food X-Ray Inspection Systems 70m/Min High Speed
Product Specifications
X-ray Light Source: 210W/100KV Food X-Ray Inspector
Detecting Width: 400mm Food X-Ray Inspector
Detecting Height: 170mm
Accuracy: SUS ball Φ0.3mm, SUS wire Φ0.2*2mm
Transfer speed: 10-70m/min
HMI: 17 inch colorful touch screen
Connectivity: LAN Port, USB Port
X-ray Leakage: 1 millisievert/hour
System: Windows 7 Food X-Ray Inspector
Power supply: AC220V±10% 50Hz(60Hz) 1.5kVA Max
Type: Food X-Ray Inspection Systems
High Speed Mini 17 Inch HMI Automated Food X-Ray Inspector

This advanced X-ray inspection system is designed for detecting metallic and non-metallic materials and defects in food, chemical, and pharmaceutical industries, including glass, ceramics, stones, bones, hard rubber, and plastic.

Key Features
  • Up to 8 grades of image processing for optimal product adaptability and stability
  • Capable of shielding edge, desiccant, canned food, and aluminum clamp for ham sausage
  • X-ray leakage meets US FDA and European CE standards
  • Includes air conditioning and IP66 protection
  • Easy to dismantle and clean
  • Optional rejection system available
Premium Components
  • Frequency converter: Danfoss (Denmark)
  • X-ray collector: Detection Technology (DT) (Finland)
  • Industrial air conditioning: Pfannenberg (Germany)
  • X-ray source: VJ GROUP (USA)
  • PLC: MITSUBISHI (Japan)
  • Limit switch: OMRON (Japan)
Model Specifications
Model TTX-2417K100 TTX-4017K100 TTX-5026K100 TTX-6035K100
X-ray Light Source 150W/100KV 210W/100KV 350W/100KV
Detecting Width 240mm 400mm 500mm 600mm
Detecting Height 170mm 170mm 260mm 350mm
Product Images

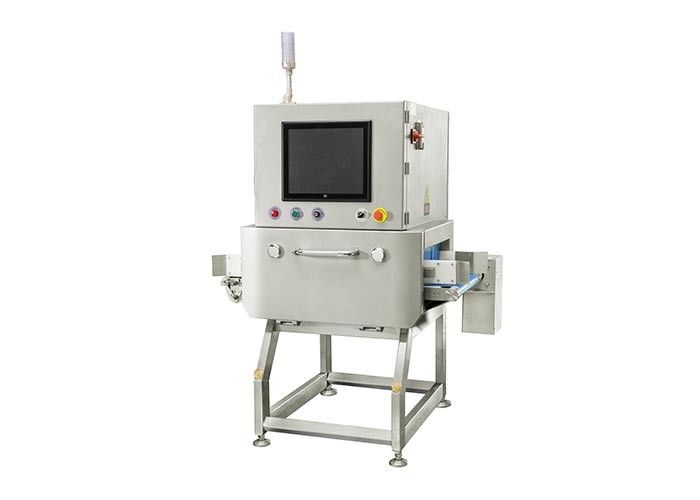

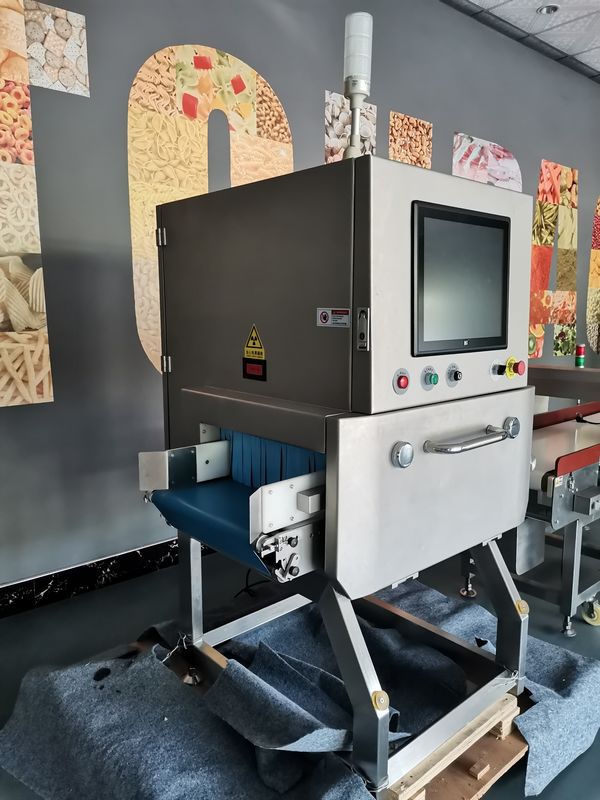

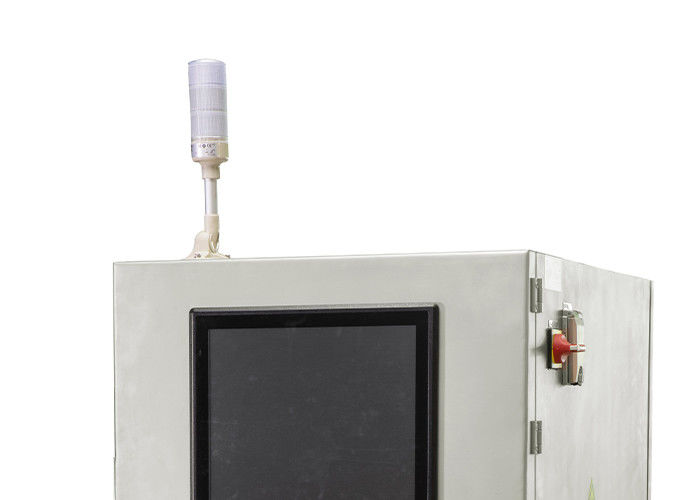

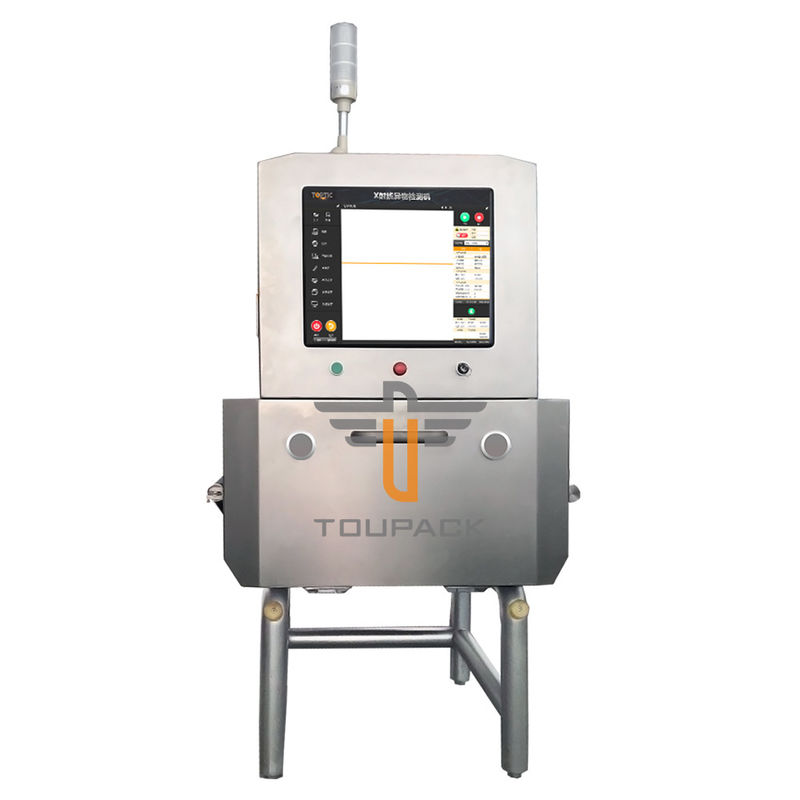

MIni 17 Inch HMI Automated Food X Ray Inspection Systems 70m / Min High Speed 0 MIni 17 Inch HMI Automated Food X Ray Inspection Systems 70m / Min High Speed 1 MIni 17 Inch HMI Automated Food X Ray Inspection Systems 70m / Min High Speed 2 MIni 17 Inch HMI Automated Food X Ray Inspection Systems 70m / Min High Speed 3 MIni 17 Inch HMI Automated Food X Ray Inspection Systems 70m / Min High Speed 4 MIni 17 Inch HMI Automated Food X Ray Inspection Systems 70m / Min High Speed 5
Company Information
MIni 17 Inch HMI Automated Food X Ray Inspection Systems 70m / Min High Speed 6 MIni 17 Inch HMI Automated Food X Ray Inspection Systems 70m / Min High Speed 7 MIni 17 Inch HMI Automated Food X Ray Inspection Systems 70m / Min High Speed 8

Why Choose Us:

  • Over 12 years of weighing and packing machine design & manufacturing experience
  • Trusted by customers in over 60 countries
  • Professional team with passion and diligence
  • Comprehensive stand service
After-Sale Services
  • Comprehensive manuals and videos for machine installation, adjustment, and maintenance
  • 24/7 telecom or online support for troubleshooting
  • Available engineers & technicians for international service
  • 1-year machine warranty included
Frequently Asked Questions
Q1: Are you a manufacturer or a trading company?

A: We are manufacturer, we have professional factory in Guangdong China

Q2. Do you sell the accessories for products?

A: Yes. We have matching parts for our testing equipment.

Q3. How about the packing for product?

A: We use secure wooden cases for safe transportation.

Q4. Do you accept customer Logo and customized?

A: We accept various customizations and logos for all our products.

Q5. What's your main product?

A: We specialize in multi-head weighers, conveyor machines, packing machines, metal detectors, check weighers, and related electronic products.

Q6. How about your after-sales policy?

A: Customer First. We offer technical support through our R&D team with a standard 12-month warranty on all products.
