Product Details:
|
| Packing Speed:: | 10-50 Bpm Vertical Form Fill Seal Packaging Machine | Bag Size:: | 20-400(L)*100-300(W)mm |
|---|---|---|---|
| Bag Type:: | Pillow Bag, Gusset Bag, Hole Punching Bag, Vacuum Bag | Film Width:: | 140-620mm Vertical Form Fill Seal Packaging Machine |
| Film Thickness:: | 0.04-0.09mm | Pulling Belt Type:: | Synchronous Servo Motor Belt Film Pulling |
| High Light: | Granule Vertical Form Fill Machine,10bpm Vertical Form Fill Seal Machine,Pillow Bag Form Fill Sealing Machine |
||

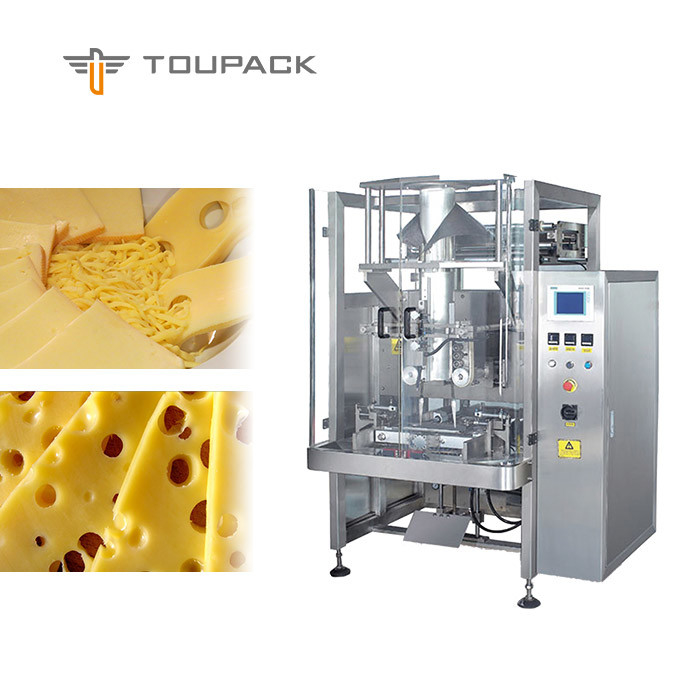

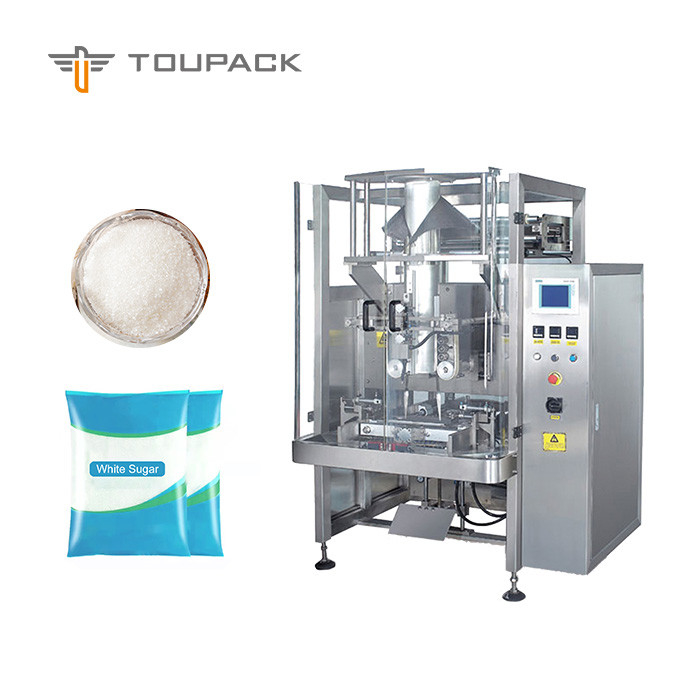

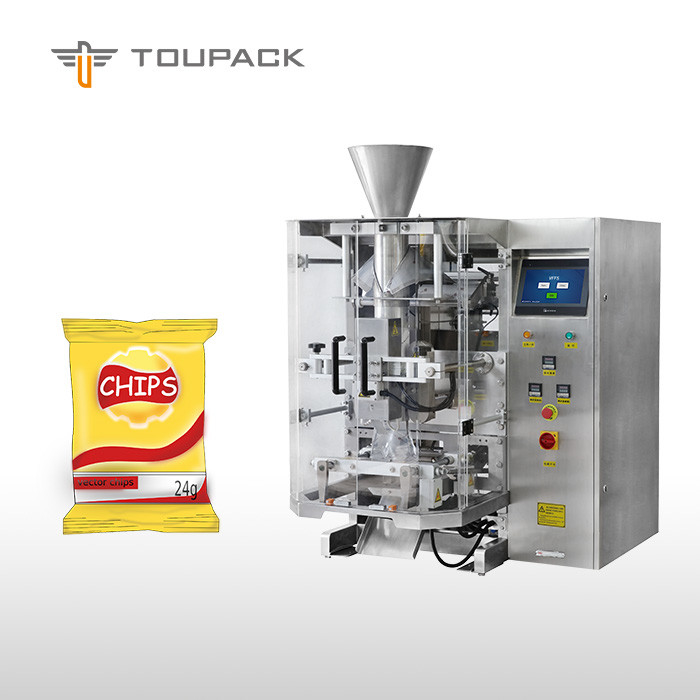

High speed, accuracy, stable operation 10bpm Granule Vertical Form Fill Seal Packaging Machine 620 mode Vertical Granule Packing Machine
620 mode Vertical Granule Packing Machine Main Function & Features:
1, Continuous weighing packaging design improves the weighing and packing speed.
2, Small target weighing selection of the best combination, a combination of high precision and high speed.
3, Greatly reduces the mechanical height and saves the space occupied by the equipment.
4, Servo motor transport membrane control, accurate positioning; automatic electric eye tracking.
What can we pack?
High speed, accuracy, stable operation Standard Features:
1. The machine can automatically complete the products conveying, measuring, feeding, filling and bag forming, date code printing, bag sealing, and cutting.
2. Servo-motor drove, twin belt film pulling system.
3. High sensitive fiber optic photo sensor can automatically trace color marks accurately.
4. PLC control system combined with a touch screen, can easily set and change the packing parameters. Daily production output and self-diagnostic machine error can be viewed directly from the screen.
5. PID temperature controller monitors heat sealing temperature within +I- 1º C.
6. Selected electrical and pneumatic components from reliable international manufacturers.
7. With CE Certificate comply with CE standard
10bpm Granule Vertical Form Fill Seal Packaging Machine 620 Optional Parts:
1. Date code printer
2. Gusset pouch forming device
3. Hole puncher
10bpm Granule Vertical Form Fill Seal Packaging Machine 620 Optional Measuring Filler:
1) Volumetric cup Filler for Granule(sugar, salt, coffee, sesame, condiment, etc. )
2) Electrical Weigher for Granule (pet food, candy, chocolate, biscuit, preserved fruit, melon seeds, chips, peanut, etc. )
2) Auger Screw filler for powder (Coffee powder, milk powder, sugar powder, solid beverage, spice, etc. )
3) Rotary Gear Pump for Liquid and paste (sauce, ketchup, mustard, mayonnaise, etc. )
4) Piston Pump for Liquid (water, juice, cream, shampoo, conditioner, ketchup, etc. )
10bpm Granule Vertical Form Fill Seal Packaging Machine 620 Specifications:
| Model | 520 VFFS | 620 VFFS | 720 VFFS |
| Packing Speed | 10-60 bpm | 10-50 bpm | 10-50 bpm |
| Bag Size | 50-350(L)*50-250(W)mm | 20-400(L)*100-300(W)mm | 20-450(L)*140-350(W)mm |
| Bag Type | pillow bag, gusset bag, hole punching bag | pillow bag, gusset bag, hole punching bag | pillow bag, gusset bag, hole punching bag |
| Film Width | 120-520mm | 620mm | 720mm |
| Film Thickness | 0.04-0.09mm | 0.04-0.09mm | 0.06-0.12mm |
| Film Material | BOPP/CPP,BOPP/VMCPP,BOPP/PE,PET/VMPET/PE,PET/PE | ||
| Pulling Belt Type | synchronous belt film pulling | synchronous servo motor belt film pulling | synchronous servo motor belt film pulling |
| Air Consumption | 0.8Mps 0.4m3/min | 0.8Mps 0.6m3/min | 200L/min 0.7×105Pa |
| Power Supply | single phase 220V 50HZ/60HZ, 3.4KW / 4.2KW | single phase 220V 50HZ/60HZ, 4.0KW | single phase 220V 50/60HZ, 4.5KW |
| Machine Dimension | 1,560(L)*1,160(W)*1,530(H)mm | 1,250(L)*1,600(W)*1,700(H)mm | 1,360(L)*1,630(W)*1,900(H)mm |
| Machine Weight | 480kg | 800kg | 900kg |
