Place of Origin:
Guangdong Zhongshan China
Brand Name:
TOUPACK
Certification:
CE
Model Number:
TY-1A-YZ-M1008-101

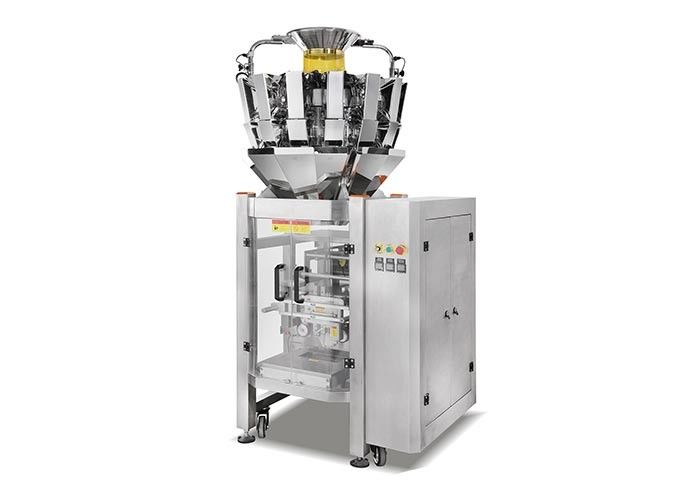

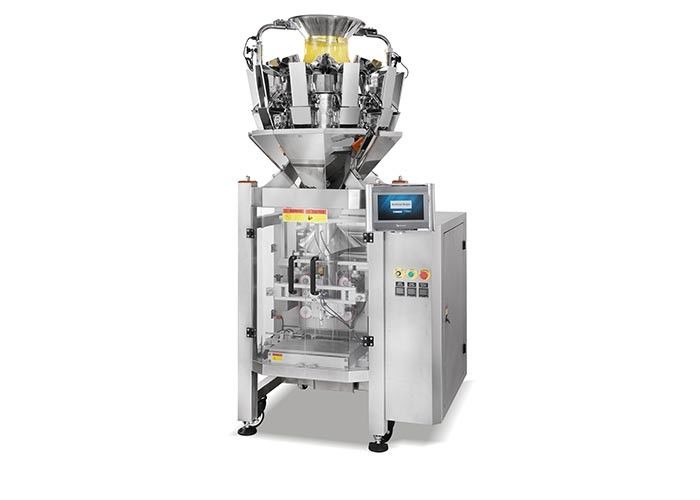

10/14 Head 0.8L 1.6L All In One Packing Machine Weigh From Fill Seal
Application & Features:
1. Compact and space saving design, suitable for limited workshop height within 3,000mm.
2. Cost saving
3. Golden ratio design to make the machine more steady and accurate.
4. Integrated weighing and packaging system, controlled by one HMI for easy operation.
5. Widely used on various kinds of products and customized solution per customer’s request.
Main Configuration:
1. Body frame: SUS304
2. Max film width: 420mm.
3. Max speed: 100 bpm (empty bags).
4. Packaging material: standard heat sealable composite film.
5. Main electrical configuration of packaging machine:
-- MITSUBISHI PLC
-- 2 sets of Panasonic servo system
-- AIRTAC pneumatic parts
-- Banner photoelectric sensor
-- Pneumatic hot stamp printer (NANYUN)
6. One set of former free of charge (film width: 420mm, double clip seal)
7. 10” touch screen
Specifications:
| Model |
TY-1A-YZ-M1008-101 TY-1A-YZ-M1016-101 |
TY-1A-YZ-M1408-101 TY-1A-YZ-M1416-101 |
| Max. Weighing (one hopper) | 300g | 300g |
| Weighing Accuracy | x (0.5) | x (0.5) |
| Min. Scale Interval | 0.1g | 0.1g |
| Hopper Q’ty | 10 | 14 |
| Hopper Volume | 0.8L / 1.6L | 0.8L / 1.6L |
| Max. Weighing Speed | 60 bpm | 80 bpm |
| Max. Film Width | 420mm | 420mm |
| Packaging Material | standard heat sealable composite film | standard heat sealable composite film |
| Packing Speed | 80 bpm (empty bags) | 100 bpm (empty bags) |
| Power Supply | AC220V ±10% 50HZ/60HZ, 2.5KW | AC220V ±10% 50HZ/60HZ, 3KW |
| Machine Dimension |
1,457(L)*1,080(W)*2,313(H)mm (0.8L) 1,700(L)*1,211(W)*2,415(H)mm (1.6L) |
1457(L)×1080(W)×2,391(H)mm (0.8L) 1,700(L)*1,211(W)*2,515(H)mm (1.6L) |
| Packing Dimension |
1,700(L)*1,335(W)*2,300(H)mm (0.8L) 1,750(L)*1,330(W)*2,440(H)mm (1.6L) |
1700(L)*1335(W)*2400(H)mm(0.8L) 1,750(L)*1,330(W)*2,540(H)mm (1.6L) |
| Machine Weight | 635kg (0.8L); 685kg (1.6L) | 655kg (0.8L); 735kg (1.6L) |
| Packing Weight | 755kg (0.8L); 805kg (1.6L) | 805kg (0.8L); 855kg (1.6L) |
>>Why choose us:
ㆍOver 12 years weighing and packing machine design & manufacturing experience
ㆍOver 60 countries customers choices
ㆍProfessional team with passion and diligence
ㆍAll-in-one stand service
After-sale services:
1. Manual / Videos of machine installation, adjusting, maintenance are available for you.
2. If any problems happened, telecom or online face to face communication available 24 hours.
3. Engineers & technician Engineer available to serve machines for your countries.
4. The machine will have 1 year warranty of machine.
FAQ:
Q1: Are you a manufacturer or a trading company?
A: We are manufacturer, we have professional factory in Guangdong China
Q2. Do you sell the accessories for products?
A: Yes. We have Match the parts for our testing equipment.
Q3. How about the packing for product? Is it easy damaged during transportation?
A: No. We takes of wooden case and it is very safe.
Q4. What's your main product?
A: We are professional in multi-head weigher, conveyor machine, packing machine, Metal detector, Check weigher and other related electronic products and machine
Q5. How about your after-sales policy?
A: Customer First. We have our own R&D team and we can offer tech-support. All of our products normal warranty is 12months.
Q6. Do you accept customer Logo and customized?
A: we accept kinds of customized and logo of all of our products for customers.
