Rotary Vacuum Bag Packaging Machine Automatic Premade Bag Doypack Food Packing

Rotary Vacuum Bag Packaging Machine Automatic Premade Bag Doypack Food Packing
Rotary Vacuum Bag Packaging Machine Automatic Premade Bag Doypack Food Packing Rotary Vacuum Bag Packaging Machine Automatic Premade Bag Doypack Food Packing Rotary Vacuum Bag Packaging Machine Automatic Premade Bag Doypack Food Packing

Large Image :  Rotary Vacuum Bag Packaging Machine Automatic Premade Bag Doypack Food Packing

Product Details:
Place of Origin: China
Brand Name: TOUPACK
Certification: CE,ISO9001
Model Number: TY-8S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 15 works day
Payment Terms: L/C, T/T

Rotary Vacuum Bag Packaging Machine Automatic Premade Bag Doypack Food Packing

Description
Sealing Type: Hot Sealing Packaging Type: Stand-up Pouch, Bags, Film, Foil, Pouch, Case
Customized Support: OEM,ODM Parameter Adjustment: Auto Learning/Manual Setting
High Light:

Rotary Vacuum Bag Packaging Machine

,

Automatic Premade Vacuum Bag Packaging Machine

CE Certification Rotary(Vacuum)Bag Packaging Machine Automatic Premade Bag Doypack Food Packing

Rotary(Vacuum)Bag Packaging Machine TY-8S Application:



Its application range is extremely wide, can be used in paper plastic composite, plastic plastic composite, aluminum plastic composite, PE composite, etc., packaging material loss is low, the use of prefabricated packaging bag, packaging bag pattern is perfect, good sealing quality, so as to improve the product grade; Can also be used in one machine, only according to different materials supporting different measuring devices can realize the automatic packaging of particles, powder, block, liquid, soft cans, toys, hardware and other products.





Rotary(Vacuum)Bag Packaging Machine TY-8S Product Feature:





1. Replacing traditional manual packaging, the rotary bag packaging machine has achieved packaging automation, improved production efficiency and significantly reduced the product cost. The whole equipment is operated by one person only, greatly saving the labor cost.

2. Equipped with auto-monitoring device, the machine can check the air pressure, temperature controller breakdown, opening status of the pouches to determine if the machine is in normal condition. It can also control the code printer, filling and hot-sealing device to avoid wasting of bags and products.



Rotary Vacuum Bag Packaging Machine Automatic Premade Bag Doypack Food Packing 0



3. Fully-automated rotary vacuum poucher is able to meet a variety of packaging needs and cab be used with other equipment.

4. Fully-automated rotary vacuum poucher consists of two separate rotary parts (filling system and vacuum system) with filling system in intermittent operation and vacuum system in continuous operation.





Rotary Vacuum Bag Packaging Machine Automatic Premade Bag Doypack Food Packing 1







Rotary(Vacuum)Bag Packaging Machine TY-8S Specifications:



Model

TY-8S

Product Name Rotary(Vacuum)Bag Packaging Machine

Bag Size

150-380(L)*100-200(W)mm

Bag Type

flat bags, aluminum foil bags, composite flat bag

Packaging Speed

20-55 BPM

Powder Supply

3 phase 380V AC±10% 50Hz

Use Power

2.0kW/unit

Air Consumption

5-8kg f/cm³, Air consumption:0.4m³/min

Operating Noise

Within 80db (within 1m)

Bag Opening Method

Vacuum bag opening

Output Function

Chute conveying

Alarm State

1.No bag or material,refuse to seal

2.Equipment overload alarm

3.Low air pressure alarm

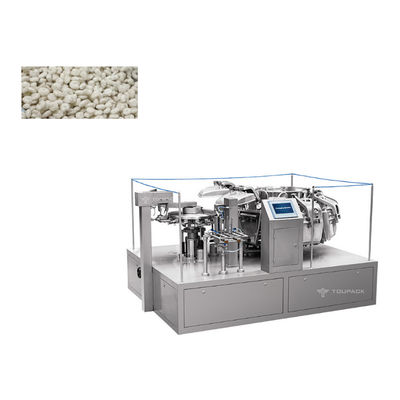

Rotary(Vacuum)Bag Packaging Machine Product Photo:



Rotary Vacuum Bag Packaging Machine Automatic Premade Bag Doypack Food Packing 2







Frozen Shrimp Weighing and Packaging System:



Integration system includes: inclined conveyor + shatter-proof multihead weigher + easy-to-clean high intensity stainless steel platform + rotary(Vacuum) bagging machine.



Equipped with anti-condensation devices on the multihead weigher, this system can be adapted to food-grade freezer plants.





Rotary Vacuum Bag Packaging Machine Automatic Premade Bag Doypack Food Packing 3





Solution:





According to your production line requirements, our experts will provide you with an integrated weighing and packaging solution to help you improve production efficiency.





Rotary Vacuum Bag Packaging Machine Automatic Premade Bag Doypack Food Packing 4



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as nameplate, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
-Wrap the protective
-Packen in wooden cases


Shipping:
- International express such as DHL / FEDEX / UPS / TNT, etc
- By sea



Standard export port:
Zhongshan Port
