Automatic Screw Feeder Combination Weigher Filling Sticky Food Meat Packing Machine
Three-Layer 8-Head High-Speed Weigher Application
Applicable for quantitative weighing of irregular and poorly fluid viscous materials such as capers,fresh meat,mustard,pickles,and small fish.
Three-Layer 8-Head High-Speed Weigher Specifications
|
Model |
TY-ZHZ083M10-01-12 |
TY-ZHZ083M13-01-12 |
|
Max. Weighing(one hopper) |
50-1000g |
50-1000g |
|
Accuracy |
x (0.5) |
x (0.5) |
|
Min.Scale Interval |
0.1g |
0.1g |
|
Max.Speed |
30 BPM |
30 BPM |
|
Hopper Volume |
1.0L |
1.3L |
|
Control System |
MCU |
MCU |
|
HMI |
7” / 10” color touch screen |
7” / 10” color touch screen |
Three-Layer 8-Head High-Speed Weigher Main Function & Features

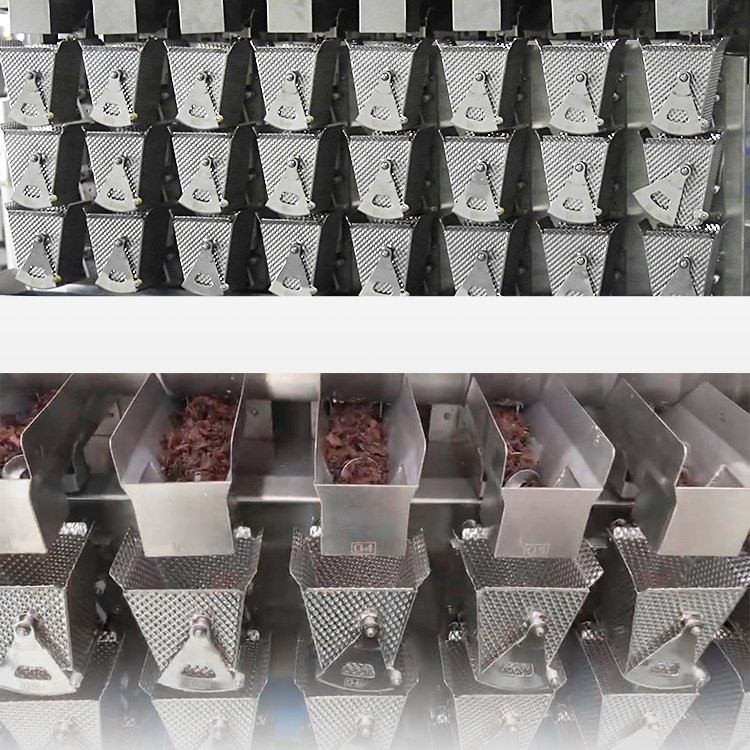

1. Tri-layer hopper design to effectively save production space.
2. “Scraping” mechanical design to effectively solve the problem of weighing sticky and oily products, like spicy small fish, spicy beef jerky and dried spicy beancurd, etc.

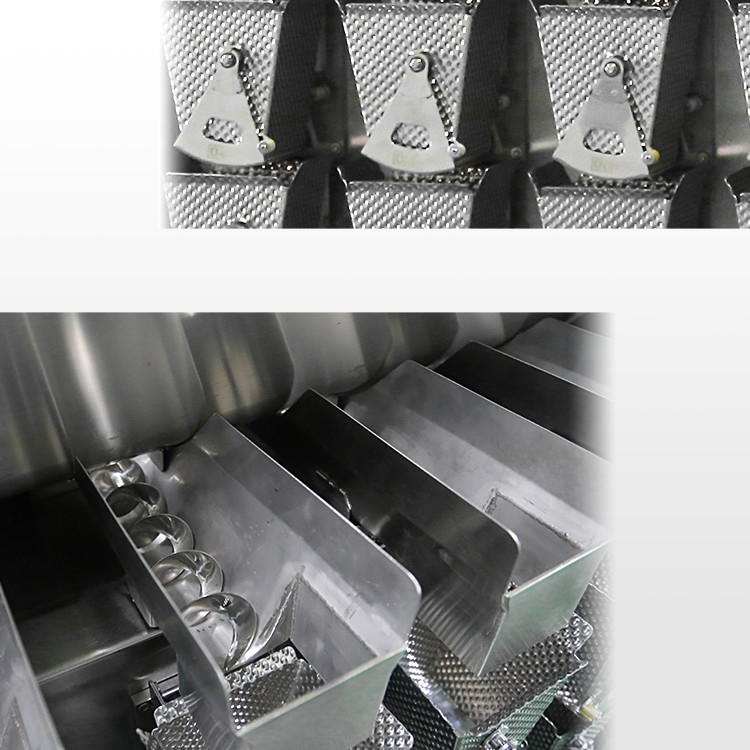

3. Screwing hopper doors to ensure product discharge without any blockage.
4. Screwing feeding system to ensure smooth discharge.
5. Product collection in final belt conveyor to bring faster and more effective conveying.
6. Both hoppers and feeding chutes are dismountable for easy cleaning and maintenance.
7. IP 65 dust and water proof design.
Solution:
According to your production line requirements, our experts will provide you with an integrated weighing and packaging solution to help you improve production efficiency.
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as nameplate, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
-Wrap the protective
-Packen in wooden cases
Shipping:
- International express such as DHL / FEDEX / UPS / TNT, etc
- By sea
Standard export port:
Zhongshan Port
