Product Details:
|
| Packing Material: | OPP/CPP, OPP/CE,PET/PE Etc. | Type Of Sealing: | Pillow Bag Or Gusset Bag Or Quad Side Seal |
|---|---|---|---|
| Packaging Type: | Bags, Film, Foil, Pouch | Key Selling Points: | High-accuracy |
| Production Capacity: | 20bag/min, 25bag/min, 15bag/min, 50bag/min | Automatic Grade: | Automatic |
| High Light: | 250g Food Filling Packing Machine,Cocoa Powder Food Filling Packing Machine,Automatic 10g Seasoning Packing Machine |
||

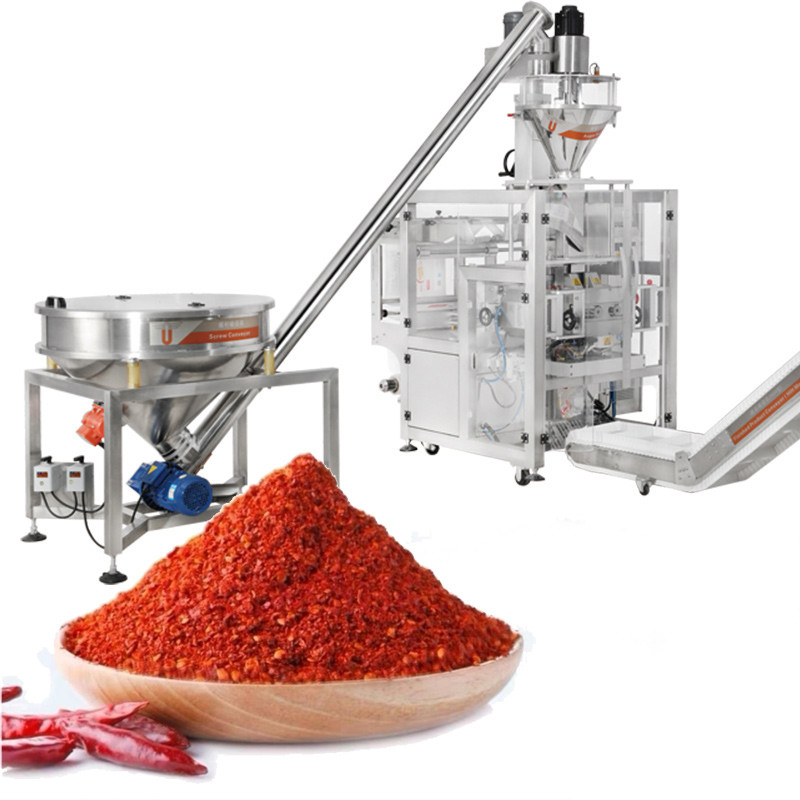

Automatic 10g 100g 250g Food Filling Packing Machine Milk Corn Flour Chili Cocoa Powder Seasoning Packing Machine
The system is applicable for quantitative weighing and packaging of flour, powdered milk, feed stuff, rice flour,cocoa powder, solid beverage, granulated sugar, MSG, veterinary drugs, glucose, solid medicine, powdered additives, toner powder, talcum powder, pesticides, dyes, flavors, fragrance, etc.
SCREW CONVEYOR TECHNICAL PARAMETERS
|
Body Material |
SUS304 |
|
Conveying Type |
Screw blade |
|
Power Supply |
Single / 3 phase 220V/380V 50HZ/60HZ |
|
Power Consumption |
0.61KW / 0.81KW / 1.56KW / 2.26KW / 3.06KW / 4.06KW |
|
Silo Volume |
100L / 200L |
|
Conveying Speed |
2m³/h, 3m³/h, 5m³/h, 7m³/h, 8m³/h, 12m³/h |
|
Conveying Angle |
Standard: 45° or per requirement (from 30°~60°) |
|
Conveyor Pipe Diameter(mm) |
Φ102, Φ114, Φ141, Φ159, Φ168, Φ219 |
|
Conveying Height(mm) |
Standard: 1,850mm or per requirement (from 1,000 to 5,000mm) |
|
Machine Dimension(mm) |
Custom-made per requirement |
SCREW CONVEYOR MAIN FUNCTION & FEATURES

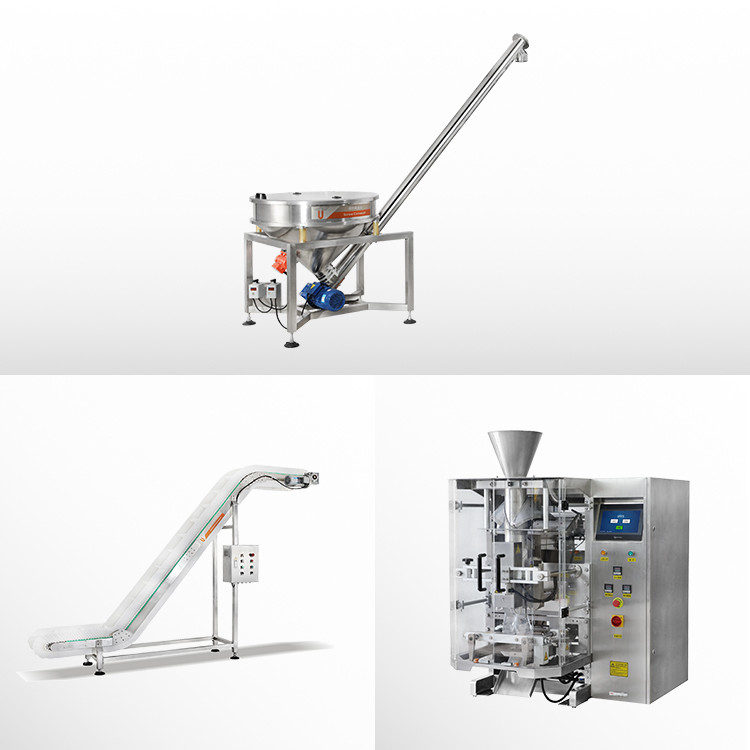

1. The whole system consists of fully-automatic VFFS, screw conveyor and Auger filter. Filling is by servomotor to drive screw. It is with the advantage of accurate positioning, high precision, fast speed, large torque, adjustable RPM, good stability, etc.
2. Exquisite design of appearance, sealing, film conveying, electrical collocation, etc.
3. Automatic Checking Function: If the bag is not open or not open completely, machine will not feed or conduct heat sealing, saving production cost.
4. Exquisite workmanship of screw, accurate measurement, easy cleaning of storage silo, stable operation and low failure rate. Advanced international technological level.
