Product Details:
|
After-sales Service Provided: | Online Support | Type: | Easy Operation |
---|---|---|---|
Material: | Stainless Steel 304 | Certification: | CE;ISO9001 |
High Light: | Stainless Steel 304 Size Sorting Machine,Mango Fruit Grading Size Sorting Machine |

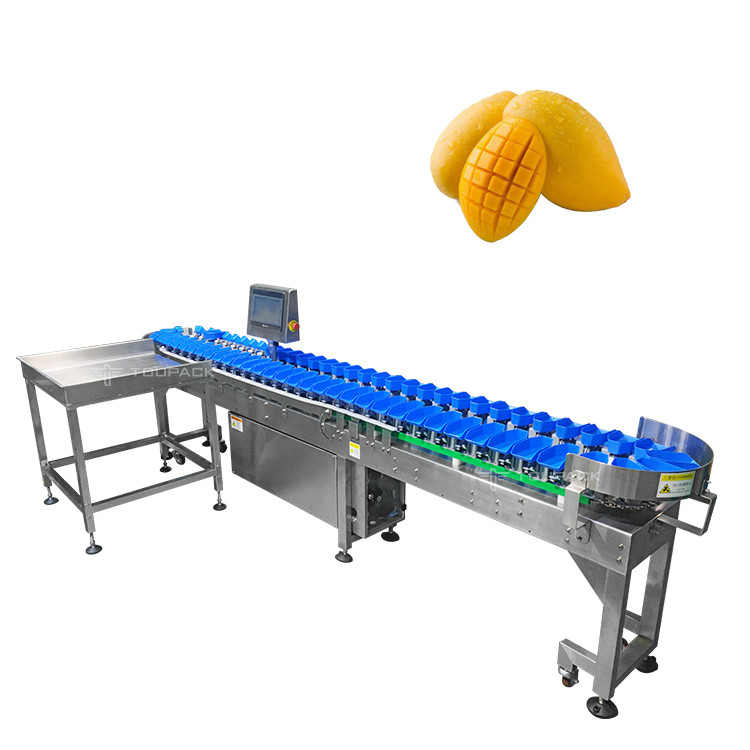

Automatic Size Sorting Machine For Mango Fruit Grading Machine Vegetables Sorting Machine
Automatic Size Sorting Machine For Mango Application
Applicable for multi-weight sorting of poultry, marine as well as agricultural products,such as chicken legs / wings / meat, trepang, abalone, small fish, shrimp, Chinese medical herbs, fruits and many other products with the size within 12*18CM and the weight within 500g(1~14 grade sorting), regardless of their shape.
Automatic Size Sorting Machine For Mango Specifications
Model |
TY-JYH104P115-01-11 |
Max.Weighing |
500g |
Sorting Accuracy |
±0.3g |
Sorting Speed |
300 BPM |
HMI |
7” color touch screen |
Product Size |
≤1800mm(L)*120mm(W) |
Control System |
High-speed A/D controller |
Pre-set Prod,No. |
99 |
Power Supply |
AC220V±10% 50Hz/60Hz,0.6KW |
Machine Dimension |
3592mm(L)*1174mm(W)*1508mm(H) |
Reject Device |
Overturned device |
Working Condition |
Temperature: 0℃~40℃;Humidity:30%~95% |
Main Function & Festures
Versatility: Standard machine structure and HMI program design can accomplish weight sorting with wide range of products.
Easy to Switch:Able to store multi formula to switch to different product specifications.
Easy Panel Operation: 7" color touch screen with smartand humanized design.
Easy Maintenance:Conveying belts is removable for easy maintenance and cleaning.
Highly Efficient and Economic:Multi-sorting and automatic weight checking for labor cost saving and efficiency improving.
Augmentation:More equipment can be added to the machine at customer's demand.
Speed Adjusting:Frequency conversion control motor to adjust the speed as required.
