Product Details:
|
| After-sales Service Provided: | Online Support | Type: | Easy Operation |
|---|---|---|---|
| Material: | Stainless Steel 304 | Certification: | CE;ISO9001 |
| High Light: | Oyster Trepang Abalone Weighing Sorting Machine,12 Levels Seafood Weighing Sorting Machine,High Accurate Conveyor Belt Weight Sorting Machine |
||

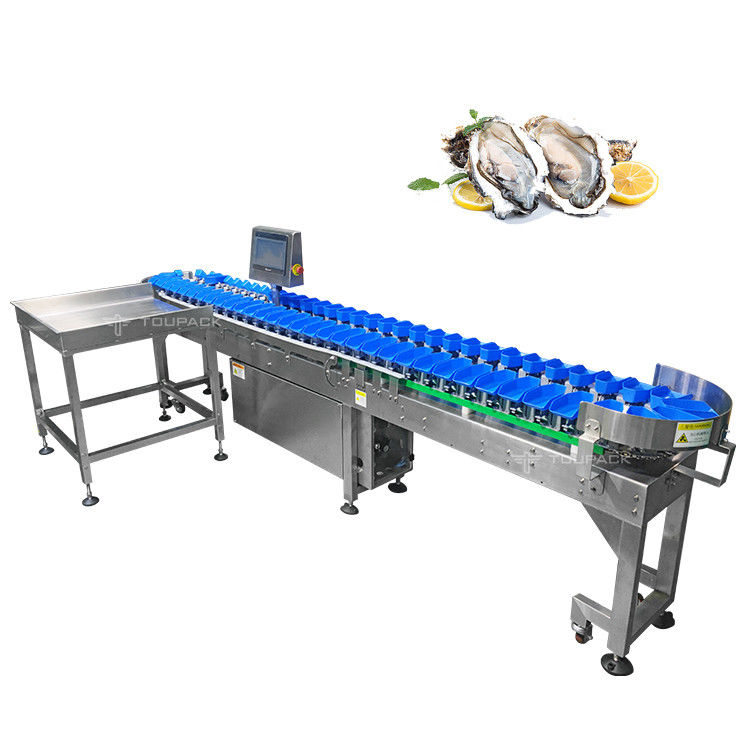

High Accurate And Smart Fresh Oyster Trepang Abalone Weighing Sorting Machine 1-12 Levels Seafood Grading Machine
Application
Applicable for multi-weight sorting of poultry, marine as well as agricultural products,such as chicken legs / wings / meat, trepang, abalone, small fish, shrimp, Chinese medical herbs, fruits and many other products with the size within 12*18CM and the weight within 500g(1~14 grade sorting), regardless of their shape.
Specifications
|
Model |
TY-JYH104P115-01-11 |
|
Max.Weighing |
500g |
|
Sorting Accuracy |
±0.3g |
|
Sorting Speed |
300 BPM |
|
HMI |
7” color touch screen |
|
Product Size |
≤1800mm(L)*120mm(W) |
|
Control System |
High-speed A/D controller |
|
Pre-set Prod,No. |
99 |
|
Power Supply |
AC220V±10% 50Hz/60Hz,0.6KW |
|
Machine Dimension |
3592mm(L)*1174mm(W)*1508mm(H) |
|
Reject Device |
Overturned device |
|
Working Condition |
Temperature: 0℃~40℃;Humidity:30%~95% |
Main Function & Festures
Reporting Function: Built-in report statistics to generate Excel format:able to automatically generate several kinds of live data reports to make statistics on single or total weight of the discharge hopper to control production status at all times. USB can store more than one year of data.
High Speed & Accuracy: Equipped with high accuracy digital load cell for quick and accurate weight sorting.
Customization: Sorting grade can be customized per customer's requirement.
Zero Tracking: Manual or automatic reset as well as dynamic zero tracking.
Interface Function: Reserved standard interface for easy data management. Connecting with PC or other smart communication tools.
Centralized Control: One PC/HMI can control multiple sortingn.
