Product Details:
|
| Usage: | Material Transimission | Feature: | Easy Cleanliness |
|---|---|---|---|
| Application: | Food | Certification: | CE |
| After Warranty Service: | Online Support | Online Support: | Vertical Bucket Elevator |
| Core Components: | Motor, Bearing, Vertical Conveyor | Structure: | Chain Conveyor |
| High Light: | Stainless Steel Z Type Bucket Elevator,Z Type Bucket Elevator Material Handling |
||

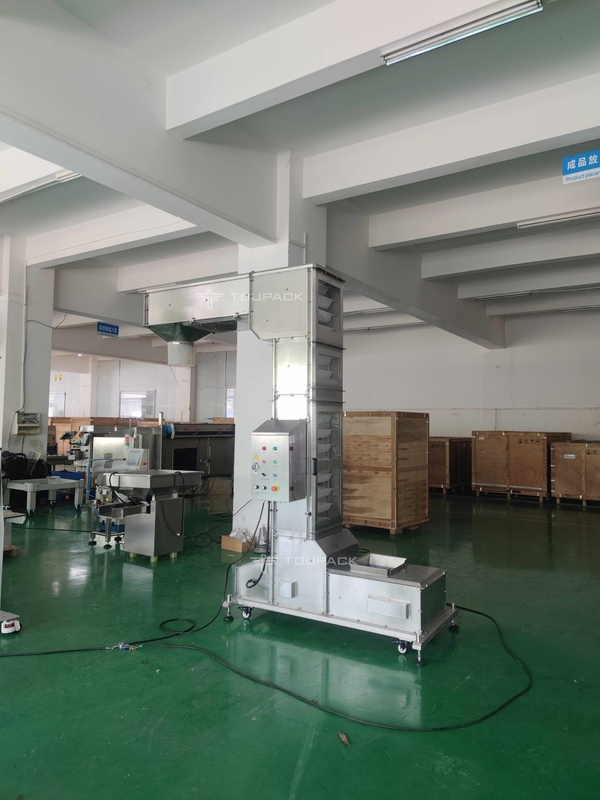

Chemical Bulk Powder Particle Material Handling Conveying Machine Stainless Steel Eversion Z Type Bucket Elevator
Z Type bucket elevator is the universally lifting conveying equipment. It is mainly made up of Movement part (bucket and traction belt or chain), Upper part with Transmission Drum, Down parts with Tension Drum, Middle Cabinet, Drive Device and so on.
Application
The equipment is widely used in where multi-point feeding and discharging is needed. Usually it works together with weighing & packaging machines and color selecting machines on automatic production line. It is mainly applicable products:puffed food, fodder ,candies , dried fruit , health food , grains , chemicals , hardware, etc.
Technical Parameters
|
Contents |
Specifications |
|
Body Material |
carbon steel / SUS304 |
|
Hopper Volume |
1.0L / 1.8L / 3.6L |
|
Hopper Surface |
dimple / plain |
|
Power Supply |
single / 3 phrase 220V/380V 50HZ/60HZ, 0.4KW/0.75KW/1.5KW/2.2KW |
|
Conveying Capacity |
2.5m³/h / 4m³/h / 8m³/h |
|
Machine Dimension(mm) |
per customer’s requirement |
|
Vibrating Feeder |
detached / independent vibrating feeder |
|
Feeder Volume |
70L / 100L / 150L / 200L |
|
Discharge Funnel |
single / double / multiple |
Feature
1.The elevator and electronic metering scale shall be used together,control circuit is used to control the position of the material,realizing automatic feeding and stopping function.
2.The elevator is made of stainless steel.
3.The bucket can use ABS or stainless steel materials.
4.The bucket elevators allow for controlled discharge at one or more locations and can easily interface with various types of feeding devices.
5.Electromagnetic vibration feeder feed material is possible.
6.Multiple discharges can be pneumatically controlled.
7.Vertical lifting can save floor space, and power loss is small, because the accumulation of material in the bucket, has been in a relatively static state during transport, it is not caused by transport damage.
8.Conveying height up to 10 meters.
9.According to the requirements of users (different materials, delivery capacity, delivery height) for the design and production.
Customization Solution:
According to your production line requirements, our experts will provide you with an integrated weighing and packaging solution to help you improve production efficiency.
