Auto Conveyor Belt Weight Sorting Machine Food Industrial Conveyor Machine

Auto Conveyor Belt Weight Sorting Machine Food Industrial Conveyor Machine

Auto Conveyor Belt Weight Sorting Machine

Industrial Conveyor Belt Weight Sorting Machine

Place of Origin:

China

Brand Name:

TOUPACK

Certification:

CE,ISO9001

Model Number:

TT-WGM-01

Contact Us
Request A Quote
Product Details
Discharging Method:
Swing Bar
Control Module:
High Speed A/D Sampling Module
Product Preset:
99
HMI:
10" Color Touch Screen
Machine Body Construction:
SUS304 Full Stainless Steel
Machine Size:
3080mm(L) X 898mm(W) X 1489mm(H)
Suitable Product Dimension:
≤300mm(L)*210mm(W)
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
Wooden case
Delivery Time
According to the actual situation
Payment Terms
L/C
Product Description

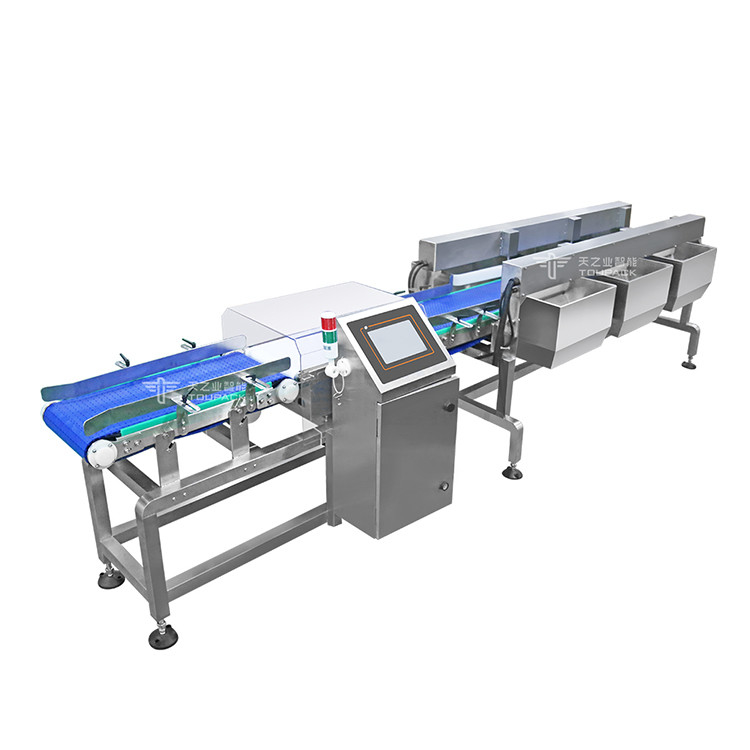

Auto Conveyor Belt Weight Sorting Machine

Industrial-grade food conveyor machine with precision weighing and sorting capabilities for seafood, poultry, and aquatic products.

Key Specifications
Attribute Value
Discharging method Swing bar
Control Module High Speed A/D Sampling Module
Product Preset 99
HMI 10" color touch screen
Machine Body Construction SUS304 Full Stainless Steel
Machine size 3080mm(L) × 898mm(W) × 1489mm(H)
Suitable Product Dimension ≤300mm(L)*210mm(W)
Auto Conveyor Belt Weight Sorting Machine Food Industrial Conveyor Machine 0
Applications

This automatic multi-level weight sorting machine is specifically designed for inspecting and sorting:

  • Crabs and seafood
  • Chicken legs and poultry products
  • Fish and shrimp
  • Other aquatic products

The system automatically rejects products that exceed or fall below weight specifications while sending qualified products to the next processing stage.

Auto Conveyor Belt Weight Sorting Machine Food Industrial Conveyor Machine 1
Technical Parameters
Model TT-WGM-01
Power Supply AC110/220V±10% 50HZ(60HZ)
Rated Power 1KW
Checking Range 10~1,000g
Accuracy ±0.3g
Weight grades 8 grades
Belt width 220mm
Minimum Scale 0.1g
Sorting speed 160bags/min
Waterproof IP65
System Advantages
  • Centralized control: Single PC/HMI can manage multiple sorting machines simultaneously
  • Advanced reporting: Built-in statistics generate Excel reports with live data monitoring of production status based on individual or total weight measurements
  • USB data storage: Capacity for more than one year of operational data
  • Precision performance: High-accuracy digital load cells enable rapid, precise weight sorting
  • Customizable sorting: Adjustable weight grades to meet specific customer requirements
  • Zero tracking: Manual/automatic reset with dynamic zero tracking capability
  • Integration ready: Standard interfaces for seamless connection to PCs and smart communication tools
Auto Conveyor Belt Weight Sorting Machine Food Industrial Conveyor Machine 2 Auto Conveyor Belt Weight Sorting Machine Food Industrial Conveyor Machine 3 Auto Conveyor Belt Weight Sorting Machine Food Industrial Conveyor Machine 4
