Place of Origin:
China
Brand Name:
TOUPACK
Certification:
CE,ISO9001
Model Number:
TY-ZHY142M(P)16-01-11
Fully Automatic Shelled Pumpkin Seed Weighing Packing Machine Plastic Bag Machine With 14 Head Weigher
It is widely used in the weighing of granular,block and sheet materials such as food,medicine,hardware,chemicals,plastics,ect.
It is applicable for weighing of all types of small-sized / dosed, granular products, such as Chinese herbal medicine pieces,pistachios,candy,coffee beans,chocolate beans,etc.
Product Description
Model |
TY-ZHY142M(P)16-01-11 |
Max. Weighing (one hopper) |
10-1500g |
Accuracy |
x (0.5) |
Max. Scale Interval |
0.1g |
Max. Speed |
110 BPM |
Hopper Volume |
1.6L |
Control System |
MCU / PLC |
HMI |
7’’ / 10’’ color touch screen |
Power Supply |
220V 1.5KW 50/60Hz |
Packing Dimension |
1140mm(L)*1100mm(W)*1857mm(H) |
System Integration

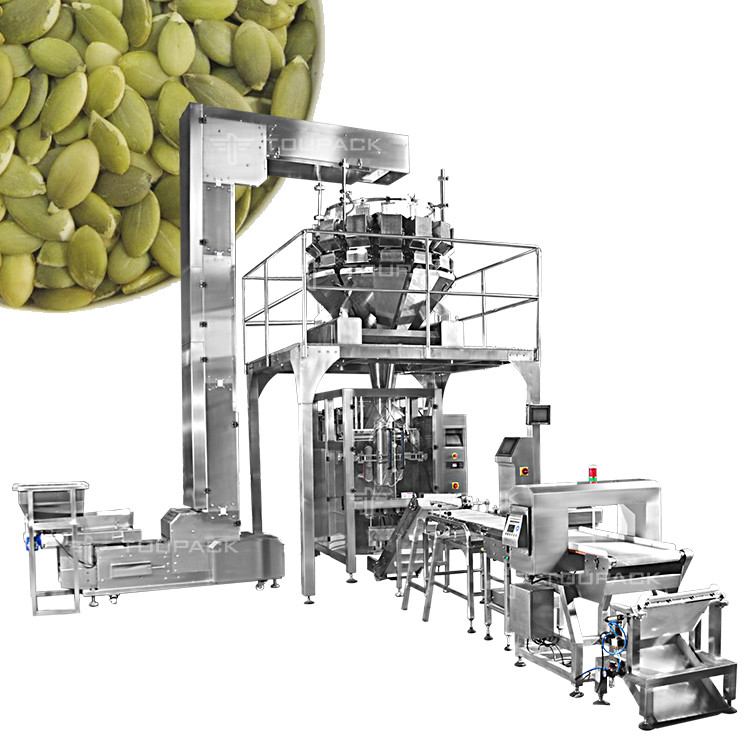

Solution:Z-Type Elevator+14 head multihead weigher+420 VFFS Packaging machine+Finished Product Conveyor
Target weight:35g
Weighing accuracy:±0.5-1g
Machine Feature
* Computerized touch screen, easy to adjust and operation, and easy to change products, with the exception appearance system,easily and rapidly to repair;
* Could automatically to finish making bags, sealing, printing, and optional functions
* Design with alarming for clipping material, door unclosed, rolled film in wrong position, no print tape, no rolled film, etc;
* The advanced design ensures that it is very convenient for adjustment, operation, and maintenance when different profession use it;
* It can support the use of various automatic metering equipment at home and abroad.
