Automatic Weight Checker Conveyor Check Weigher With Rejector System Belt Industrial Package Scale Check Weigher

Automatic Weight Checker Conveyor Check Weigher With Rejector System Belt Industrial Package Scale Check Weigher

Automatic Weight Checker Conveyor

Rejector System Belt Check Weigher

Industrial Package Scale Check Weigher

Place of Origin:

China

Brand Name:

TOUPACK

Certification:

CE,ISO9001

Model Number:

CW95

Contact Us
Request A Quote
Product Details
Product Name:
Check Weigher
Material:
SUS304 Stainless Steel
Customized Support:
OEM
Display:
Touch Screen
Type:
Conveyor Belt
Certificate:
CE
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
Wooden case
Delivery Time
According to the actual situation
Payment Terms
L/C, T/T,
Product Description

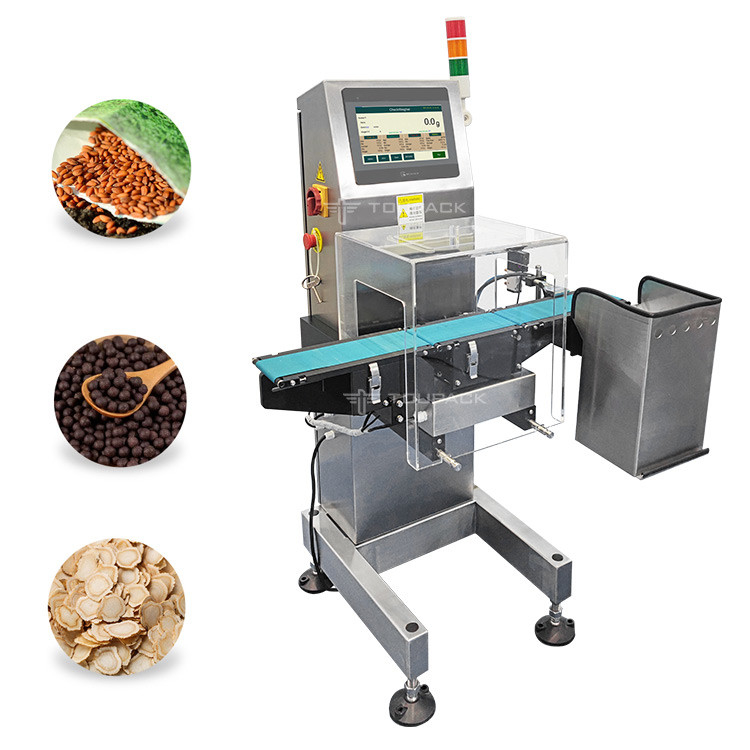

Automatic Weight Checker Conveyor Check Weigher With Rejector System Belt Industrial Package Scale Check Weigher



Automatic Weight Checker Conveyor Check Weigher With Rejector System Belt Industrial Package Scale Check Weigher 0







High-precision Weigher applicable for small measurement and high precision auantitative weighina of small aranular materials such astraditional Chinese medicine tablets, tea, seeds, chicken essence, chocolate beans and so on.







※Weighing range:5~200g

※Weighing accuracy:X(0.5)

※Minimum scale interval:0.01g

※Maximum speed:120bpm

※Hopper volume:0.3L / 0.5L









 Technical Parameters





Model

TY-ZHY142M05-05-11

Single hopper weighing range

5~200g

Weighing accuracy

X(0.5)

Minimum scale interval

0.01g

Maximum speed

120bpm

Hopper volume

0.3L/0.5L

Control system

MCU/PLC

HMI

7 inch touch screen







 Technical Features



1. Adopting high-precision digital sensor with high sampling accuracy.

2. Using high-precision AD chip and the latest optimised sampling algorithm toimprove weighing accuracy.

3. With manual zero function, automatic zero function, and dynamizero tracking function.

4. Multiple discharging function and multiple combination function. effectivelypreventing material blockage.

5. Intelligent fault detection. more convenient maintenance.

6. Weight counting function, counting function, and can be used at the same timto improve the accuracy of the equipment.





7. Support Ethernet communication, which can achieve digital anovisual management and assist in establishing unmanned factory.

8. The main feeding material adopts weighing detection, which accurately controlthe thickness of the material and ensures the weighing accuracy.

9. Special V-shaped wire vibration pan, to ensure uniform feeding.

10. 0.5L hopper, ultra-low vibration design, smoother opening and closing of the hopper.

11. Side-driven aluminium box, more accurate data collection anohigher weighing accuracy.

12. "Mouth" type chassis design, stable and rigid, shorter weighing stabilisation time.





Automatic Weight Checker Conveyor Check Weigher With Rejector System Belt Industrial Package Scale Check Weigher 1
