Name: High Accuracy X Ray Food Industry Line Foreign Matter Detection X-Ray Inspection System
Brand: GUANGDONG TOUPACK INTELLIGENT EQUIPMENT CO., LTD
SKU: TTX-2417K100
Price: 7,500.00 USD
Availability: InStock

Home > products > Food X Ray Inspection Systems >

High Accuracy X Ray Food Industry Line Foreign Matter Detection X-Ray Inspection System

X-Ray Inspection System

X-Ray Food Industry Line

Place of Origin:

Guangdong Zhongshan China

Brand Name:

TOUPACK

Certification:

Model Number:

TTX-2417K100

Request A Quote

High Accuracy X Ray Food Industry Line Foreign Matter Detection X-Ray Inspection System

Product Details

Detecting Width:

240mm

Detecting Height:

170mm

Transfer Speed:

10-70m/ Min

Application::

Food Processing Industry

Payment & Shipping Terms

Minimum Order Quantity

1 pcs

Packaging Details

Pollywood case

Delivery Time

3 - 30 days after payment arranged

MIni 17 Inch HMI Automated Food X Ray Inspection Systems 70m / Min High Speed

Get Best Price

video

17 Inch Touch Screen 150W Food X Ray Inspection Systems

Get Best Price

video

High Quality 17 Inch HMI Automated Food X Ray Inspector 70m / Min Food X Ray Inspection Systems

Get Best Price

video

IP66 100KV Food X Ray Inspection Systems Automatic X Ray Detector

Get Best Price

Contact Now

Product Description

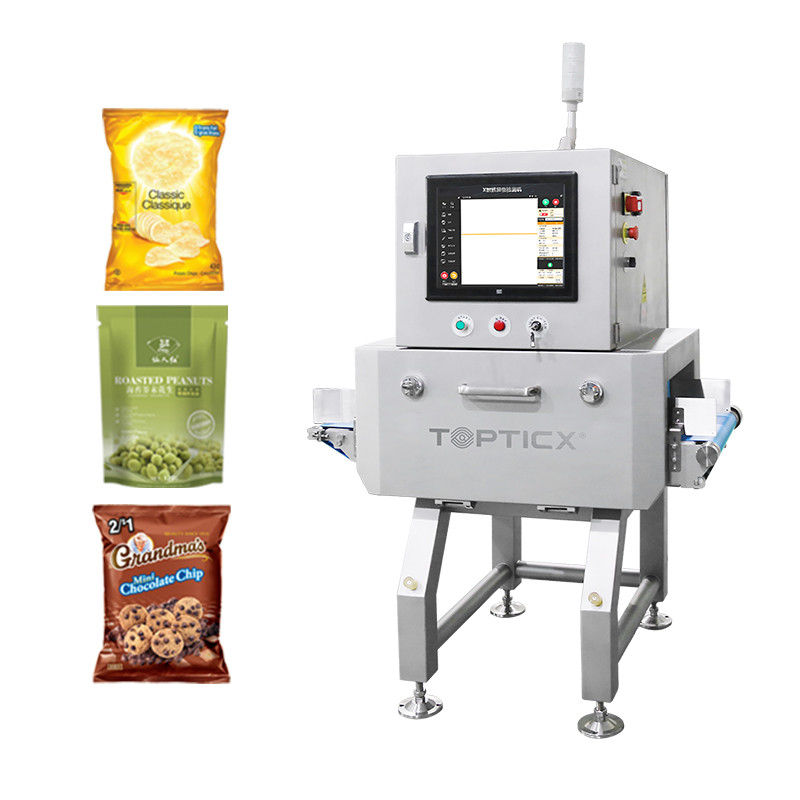

High Accuracy X-Ray Food Inspection System

Product Overview

Our precision X-ray inspection system detects foreign materials and defects in food processing, pharmaceutical, and chemical industries with exceptional accuracy. The system identifies metallic and non-metallic contaminants including glass, ceramics, stones, bones, hard rubber, and plastic.

Key Specifications

Detecting Width	240mm
Detecting Height	170mm
Transfer Speed	10-70m/min
Application	Food Processing Industry

Advanced Features

8-grade image processing for optimal product adaptability and stability
Specialized detection capabilities for edge shielding, desiccants, canned foods, and aluminum clamps
Compliance with US FDA and European CE standards for X-ray leakage
Built-in air conditioning and IP66-rated protection
Easy-to-dismantle design for thorough cleaning

Technical Specifications

Model	TTX-2417K100	TTX-4017K100	TTX-5026K100	TTX-6035K100
X-ray Light Source	150W/100KV	210W/100KV	350W/100KV
Detecting Width	240mm	400mm	500mm	600mm
Detecting Height	170mm	170mm	260mm	350mm
Accuracy	SUS ball Φ0.3mm, SUS wire Φ0.2*2mm
Transfer Speed	10-70m/min

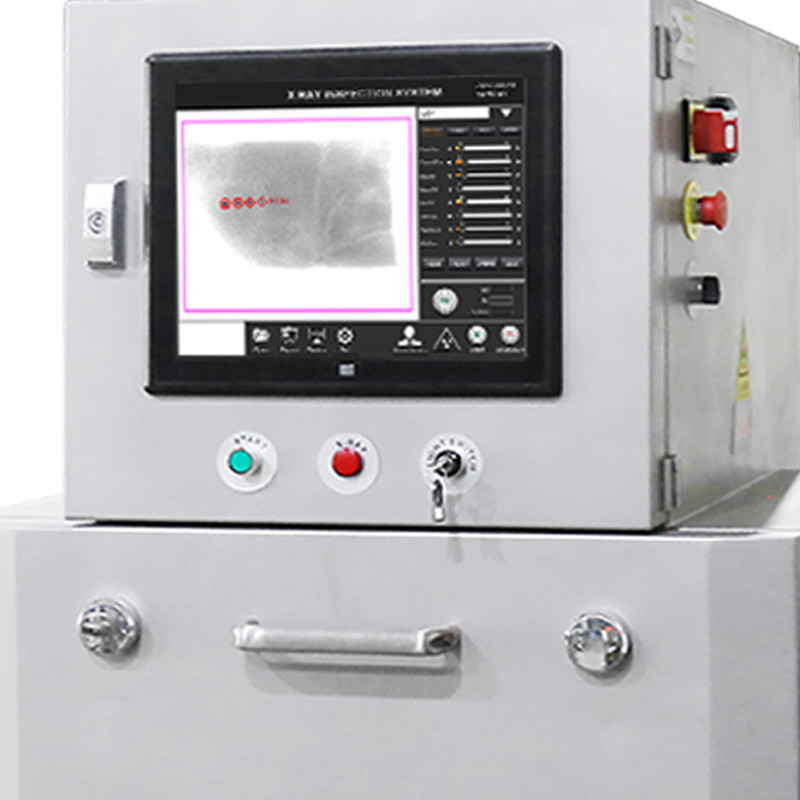

HMI	Germany 17 inch touch screen
Connectivity	LAN Port, USB Port
Working Environment	Temperature: -10℃~40℃ (Air conditioned cooling) Humidity: 30%~90% (Anti-humidity device)
X-ray Leakage	1 millisievert/hour
Protection Method	Lead-free protective curtain (easy disassembly)
Alarming Method	Acousto-optic alarming
Power Supply	AC220V ± 10% 50Hz(60Hz) 1.5kVA Max
Body Material	SUS304
