Place of Origin:
Guangdong Zhongshan China
Brand Name:
TOUPACK
Model Number:
TYA-MD3011

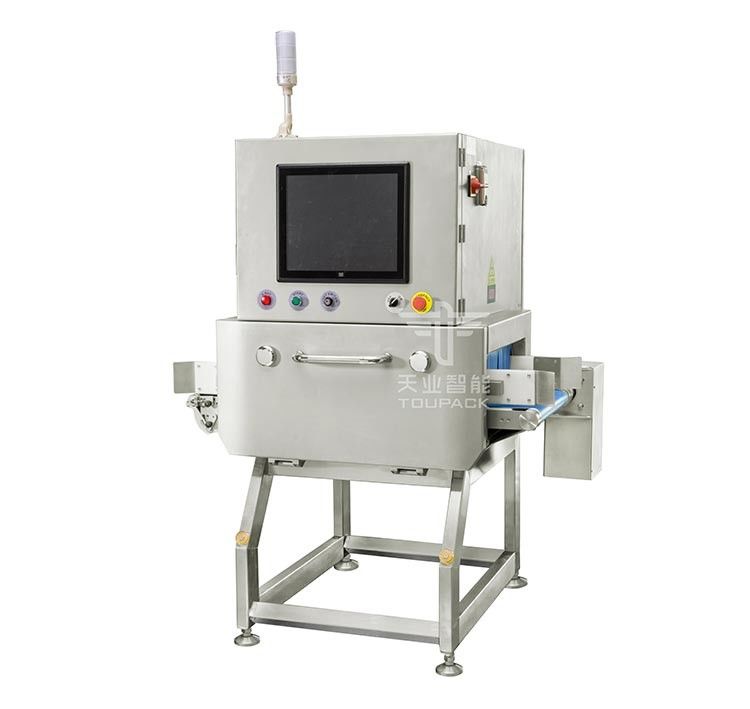

Food X Ray Inspection Systems
Application:
It is used for detecting metallic and non-metallic material and defects in food, chemical, pharmaceutical industry. such as glass. ceramics, stones, bones, hard rubber and plastic.
Main Function & Features:
1. Up to 8 grades of image processing to achieve the best product adaptability and stability.
2. Able to shielding edge, desiccant, canned food and aluminum clamp for ham sausage.
3. X-ray leakage meets US FDA and European CE standards
4. Air conditioning and IP66.
5. Easy to dismantle and clean.
Specifications:
| Model | TTX-2417K100 | TTX-4017K100 | TTX-5026K100 | TTX-6035K100 |
| X-ray Light Source | 150W/100KV | 210W/100KV | 350W/100KV | |
| Detecting Width | 240mm | 400mm | 500mm | 600mm |
| Detecting Height | 170mm | 170mm | 260mm | 350mm |
| Accuracy | SUS ball Φ0.3mm, SUS wire Φ0.2*2mm | |||
| Transfer speed | 10-70m/ min | |||
| HMI | Germany 17 inch touch screen | |||
| Connectivity | LAN Port, USB Port | |||
| Working environment | Working temperature:-10℃~40℃(Cooling method:Air conditioned cooling), Working humidity:30%~90%,No dewing (Humidity controlling: Anti-humidity device) |
|||
| X-ray Leakage | 1 millisievert / hour | |||
| Protection method | Lead-free protective curtain(easy for disassembling) | |||
| Alarming method | Acousto-optic alarming | |||
| Power Supply | AC220V ± 10% 50Hz(60Hz) 1.5kVA Max | |||
| Body Material | SUS304 | |||
