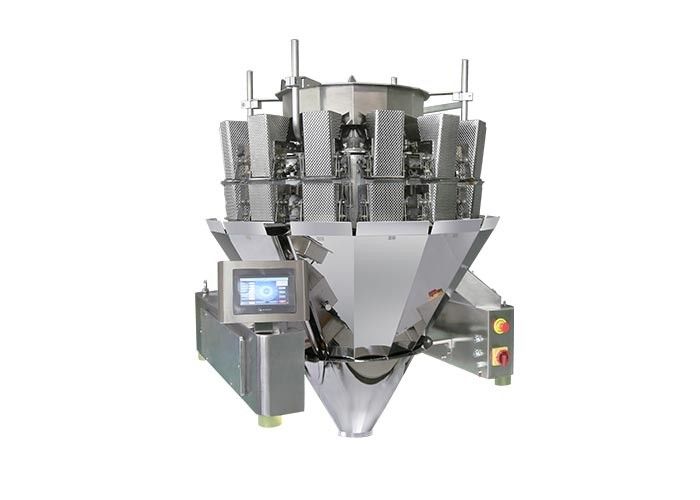

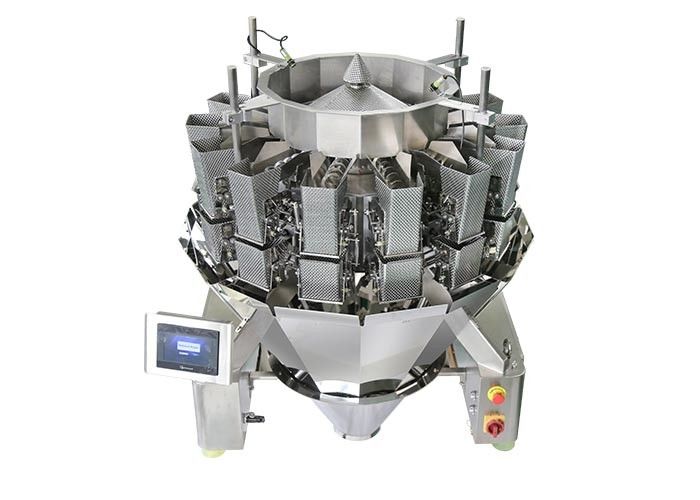

14 Head Screw Feeding Sticky Material MultiHead Weigher
Product Details
| Automatic Grade: | Automatic | Max. Weighing(one Hopper): | 1000g |
|---|---|---|---|
| Accuracy: | X(0.5) | Max. Speed: | 50 BPM |
| After Warranty Service:: | Video Technical Support, Online Support | Building Material:: | 304SUS Material |
| High Light: | Screw Feeding MultiHead Weigher,14 Head Sticky Material MultiHead Weigher,1000g Sticky Material MultiHead Weigher |
||
Product Description
Features:
1. Stainless steel waterproof IP65 machine frame; Dimple plate.
2. Screwing feeding system to ensure smooth discharge.
3. Rotary main top cone without screws outside, avoid blockage with bacteria.
4. Scraping hopper double doors to reduce time of closing doors.
5. 60 degree discharge chutes, ensure sticky products will not stay on the discharge chutes to affect
accuracy .
6. Protection device in low temperature to prevent electronic parts from damage in wet working
condition.(Option)
7. Improved MCU control system.
Application:
Widely used for weighing of irregular shape products and sticky food, such as fresh meat, small fishes, pickled
mustard tuber and string bean, etc.
Specifications:
| Serial | TY-1A-214-LG2 |
| Max. Weighing(one hopper) | 1000g |
| Accuracy | x(0.5) |
| Max. Speed | 50 BPM |
| Hopper Volume | 1.6L |
| Control System | MCU |
| HMI | 7"/10"color touch screen |
| Power Supply | 220V/110VAC±10% 50Hz/60Hz,2KW |
| Packing Dimension | 1,200(L)1,200(W)*1,600(H) |
| Net Weight | 380kg |
| Package weight | 420kg |
