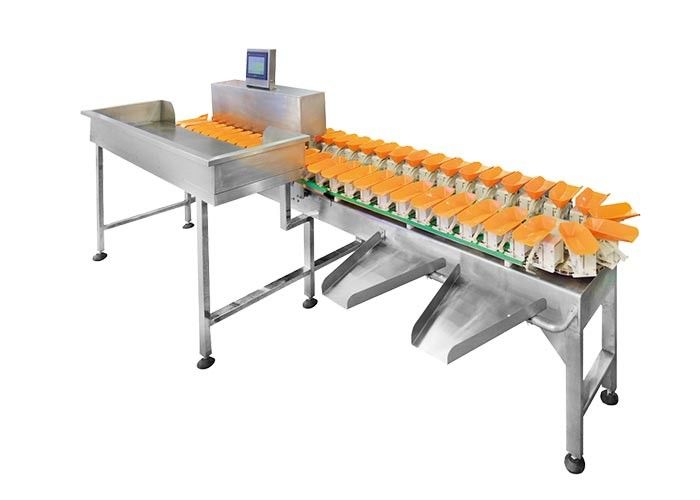

Circular Potato Tomato Grading Conveyor Belt Weight Sorting Machine

Circular Potato Tomato Grading Conveyor Belt Weight Sorting Machine

Circular Potato Tomato Grading Conveyor Belt Weight Sorting Machine

Product Details:

Place of Origin: Guangdong Zhongshan China
Brand Name: TOUPACK
Model Number: TY-CW-YP

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 10-25 working days
Payment Terms: T/T, L/C
Supply Ability: 30set per month
Contact Now
Detailed Product Description
Weighing Range:: 500g Control System:: High-speed A/D Controller
Pre-set Prod. No.:: 99 Reject Device:: Overturned Device
Sorting Accuracy:: ±0.3gx HMI:: 7'' Touch Screen
High Light:

Multi Weight Tomato Grading Machine

,

Potato Conveyor Belt Weight Sorting Machine

,

Circular Conveyor Belt Weight Sorting Machine

Circular Multi-Weight Sorting Machine for Fruit, Potato Tomato Grading Machine



Application:



Applicable for multi-weight sorting of poultry, marine as well as agricultural products, such as chicken legs / wings / meat, trepang, abalone, small fish, shrimp, Chinese medical herbs, fruits and many other products with the size within 12*18CM and the weight within 500g (1 ~ 14 grade sorting), regardless of their shape.



Main Function & Features:



1. Reporting Function: Built-in report statistics to generate Excel format; able to automatically generate several kinds of live data reports to make statistics on single or total weight of the discharge hopper to control production status at all times.

2. USB can store more than one year of data.

3. Interface Function: Reserved standard interface for easy data management. Connecting with PC or other smart communication tools.

4. Centralized Control: One PC / HMI can control multiple sorting machines.

  5. Water Proof: Waterproof design for anti-erosion from seawater.

6. Highly Efficient and Economic: Multi-sorting and automatic weight checking for labor cost saving and efficiency improving.

7. Versatility: Standard machine structure and HMI program design can accomplish weight sorting with wide range of products.

8. Easy to Switch: Able to store multi formula to switch to different product specifications.

  9. Easy Panel Operation: 7” color touch screen with smart and humanized design.

 10. Engineering Plastic Net Chain: Largely improve conveying lifetime, free of maintenance.

 11. Speed Adjusting: Frequency conversion control motor to adjust the speed as required.

 12. High Speed & Accuracy: Equipped with high accuracy digital load cell for quick and accurate weight sorting.

 13. Customization: Sorting grade can be customized per customer’s requirement.

 14. Zero Tracking: Manual or automatic reset as well as dynamic zero tracking.



Specifications:



Model TY-CW-YP
Weighing Range ≤500g
Sorting Accuracy ±0.3gx
Sorting Speed 300 times/min
HMI 7” color touch screen
Product Size 180(L) *120(W)mm
Control System High-speed A/D controller
Pre-set Prod. No. 99
Power Supply AC220V±10% 50HZ/60HZ, 0.6KW
Machine Dimension 3,592(L)*1,174(W)*1,508(H)mm
Reject Device Overturned device
Working Condition Temperature: 0℃~40℃; Humidity: 30%~95%
