Product Details:
|
| Automatic Grade: | Automatic | Max. Weighing(one Hopper): | 1000g |
|---|---|---|---|
| Accuracy: | X(0.5) | Max. Speed: | 50 BPM |
| After Warranty Service:: | Video Technical Support, Online Support | Building Material:: | 304SUS Material |
| High Light: | 14 Head Sticky Material MultiHead Weigher,Sticky Material MultiHead Weigher,14 Head Sticky Food MultiHead Weigher |
||

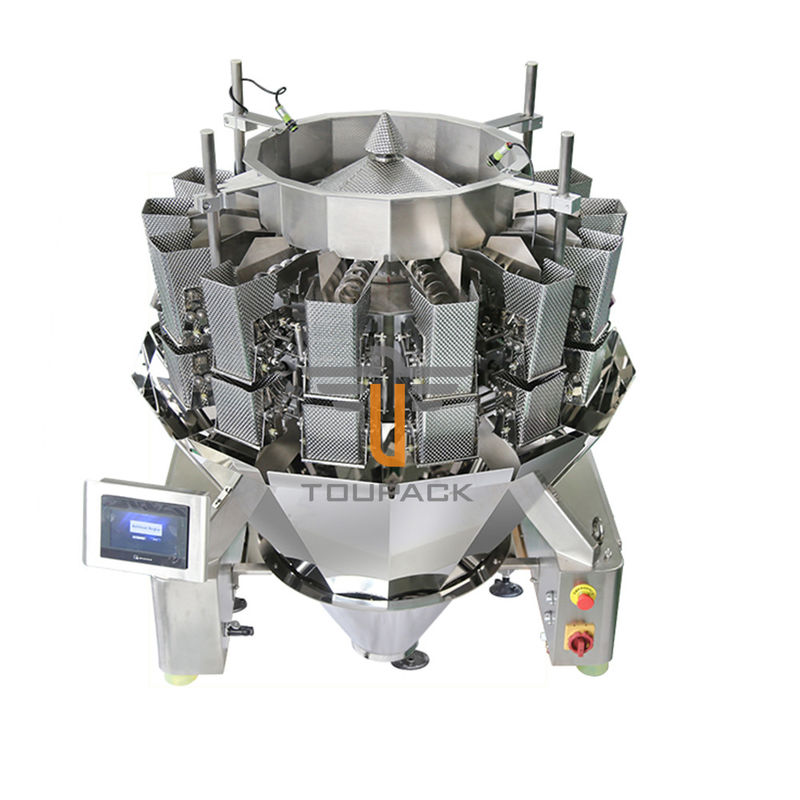

14 Head Automatic Multihead Weigher for Sticky Food Weighing Machine
Features:
1. Stainless steel waterproof IP65 machine frame; Dimple plate.
2. Screwing feeding system to ensure smooth discharge.
3. Rotary main top cone without screws outside, avoid blockage with bacteria.
4. Scraping hopper double doors to reduce time of closing doors.
5. 60 degree discharge chutes, ensure sticky products will not stay on the discharge chutes to affect
accuracy .
6. Protection device in low temperature to prevent electronic parts from damage in wet working
condition.(Option)
7. Improved MCU control system.
Application:
Sticky or wet products.
1. Whole machine IP65 water proof, easy to clean and wash by water.
2. With excellent compatibility and easy using with other packing equipments.
3. With stable 10-14 bucket structure, to choose the best combination instantaneously from abundant weight combinations by computer.
4. With instantaneous reaching of correct calculating by high-precision load cell.
5. With 11 languages to choose and LCD screen
6. The open & close speed of the material dipper cover can be finely regulated according to the features of the measured material to prevent crashing and damage
7. All the parts touching the material are made by 304 stainless steel, neatness and hygiene.
8. Measuring method: Load cell
9. Way of drive: Driven by step motor
10. Form of bucket: Double-row non-memory buckets
11. Preset function: Max50choices, easy to keep your products and weight data for future use.
Net weight: 260kg, gross weight: 300kg
Packing size: 108X108X125cm
Technical:
Each dump weighing range 8-1000g
Combination capacity Max 3000ml
Highest speed 60 bags/min
Length of material Max 150mm
Each bag error 0.1-1g
Weighing accuracy 0.1-1g
Mode of driving Step motor
Form of dipper Double-row non-memory dippers
Preset function Max 50 choices
Material The part contacting materials is made of 304 stainless steel
Level control Photoelectricity(pass type)
Power source AC200/220V± 10% 1.5kVA
Dimension 950(L) * 950(W) *1020(H)mm
Specifications:
| Serial | TY-1A-214-LG2 |
| Max. Weighing(one hopper) | 1000g |
| Accuracy | x(0.5) |
| Max. Speed | 50 BPM |
| Hopper Volume | 1.6L |
| Control System | MCU |
| HMI | 7"/10"color touch screen |
| Power Supply | 220V/110VAC±10% 50Hz/60Hz,2KW |
| Packing Dimension | 1,200(L)1,200(W)*1,600(H) |
| Net Weight | 380kg |
| Package weight | 420kg |
