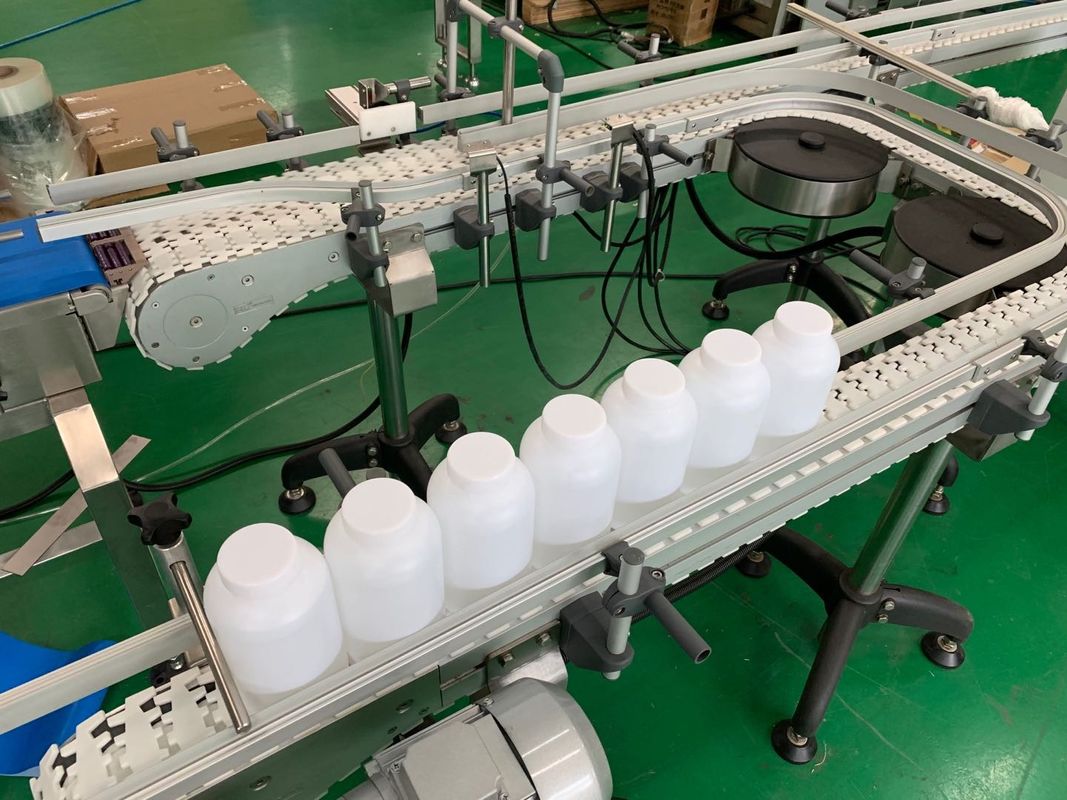

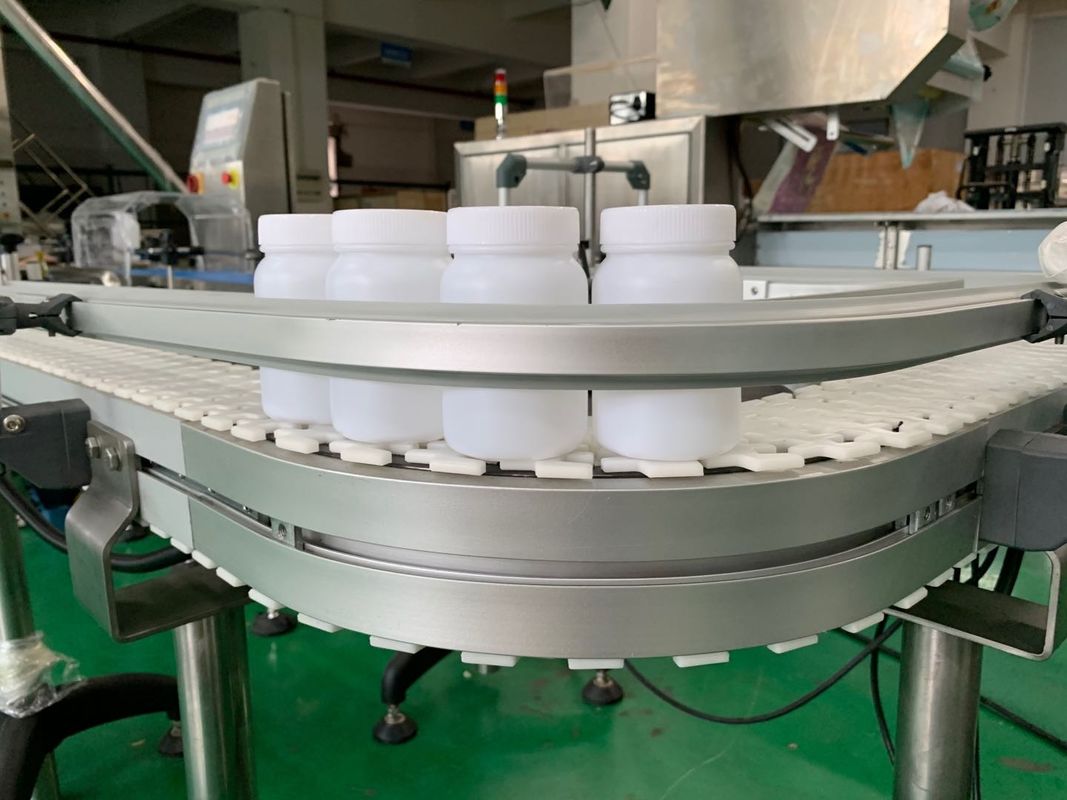

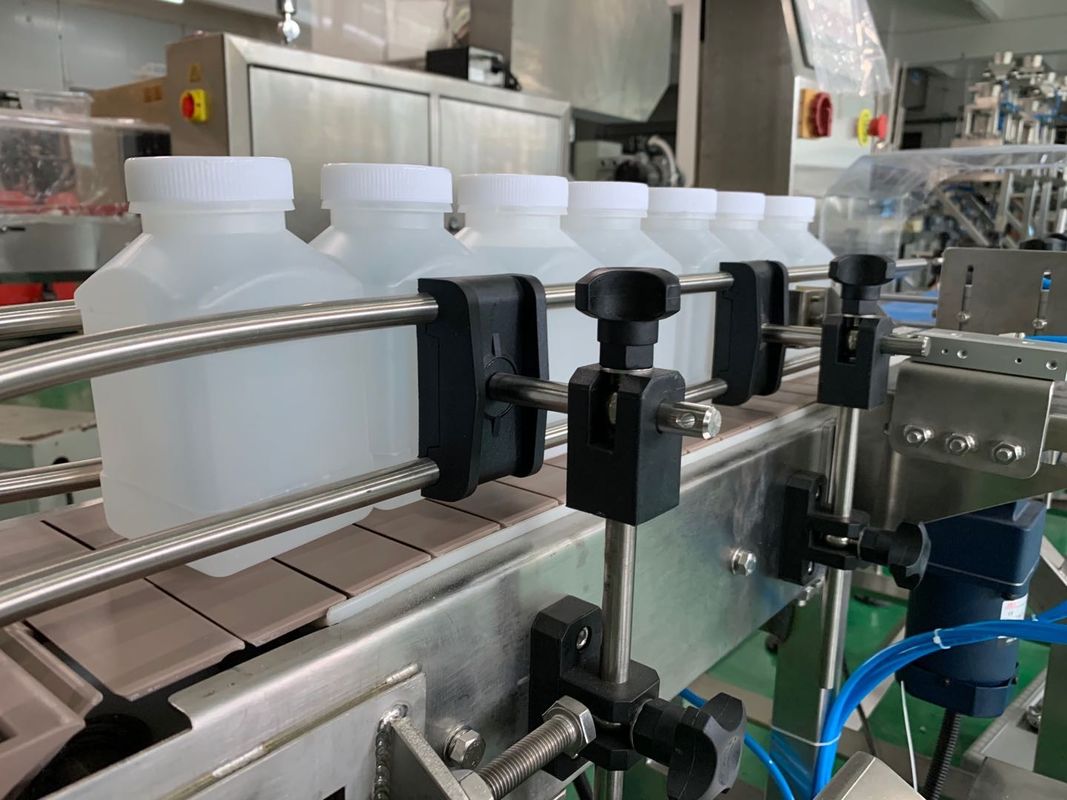

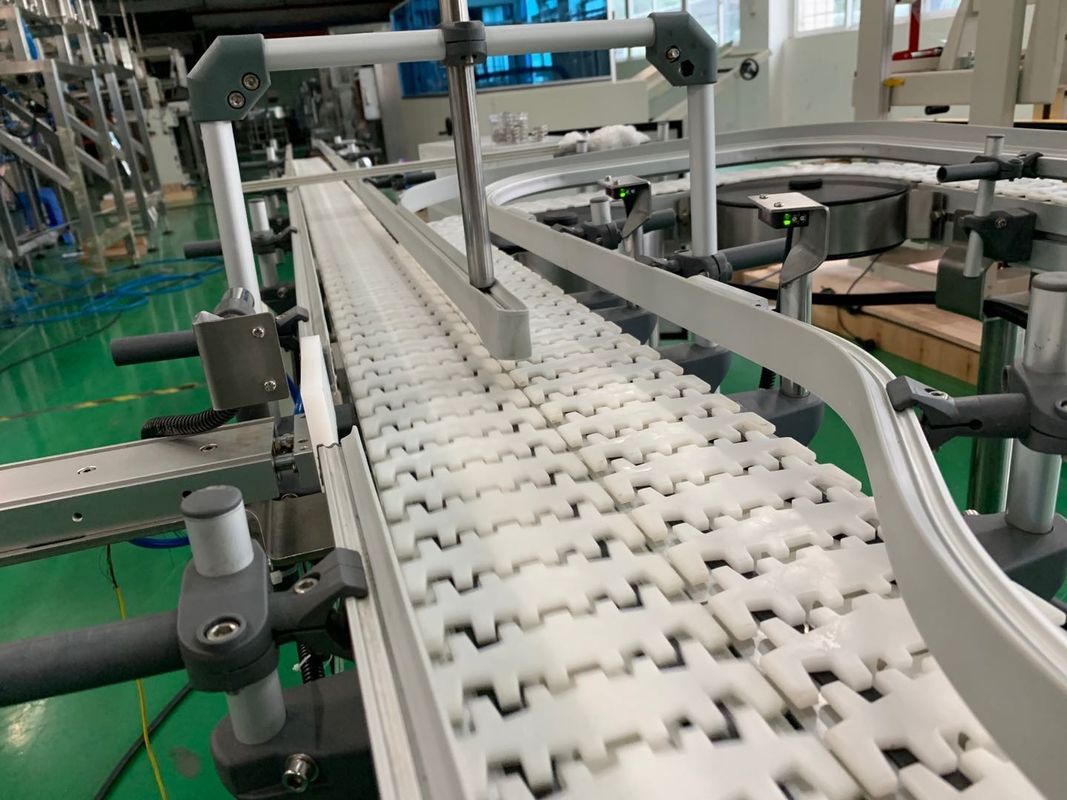

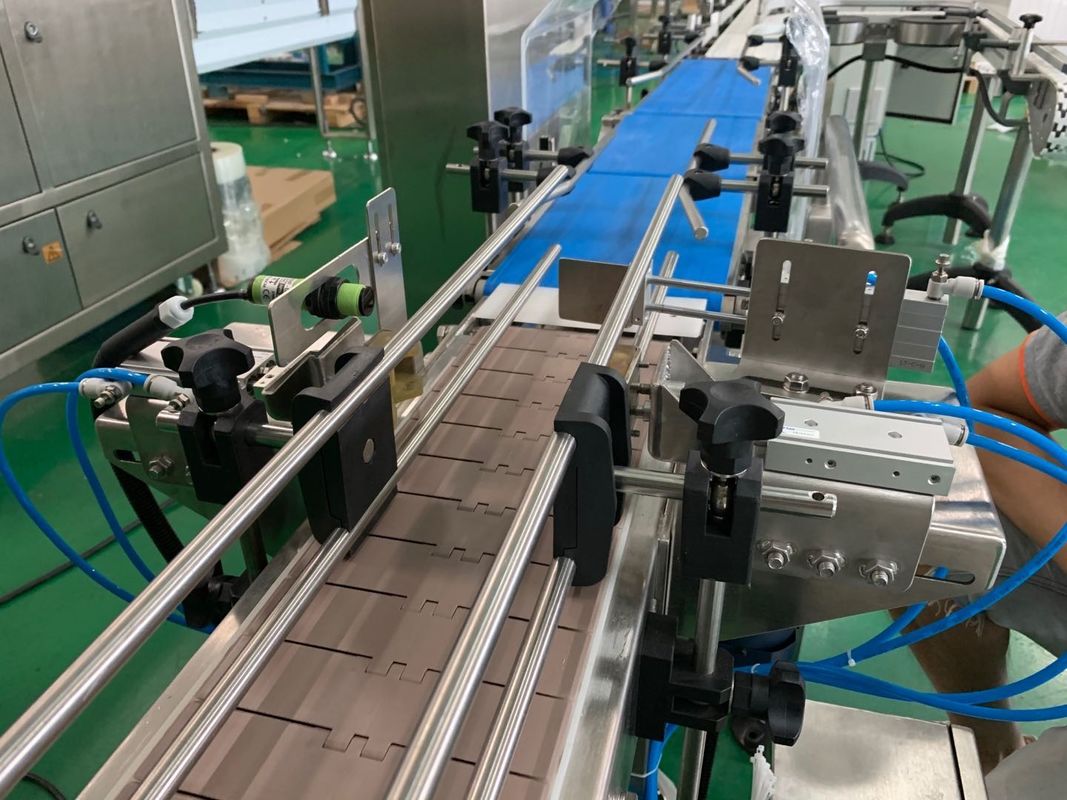

250CC PE Vitamin Bottle 107*60mm Check Weigher
Place of Origin: | Guangdong Zhongshan China |
---|---|
Brand Name: | TOUPACK |
Certification: | CE |
Model Number: | TY-CW220 |
Minimum Order Quantity: | 1 |
Price: | Negotiable |
Packaging Details: | Wooden case packaging, 1250L*900W*1530H(mm), gross weight 120kg |
Delivery Time: | 10-25 working days |
Payment Terms: | T/T, L/C |
Supply Ability: | 100set per month |
Material:: | SUS304 Steel | Driving System:: | Step Motor |
---|---|---|---|
Control Panel:: | 10.1 Inch Touch Screen | Transport Package:: | Wooden Case |
HS Code:: | 84233020 | Max Weight: | 1000g |
Max Speed: | 120 Bottles Per Min | Accuracy: | ±0.5g |
Belt Width: | 220mm | Belt Length: | 400mm |
Control System: | High Speed A/D | Machine Height: | 750±50mm |
High Light: | 250CC Automatic Check Machine,107*60mm Check Weigher,Vitamin Bottle Check Weigher |
Granule Weighing Machine For Seed Coffee Bean Advanced Combination Weigher
Application:
It is suitable for sorting finished product such as candy bag , bottle, food box.
Features :
1. High accuracy and tailored load cell.
2. Intelligent multi-sampling stable mode, higher accuracy.
3. Intelligent alarm diagnosis.
4. Automatic zero tracking.
5. Modular and CAN bus technology, more efficient and stable
6. Modbus Industry communication protocol
7.VFD adopted to adjust speed continuosly with large regulating range.
Specifications:
Model | TYA-CW90 | TYA-CW120 | TYA-CW220 |
Weighing Range | 200g | 200g | 1000g |
Weighing Accuracy | ±0.05g~±0.15g | ±0.2g | ±0.5g |
Weighing Resolution | 0.02g | 0.1g | 0.1g |
Max Speed | 200 WPM | 150 WPM | 120 WPM |
Belt Width | 95mm | 120mm | 220mm |
Weighing Belt Length | 200mm | 200mm | 400mm |
Infeed/Outfeed Belt Lenght | 300mm | 200mm/380mm | 400mm/380mm |
Power Supply | AC220V ±10%/1P/0.1KW | AC220V ±10%/1P/0.2KW | AC220V ±10%/1P/0.2KW |
Control System | High speed A/D sampling controller | High speed A/D sampling controller | High speed A/D sampling controller |
Pre-set Prod. No. | 99 | 99 | 99 |
Belt Height | 800±50mm | 750±50mm | 750±50mm |
Optional Rejector | Air blower | Air blower | Air Blower/ Swing Arm/ Pusher |
